Specifications
Brand Name :
Sussman
Model Number :
SM-PBR
Certification :
CE ISO SGS
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T L/C
Supply Ability :
30 sets per months
Delivery Time :
75 days after deposit
Packaging Details :
Standard packing
Type :
R/PBR Roof Sheet Roll Forming Machine
Hydraulic Power :
4KW
Roller Statione :
About 20 stations
Main Motor Power :
7.5kw
Way Of Drive :
1.2 inch single chain
Working Speed :
0-30m/min
Description

26-29 Gauge 30M/Min R/PBR Panel Metal Roof Sheet Roll Forming Machine

R Panel is a type of metal roofing panel commonly used in commercial and industrial buildings. It has a high rib design with deep, wide channels that provide excellent water shedding capabilities. R Panel is known for its durability, strength, and resistance to harsh weather conditions. It is typically installed in a vertical orientation and is available in a variety of colors and finishes.


PBR Panel, which stands for Purlin Bearing Rib, is another type of metal roofing panel. It has a similar rib design as the R Panel but with additional bearing ribs that provide extra strength and support. The bearing ribs allow the panel to span across purlins or structural supports, reducing the need for additional framing. PBR Panel is commonly used in agricultural, commercial, and industrial applications due to its strength and ability to handle heavy loads.
26-29 Gauge 30M/Min R/PBR Panel Metal Roof Sheet Roll Forming Machine

Technical parameter:

Item NO

Description

Offered specification

1.0 Roll forming machine
1.1 Rolling speed 0-30m/min(not include cutting time)
1.2 Rolling thickness 0.3mm-0.8mm
1.3 Raw material Color painted coils, Aluminium, Zinc, Galvanized
1.4 Main Motor 7.5KW
1.6 Dimension About 8000×1600×1200(mm)
1.7 Effective width 914mm
1.8 Feeding Coil width 1092mm
1.9 Roller stations

About 20 stations

1.10 Roller material 45#forge steel, coated with chrome
1.11 Shaft diameter Φ80mm
1.12 Transmission By chain 1.2 inch
1.13 Material of chain 45# forged steel with frequency quenching, 12A
1.14 Material of cutting Cr12Mov with quench HRC58-62°
1.15 Tolerance 10m+-1.5mm
1.16 Hydraulic station 4kw


Machine List:

No. Name Quantity
1 10 ton hydraulic decoiler 1 set
2 Main roll forming machine 1 set
3 Hydrulic station 1 set
4 Servo following cutting 1 set
5 Control box 1 set
6 Out table 1 set


Working flow

26-29 Gauge 30M/Min R/PBR Panel Metal Roof Sheet Roll Forming Machine

Profile Drawing

26-29 Gauge 30M/Min R/PBR Panel Metal Roof Sheet Roll Forming Machine

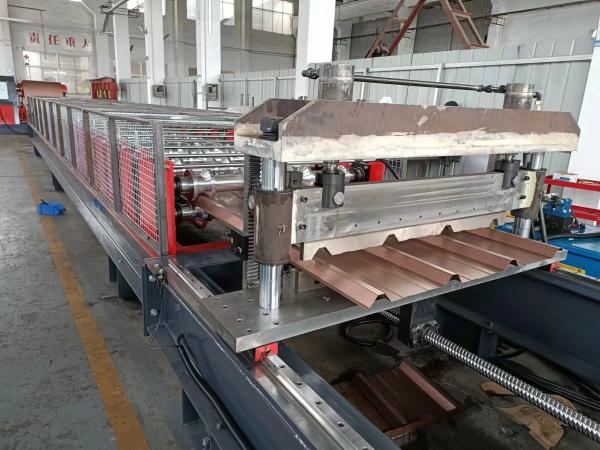

Machine Shows

26-29 Gauge 30M/Min R/PBR Panel Metal Roof Sheet Roll Forming Machine

26-29 Gauge 30M/Min R/PBR Panel Metal Roof Sheet Roll Forming Machine
26-29 Gauge 30M/Min R/PBR Panel Metal Roof Sheet Roll Forming Machine

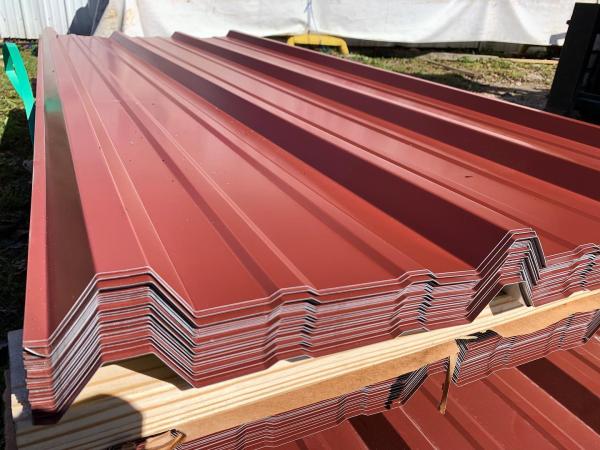

Application

26-29 Gauge 30M/Min R/PBR Panel Metal Roof Sheet Roll Forming Machine

26-29 Gauge 30M/Min R/PBR Panel Metal Roof Sheet Roll Forming Machine

Company Introduction

Sussman Machinery (wuxi) Co., Ltd. is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 50 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.

Our service

1. Professional mechanical background sales for better undestanding customer's need
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc

Topic

Metal roof sheets are a popular choice for both residential and commercial buildings due to their durability, longevity, and aesthetic appeal. Here are some key points about metal roof sheets:

Types of Metal Roof Sheets
1. Corrugated Metal Sheets:
- Recognizable by their wavy pattern.
- Often used for agricultural buildings and sheds.

2. Standing Seam Metal Roofs:
- Characterized by raised seams running vertically from the roof's ridge to the eaves.
- Common in modern architectural designs.

3. Metal Shingles:
- Mimic the appearance of traditional roofing materials like slate, wood, or tile.
- Offer a more classic look while providing the benefits of metal roofing.

Materials
- Steel:
- Often coated with a layer of zinc (galvanized) or a mix of zinc and aluminum (Galvalume) to prevent rust.
- Durable and cost-effective.
- Aluminum:
- Lightweight, resistant to rust, and ideal for coastal areas.
- More expensive than steel.
- Copper:
- Offers a distinctive aesthetic and develops a patina over time.
- Very durable but also one of the most expensive options.
- Zinc:
- Long-lasting and self-healing, meaning scratches will mend over time.
- Like copper, it's quite expensive.

Benefits
- Durability:
- Metal roofs can last 40-70 years, depending on the material.
- Weather Resistance:
- Can withstand high winds, rain, snow, and even fire.
- Energy Efficiency:
- Reflects solar radiant heat, reducing cooling costs.
- Low Maintenance:
- Requires less maintenance compared to traditional roofing materials.

Considerations
- Initial Cost:
- Higher upfront cost compared to asphalt shingles.
- Noise:
- Can be noisier during rain or hailstorms, although proper insulation can mitigate this.
- Expansion and Contraction:
- Metal expands and contracts with temperature changes, which can lead to issues if not properly installed.

Installation
Proper installation is crucial to ensure the longevity and performance of a metal roof. It is recommended to hire experienced professionals who understand the specific requirements of metal roofing systems.

Conclusion
Metal roof sheets offer a robust, long-lasting, and aesthetically versatile roofing option suitable for a wide range of applications. Whether for residential homes, commercial buildings, or agricultural structures, the various types and materials available can meet diverse needs and preferences.
