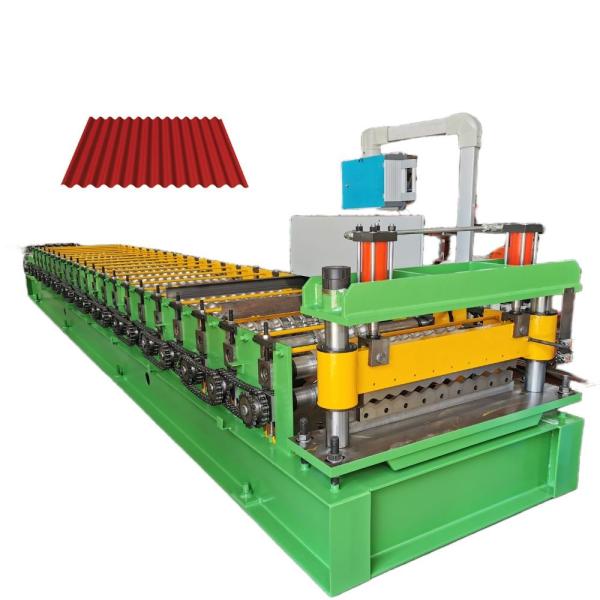

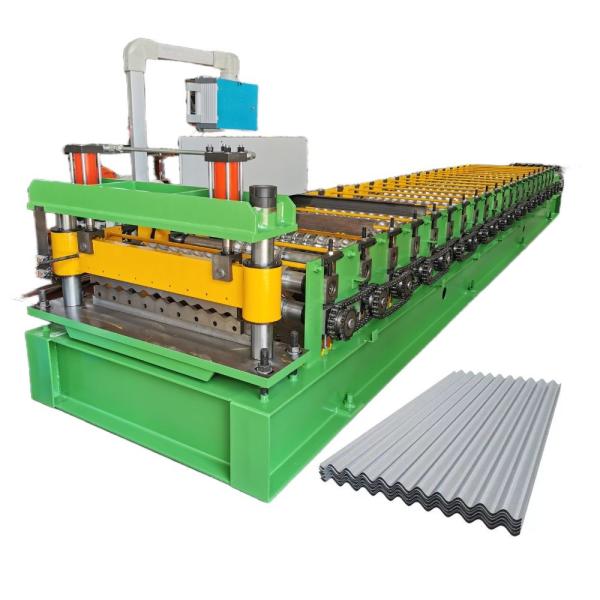

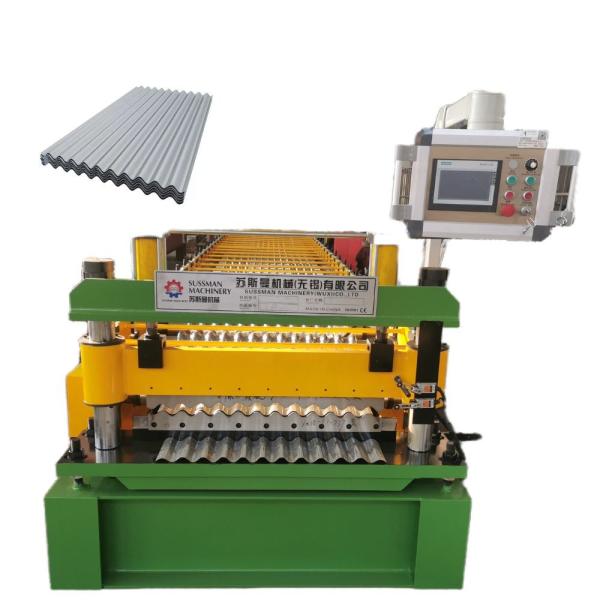

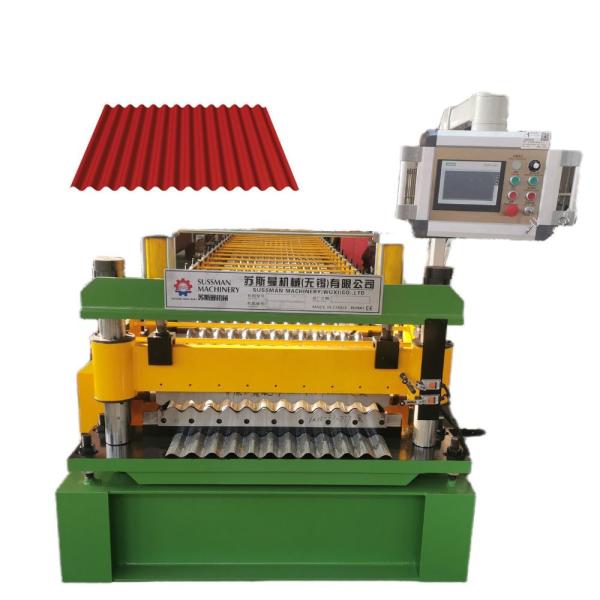

836mm Round Wave Shaped Australia Popular Corrugated Roof Sheet Roll Forming Machine
836mm Round Wave Shaped Australia Popular Corrugated Roof Sheet Roll Forming Machine
836mm Round Wave Shaped Australia Popular Corrugated Roof Sheet Roll Forming Machine
836mm Round Wave Shaped Australia Popular Corrugated Roof Sheet Roll Forming Machine
836mm Round Wave Shaped Australia Popular Corrugated Roof Sheet Roll Forming Machine
836mm Round Wave Shaped Australia Popular Corrugated Roof Sheet Roll Forming Machine
836mm Round Wave Shaped Australia Popular Corrugated Roof Sheet Roll Forming Machine
836mm Round Wave Shaped Australia Popular Corrugated Roof Sheet Roll Forming Machine
Specifications
Brand Name :
Sussman
Model Number :
SM-RP
Certification :
CE ISO SGS
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T L/C
Supply Ability :
30 sets per months
Delivery Time :
75 days after deposit
Packaging Details :
Standard packing
Type :
Round Wave Corrugated Roll Forming Machine
Hydraulic power :
4Kw
Roller statione :
18 stations
Main Motor Power :
7.5kw
Way Of Drive :
1.2 inch single chain
Description

836mm Round Wave Shaped Australia Popular Corrugated Roof Sheet Roll Forming Machine


Roofing system roll forming machine has a big range of metal sheet profiles. It includes trapezoidal panel, PV-4, PV-5, corrugated panel, roof tile panel, step glazed tile, metal deck panel, standing seam panel, ridge cap, rain gutter, double layer/ two layer, K span panel and ridge cap machine. Its products are widely used in roof and wall system in workshop construction and housing construction.

The normal machinable thickness range of our roof panel roll forming machine is 0.3mm-0.8mm, working raw material is Aluminum, PPGI, Galvanized steel, Galvalume steel etc. We design the machine according to your drawing, specially the pitch and height of each wave. This machine is used to form the pre-painted sheet/GI material to various roofing of the projects such as sports center, exhibition center, subway project, airport and stadium etc.

Different countries has different its own commonly used profiles and name. Here are some popular drawing profiles selected by our customers:
U-Panel is an exposed fastened wall and roof panel. With a ¾” (approximate) rib height and 6” on center rib spacing, U-panel offers a lower profile and softer appearance than R-Panel or Multi-Rib. U-Panel is widely utilized as a liner panel or partition wall.

Technical parameter:

Item NO

Description

Offered specification
1.0 Roll forming machine
1.1 Rolling speed 12-15m/min(not include cutting time)
1.2 Rolling thickness 0.3mm-0.8m
1.3 Raw material Color painted coils, Aluminium, Zinc, Galvanized
1.4 Main Motor 7.5KW
1.6 Dimension About 8000×1600×1200(mm)
1.7 Effective width 836mm
1.8 Feeding Coil width 1000mm
1.9 Roller stations

About 18 stations
1.10 Roller material 45#forge steel, coated with chrome
1.11 Shaft diameter Φ76mm
1.12 Transmission By chain 1.2 inch
1.13 Material of chain 45# forged steel with frequency quenching, 12A
1.14 Material of cutting Cr12Mov with quench HRC58-62°
1.15 Tolerance 10m+-1.5mm
1.16 Hydraulic station 4kw


Machine List:

5 tons passive de-coiler
1 set
Main roll forming machine
1 set
PLC Control box
1 unit
Hydraulic station
1 unit
Safety cover
1 set
Spare parts
1 set


working flow

836mm Round Wave Shaped Australia Popular Corrugated Roof Sheet Roll Forming Machine

Profile Drawing

836mm Round Wave Shaped Australia Popular Corrugated Roof Sheet Roll Forming Machine

Machine Shows

836mm Round Wave Shaped Australia Popular Corrugated Roof Sheet Roll Forming Machine
836mm Round Wave Shaped Australia Popular Corrugated Roof Sheet Roll Forming Machine

Application
836mm Round Wave Shaped Australia Popular Corrugated Roof Sheet Roll Forming Machine

836mm Round Wave Shaped Australia Popular Corrugated Roof Sheet Roll Forming Machine

836mm Round Wave Shaped Australia Popular Corrugated Roof Sheet Roll Forming Machine
