0.6mm -1.2mm Galvanized Steel Rolling Shutter Door Bottom Steel Profile Roll Forming Machine
0.6mm -1.2mm Galvanized Steel Rolling Shutter Door Bottom Steel Profile Roll Forming Machine
0.6mm -1.2mm Galvanized Steel Rolling Shutter Door Bottom Steel Profile Roll Forming Machine
0.6mm -1.2mm Galvanized Steel Rolling Shutter Door Bottom Steel Profile Roll Forming Machine
0.6mm -1.2mm Galvanized Steel Rolling Shutter Door Bottom Steel Profile Roll Forming Machine
0.6mm -1.2mm Galvanized Steel Rolling Shutter Door Bottom Steel Profile Roll Forming Machine
Specifications
Brand Name :
Sussman
Model Number :
SM-OP
Certification :
SGS.ISO,CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
60days
Packaging Details :
standard packing film and steel
material thickness :
0.6-1.2mm galvanzied steel
Forming stations :
about 23 stations
Roller material :
45# high grade Steel
Dirve system :
Chain drive
Forming speed :
0-12m/min
Machine weight :
about 6 tons
Cutting method :
stop saw cutting
Warranty :
one year
Description

0.6mm -1.2mm Galvanized Steel Rolling Shutter Door Bottom Steel Profile Roll Forming Machine

Machine Technical Data

1.Suitable material Color steel sheet , galvanized steel sheet,aluminum sheet
2.Installation Dimension (L*W*H): 9.5m*0.8m*1.2m
3.Main motor power 2*5.5KW
4.Hydraulic station power 4KW
5.Thickness of material 0.6-1.2mm
6.Diameter of principal axis Φ60
7.Material expand width as profile
8.Electric tension 380V 3phase 50HZ or as the customer's requirements
9.Material of roller High grade Gcr15# forged steel plated with hard chrome plating
10.Controlling system PLC
11.Processing speed 8-12m/min
12.Processing precision within +-1.00mm (depend on design)
13.Material of cutting blade Cr12 mould steel with quenched treatment
14.Kind of drive 1 inch chain
15.Roller station 23 Rollers
16.Roller material high grade 45#steel; Cr12 quenching
17. Leak frame load-bearing 6T

Production Line Machine List

Serial No.

Commodity & Description

Quantity

1

3T manual uncoiler

1 set

2

feeding guiding

1 set

3

Main roll forming machine

1 set

4

Output table

1 set

5

Main drive gear box

1 set

6

Saw cutting

1 set

7

Controlling system (including cabinet)

1 set

8

Water cooling system

1 set

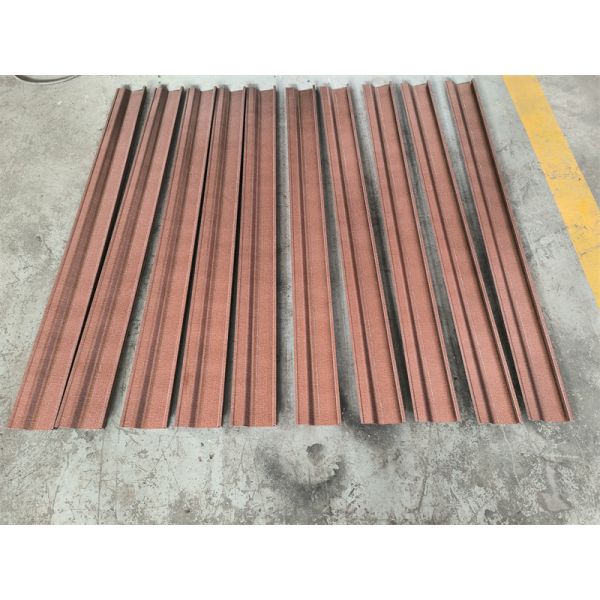

Standard Profile

Steel bottom profile is used for rolling shutter, it is most T type bottom and customized steel profile bottom

0.6mm -1.2mm Galvanized Steel Rolling Shutter Door Bottom Steel Profile Roll Forming Machine

0.6mm -1.2mm Galvanized Steel Rolling Shutter Door Bottom Steel Profile Roll Forming Machine

Our Exhibition

0.6mm -1.2mm Galvanized Steel Rolling Shutter Door Bottom Steel Profile Roll Forming Machine0.6mm -1.2mm Galvanized Steel Rolling Shutter Door Bottom Steel Profile Roll Forming Machine

Loading pictures

0.6mm -1.2mm Galvanized Steel Rolling Shutter Door Bottom Steel Profile Roll Forming Machine


The machine photo

0.6mm -1.2mm Galvanized Steel Rolling Shutter Door Bottom Steel Profile Roll Forming Machine


1. We can produce the special machine,send your drawing to us,we can design for you.

2. We provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
3.The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations.
