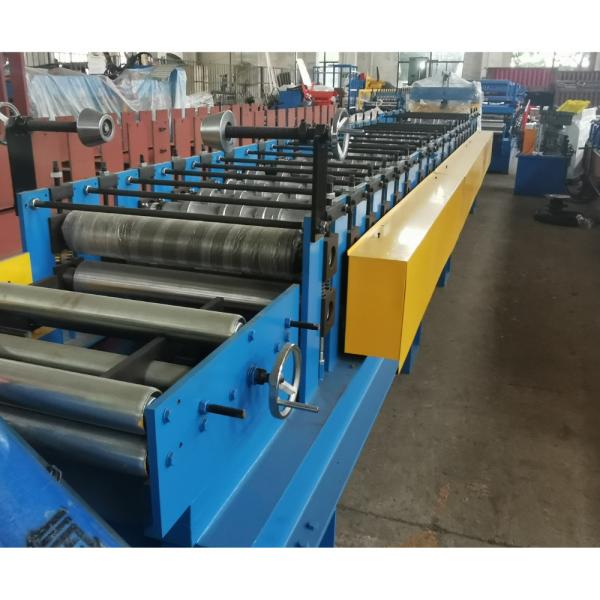

Aluminum Galvalume Coverage 12-18Clip Lock 175 150 Standing Seam Roll Forming Machine
Aluminum Galvalume Coverage 12-18Clip Lock 175 150 Standing Seam Roll Forming Machine
Aluminum Galvalume Coverage 12-18Clip Lock 175 150 Standing Seam Roll Forming Machine
Aluminum Galvalume Coverage 12-18Clip Lock 175 150 Standing Seam Roll Forming Machine
Aluminum Galvalume Coverage 12-18Clip Lock 175 150 Standing Seam Roll Forming Machine
Aluminum Galvalume Coverage 12-18Clip Lock 175 150 Standing Seam Roll Forming Machine
Aluminum Galvalume Coverage 12-18Clip Lock 175 150 Standing Seam Roll Forming Machine
Aluminum Galvalume Coverage 12-18Clip Lock 175 150 Standing Seam Roll Forming Machine
Specifications
Brand Name :
Sussman
Model Number :
RF-PU
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 SET
Price :
negotiable
Payment Terms :
TT
Supply Ability :
10 sets/month
Delivery Time :
50 days after deposit
Packaging Details :
Film nad steel
Type :
Snap Lock Roll Forming Machine
Forming station :
about 22-24 stands
Forming speed :
10m/min
Forming thickness :
0.3-0.8mm
Description

Aluminum Galvalume Coverage 12"-18"Snap Lock 175 150 Standing Seam Roll Forming Machine

Standing seam roof panels have been used on roofs of traditional and contemporary homes for more than a century and these standing seam metal roofing panels are commonly used on roofs of commercial businesses because of the roofing's outstanding durability. These standing seam roof panels have area clean and graceful lines that have been an enduring favorite on a wide range of architecture.

SL (Snap-Lock) 175 metal roofing panel is a snap locking standing seam metal roofing system that can be used for architectural and light structural applications. The snap lock metal roofing panel is secured with concealed clips and the snap locking standing seam metal roofing panel ribs snap lock securely together without the use of special tools. The snap lock metal roofing panels provide very good wind uplift resistance. SL 175 Snap Lock standing seam metal roofing panel can be specified as an accent feature or a total roof system for schools, shopping centers, banks, hotels, offices, and a variety of other applications.

SL150 is a snap lock standing seam roof panel that installs with concealed clips. The snap-lock standing seam roof panel
installation offers high levels of wind uplift protection and also allows these standing seam roof panels to float on the roof
deck, allowing for expansion and contraction with temperature extremes. Compared to Advantage-Lok standing seam metal roof panels, SL150 standing seam roof panel ribs have a more narrow, knife-edge profile that some customers prefer on their metal roofs. SL150 standing seam roof panel ribs snap securely in place over the clip to provide your roof maximum wind and weather resistance.
Item NO

Description
UnitType
RF-RP
1
Material Thickness
mm
0.3-0.8mm for Color coated steel
2
Forming Speed
m/min
0-10
3
Roller stands
stands
20
4
Roller Material
45# steel, coated with chrome, fire treated, HRC 58-62
5
Shaft diameter and materail
Ф70, 45# steel, fire treated, HRC 58-62
6
Cutting device
Hydraulic cutting
7
Main Motor Power
Kw
7.5
8
Hydraulic cutting Power
Kw
4
9
Hydraulic pressure
Mpa
12
10
Power Supply
According to client’s requiry
11
Tolerance
mm
1.5
12
Material of cutting
Cr12
13
Control system
PLC with touch screen
14
Main machine weight
T
6-7 Ton
15
Outer specification
m
7*1*1.2
16
Transmission Type
1 inch chain drive


Standing Beam Main Components

5 ton passive de-coiler
1 set
Main roll forming machine
1 set
Hydraulic Cutting
1 set
PLC Control box
1 unit
Hydraulic station
1 unit
4 meters passive table
1 unit
Spare part
1 package

Profile Drawing:

Aluminum Galvalume Coverage 12

Aluminum Galvalume Coverage 12

Sample pictures:

Aluminum Galvalume Coverage 12

Aluminum Galvalume Coverage 12

Advantage for Standing Beam

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable

Working Flow of Standing Beam

Decoiler----Feeding and Leveling---Roll forming---Fly saw cutting---Run out tables

Aluminum Galvalume Coverage 12

Customes Visiting

Aluminum Galvalume Coverage 12Aluminum Galvalume Coverage 12

Loading Pic.

Aluminum Galvalume Coverage 12Aluminum Galvalume Coverage 12

Aluminum Galvalume Coverage 12Aluminum Galvalume Coverage 12
