Specifications
Brand Name :
Sussman
Model Number :
Tile capping
Certification :
ISO 9001 SGS
Place of Origin :
Wuxi,China
MOQ :
1
Price :
negociate
Payment Terms :
T/T, L/C
Supply Ability :
30 Sets per month
Delivery Time :
75 days
Packaging Details :
Naked packing
Roller material :
45#forge steel, coated with chrome
Frame :
H type steel
Effective width :
60mm
Rolling thickness :
0.3-0.8mm
Rolling speed :
5-10m/min(not include cutting time)
Transmission :
By chain 1 inch
Material of cutting :
Cr12Mov with quench HRC58-62°
Tolerance of cutting :
6m+-1.5mm
Description

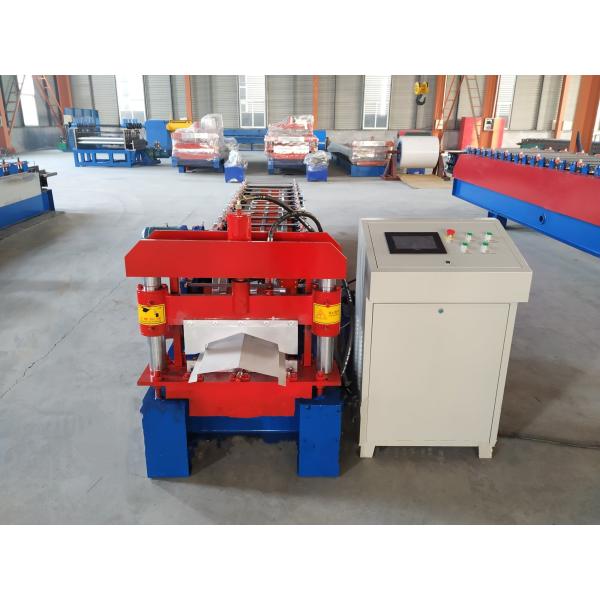

Galvanized Steel Roof Tile Ridge Cap Roll Forming Machine Metal Roof Making Machine

It makes different shape of color steel ridge cap sheet, which is used for buildings, factory, supermarket ect. For this machine.

It suits material coil width is 400mm, thickness range is from 0.3mm to 0.8mm.

Usually it can run with the max speed to 10m/min, PLC with touch screen operation make the machine simple and easy for usage.

Description of the machine:

Item NO.

Description

Offered specification
1.0 Roll forming machine
1.1 Rolling speed 5-10m/min(not include cutting time)
1.2 Rolling thickness 0.42 mm
1.3 Raw material 400mm,G550Mpa Hi Tensile Colorbond Steel
1.6 dimension 1500×1700×1500(mm) about
1.7 Effective width 60mm
1.8 Roller stations

16 stations

1.9 Roller material 45#forge steel, coated with chrome
1.10 Shaft diameter Φ70mm ,material is 45# forge steel
1.11 Transmission By chain 1 inch
1.12 Material of chain 45# forged steel with frequency quenching, 12A
1.14 Material of cutting Cr12Mov with quench HRC58-62°
1.15 Tolerance of cutting 6m+-1.5mm
1.16 Frame H type steel

Machine list:

5 ton passive de-coiler 1 set
Main roll forming machine with wheels 1 set
PLC Control box 1 unit
Hydraulic station 1 unit
Out table 2 units
Curving machine 1 unit
Seaming machine 1 unit

Advantage for Ridge Cap

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable

Working flow of the Ridge Cap:

Uncoiling—Feedingwithguide—Roll forming—cutting—Products collecting

Galvanized Steel Roof Tile Ridge Cap Roll Forming Machine Metal Roof Making Machine

Notes:

1. The delivery term for the above equipment is FOB SHANGHAI

2. The whole producing plant has the CE certificate approved

3. We offer a warranty period of 1year for all of our machines.

4. Our after-sales services will include factory process designing, equipment Installation coaching, test running the machines, and training of your operation personnel.

Drawings:

Galvanized Steel Roof Tile Ridge Cap Roll Forming Machine Metal Roof Making Machine

Application:

Galvanized Steel Roof Tile Ridge Cap Roll Forming Machine Metal Roof Making Machine

Galvanized Steel Roof Tile Ridge Cap Roll Forming Machine Metal Roof Making Machine

Galvanized Steel Roof Tile Ridge Cap Roll Forming Machine Metal Roof Making Machine

Galvanized Steel Roof Tile Ridge Cap Roll Forming Machine Metal Roof Making Machine

Shipping and delivery

Before loading to the container, we will check the machine first
Second, make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery
Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container
