Automatic 4 Meters Long Racking Lock Beam MIG Welding Machine With 4 Welders
Automatic 4 Meters Long Racking Lock Beam MIG Welding Machine With 4 Welders
Automatic 4 Meters Long Racking Lock Beam MIG Welding Machine With 4 Welders
Automatic 4 Meters Long Racking Lock Beam MIG Welding Machine With 4 Welders
Automatic 4 Meters Long Racking Lock Beam MIG Welding Machine With 4 Welders
Automatic 4 Meters Long Racking Lock Beam MIG Welding Machine With 4 Welders
Automatic 4 Meters Long Racking Lock Beam MIG Welding Machine With 4 Welders
Automatic 4 Meters Long Racking Lock Beam MIG Welding Machine With 4 Welders
Specifications
Brand Name :
Sussman
Model Number :
SM-RB
Certification :
CE ISO 9001
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 set per month
Delivery Time :
60days
Packaging Details :
Standard Packing with steel wire fixed and film coated
Product name :
Auto rack beam welding machine
Turn over system :
By cylinder, gear
PLC :
Delta
Clamping :
By pneumatic
Number of welding :
4 welders or 6 welders
Length of the beam :
800-4000mm
Description

Automatic 4 Meters Long Racking Lock Beam MIG Welding Machine With 4 Welders


Auto Rack Beam Welding Machine Main Specifications

1Welding edge6 sides of beam
2Length of the beam1200-4000mm
3Material thickness1.5-2.5mm
4Diameter of the welding wire0.8-1.0 mm
5Model of the welding unitChinese famous brand
6Number of welding unit4 sets welding guns
7Number of air cylinder18 sets
8Main motor1kw stepping motor
9Voltage380V, 50HZ, 3 phase
10ClampingBy pneumatic
11Turn over systemBy cylinder, gear and rack
12Horizontal push to adjust the lengthBy liner guide way and fix by manual
12Size of the machineAbout 5.2mX1.0mX1.9m
14Machine weightAbout 1200kgs
15GasCO2 or 80%Ar+20%CO2
16Length Tolerance0mm to -4mm(Maximum single side -2mm)
17Welding speedAbout 100-120 piece in one hour

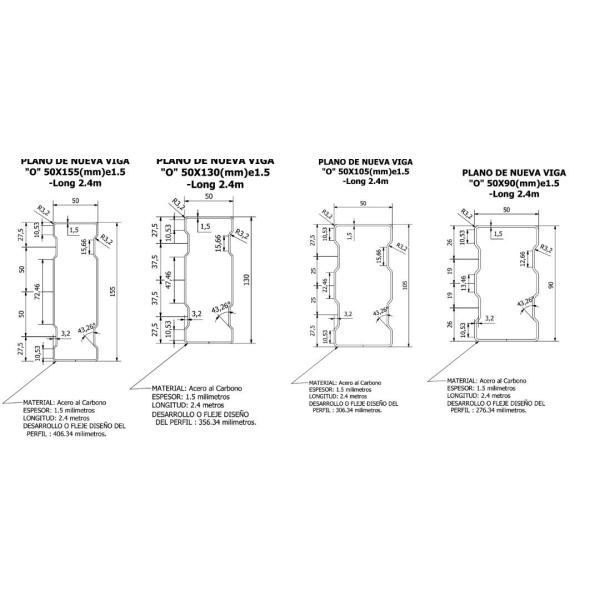

Rack Beam Profile reference

Auto beam welding machine is customized for storage rack industry and supermarket shelves
The 4 weld guns run automatically controlled by PLC, which can weld 2 sides one time and rotate to weld another 2 sides.
Automatic 4 Meters Long Racking Lock Beam MIG Welding Machine With 4 Welders
Automatic 4 Meters Long Racking Lock Beam MIG Welding Machine With 4 Welders



Beam welding machine Photo

MIG Beam Welder Machine is to weld beams faster and more accurate, which not only saves labors to improve production capacity, but also saves consumables and materials, and ultimately greatly improves enterprise profits.

Automatic 4 Meters Long Racking Lock Beam MIG Welding Machine With 4 Welders



Automatic 4 Meters Long Racking Lock Beam MIG Welding Machine With 4 Welders
