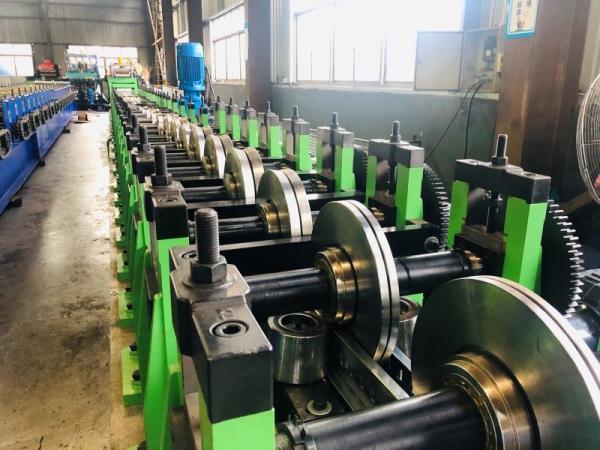

1.5mm Galvanized Roll Forming Line With Servo Following Cutting
1.5mm Galvanized Roll Forming Line With Servo Following Cutting
1.5mm Galvanized Roll Forming Line With Servo Following Cutting
1.5mm Galvanized Roll Forming Line With Servo Following Cutting
1.5mm Galvanized Roll Forming Line With Servo Following Cutting
1.5mm Galvanized Roll Forming Line With Servo Following Cutting
1.5mm Galvanized Roll Forming Line With Servo Following Cutting
1.5mm Galvanized Roll Forming Line With Servo Following Cutting
1.5mm Galvanized Roll Forming Line With Servo Following Cutting
1.5mm Galvanized Roll Forming Line With Servo Following Cutting
1.5mm Galvanized Roll Forming Line With Servo Following Cutting
1.5mm Galvanized Roll Forming Line With Servo Following Cutting
Specifications
Brand Name :
Sussman
Model Number :
SM-VG
Certification :
ISO,BV,CE
Place of Origin :
Wuxi,China
MOQ :
1 set
Price :
USD35500-45000/set
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
60-75days
Packaging Details :
Plastic film
Raw material :
1.5mm galvanized coils
Main motor :
11kw
Stations :
26 stations
Cutting :
Hydraulic stop cutting
Machine weight :
12 tons
Machine size :
11800mm*800mm*1200mm
Description

1.5mm thickenss Galvanized VIGACERO deck floor beam Roll Forming Machine with servo following cutting

1. Cutting way:

(1) Cutting motion: The main machine stops and then cut automatically. After cutting, the main machine re-starts automatically.

(2) Material of blade: CR12 with heat treatment

(3) Length measuring: Automatically

(4) Tolerance of length: + 1.5mm

(5) In order to get the perfect profiles, we recommend the post hydraulic cutting by changing the cutting moulds. It is easy to operate.

(1) Power supplier: 220V, 60 Hz, 3Phase (adjusted with the request )

(2) Length & quantity measurement automatically;

(3) Length & quantity controlled by PLC,

(4) Length inaccuracy can be amended easily.

(6). Control panel: Button-type switch and touch screen

(7) The language in the touch screen: English and Chinese

(8) Unit of length: millimeter (switched on the control panel)

Items Specifications Remarks
Material of coil Material Thickness 1.5mm galvanized
Un Coiler 3 tons manual
Forming system Rolling Speed 10 m/min
Roller Stations About 24 stations
Roller Material

45# Steel with quenching 60mm shaft
Maim Motor Power 7.5 kw
Hydraulic cutting Power 4 kw

Cutting

system

 Material Of Cutting CR12 with quench treatment
Hardness HRC58-62
Tolerance +-1.5mm
Electrical control system Electric Source

220V, 60HZ,3 phase

Also can satisfy Customer’s require
Control System PLC (Panasonic) as list in the note
Weight About 5.5 tons
Way Of Drive 1 inch single chain
Size of machine Length 9000mm* Width 600mm* Height 1000mm

2. Profiles

1.5mm Galvanized Roll Forming Line With Servo Following Cutting

1.5mm Galvanized Roll Forming Line With Servo Following Cutting

1.5mm Galvanized Roll Forming Line With Servo Following Cutting1.5mm Galvanized Roll Forming Line With Servo Following Cutting
