Specifications
Brand Name :
Sussman
Model Number :
RF-ST
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 set
Price :
USD69500 Per set
Supply Ability :
10 sets/month
Delivery Time :
60 days after deposit
Packaging Details :
Film and steel
main motor power :
22kw
roller material :
GCR15 quenched 58°-62°,chromed
Material :
3-5mm galvanized coil
Forming speed :
5m--20m/min(not including punching)
drive :
gear box drive
Tolerance :
1mm
Control system :
PLC with touch screen
Material of Roller :
GCR15 quenched 58°-62°,chromed
Description

3-4mm Punching High Speed Road 2 / 3 Waves Guard Railway Roll Forming Machine

Technical Parameter

The overall production line consists of decoiler, leveling device, servo following, punching press system, forming system , hydraulic cutting system , electric control system , out tables, etc.
Model number
Guard railway Roll Forming Machine
Material Thickness
1.5-3.0mm
Product speed
0-12meter / per minute
Roller Stations
About 15 stations
Roller Material
Gcr15 Steel with quenching
Shaft Material
45# Advanced Steel (Diameter: 76mm), thermal refining
Material Of Cutting
CR12Mov with quench treatment
Electronic control
PLC control with touch screen
Weight
About 15 tons


Flow Chart

Decoiling—Feeding (take the sheet to the first station)—leveling----Punching of the sheet ---- hydraulic cut to length—— roll forming----outtable


12M/Min 5mm Highway Guardrail Roll Forming Machine For Galvanized Coil




Machine Components

3 ton passive decoiler

1 set

Levelling device

1 set

Servo feeding device

1 set

Hydraulic punching

2 sets

Main roll forming machine

1 set

PLC Control box

1 unit

Hydraulic station

1 unit

Hydraulic cutting

1 unit

Out tables

1 unit



Profile Drawing
12M/Min 5mm Highway Guardrail Roll Forming Machine For Galvanized Coil12M/Min 5mm Highway Guardrail Roll Forming Machine For Galvanized Coil

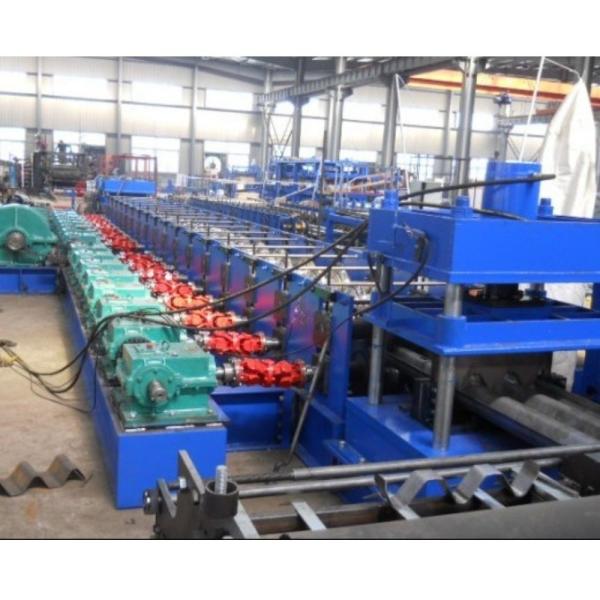

Machine Photo

12M/Min 5mm Highway Guardrail Roll Forming Machine For Galvanized Coil

12M/Min 5mm Highway Guardrail Roll Forming Machine For Galvanized Coil
