0.3-1.2mm Channel Rolling Machine , Cr12 Steel Cnc Roll Forming Machine
0.3-1.2mm Channel Rolling Machine , Cr12 Steel Cnc Roll Forming Machine
0.3-1.2mm Channel Rolling Machine , Cr12 Steel Cnc Roll Forming Machine
0.3-1.2mm Channel Rolling Machine , Cr12 Steel Cnc Roll Forming Machine
0.3-1.2mm Channel Rolling Machine , Cr12 Steel Cnc Roll Forming Machine
0.3-1.2mm Channel Rolling Machine , Cr12 Steel Cnc Roll Forming Machine
0.3-1.2mm Channel Rolling Machine , Cr12 Steel Cnc Roll Forming Machine
0.3-1.2mm Channel Rolling Machine , Cr12 Steel Cnc Roll Forming Machine
0.3-1.2mm Channel Rolling Machine , Cr12 Steel Cnc Roll Forming Machine
0.3-1.2mm Channel Rolling Machine , Cr12 Steel Cnc Roll Forming Machine
0.3-1.2mm Channel Rolling Machine , Cr12 Steel Cnc Roll Forming Machine
0.3-1.2mm Channel Rolling Machine , Cr12 Steel Cnc Roll Forming Machine
Specifications
Brand Name :
Sussman
Model Number :
SM-WA
Certification :
SGS.CE.ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD20800-USD25800 Per set
Payment Terms :
L/C, T/T
Supply Ability :
5 sets per month
Delivery Time :
60days
Packaging Details :
Film and Steel
Hydraulic Station :
5.5KW
material thickness :
0.3-1.2mm galvanized steel
Roller material :
Cr12 Steel with quenching
Dirve system :
Chain drive
Forming speed :
10-15m/min
Machine weight :
about 5 tons
Roller Stations :
About 13 stations forming
Control System :
PLC Delta
Description

0.3-1.2mm Galvanized Steel Omega Section Furming Channel Roll Forming Machine

Machine Technical Parameter

Items

Specifications

Material of coil

Material Thickness

0.5-1.0 mm

De-coiler

Weight

3 ton manual

Forming system

Rolling Speed

up to 15m/min

Roller Stations

About 13 stations forming

Roller Material

Gcr15 Steel with quenching

Shaft Material

45# Steel

Maim Motor Power

7.5 kw

Hydraulic cutting Power

4 kw

Cutting
system

Material Of Cutting

CR12 with quench treatment

Hardness

HRC58-62

Tolerance

+-1.5mm

Cutting blade

1 set of cutting blade

Electrical control system

Electric Source

380V, 50HZ

Control System

PLC with touch screen Japanese Panasonic and Yaskawa Brand

Weight

About 3.5 tons

Way Of Drive

1 inch single chain

Size of machine

Length 3100mm* Width 500mm* Height 700m




Main Components

Main Components
3 ton passive de-coiler 1 set
Feeding with guide 1 set
Main roll forming machine 1 set
PLC control system 1 unit
Hydraulic station 1 unit
Stop cutting device 1 unit
Safety cover 1 unit
Out table 2 units
Spare parts 1 package



Working Flow of Roll Forming Machine

feeding with guide—Roll forming——Cutting—Products collecting
0.3-1.2mm Channel Rolling Machine , Cr12 Steel Cnc Roll Forming Machine




Standard Profile and Drawing Of Product
0.3-1.2mm Channel Rolling Machine , Cr12 Steel Cnc Roll Forming Machine

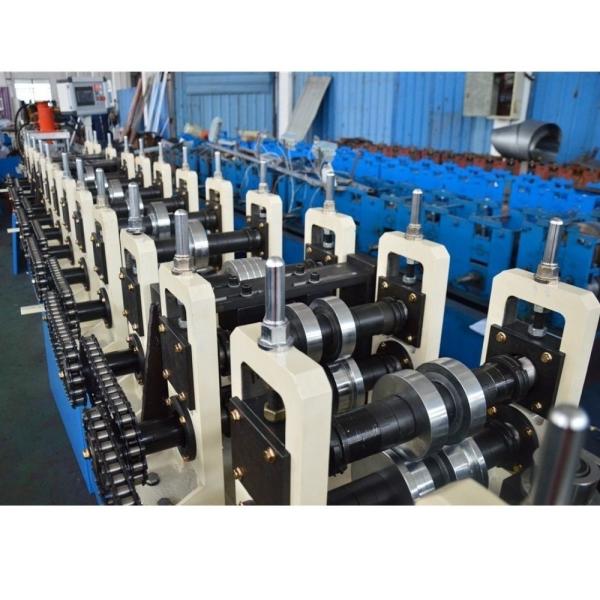

Photo Gallery

0.3-1.2mm Channel Rolling Machine , Cr12 Steel Cnc Roll Forming Machine

0.3-1.2mm Channel Rolling Machine , Cr12 Steel Cnc Roll Forming Machine





Competitive Advantage
1. save space
2. easy installation
3. perfect service
4. excellent quality
5. Operate easily
