Galvanized Steel Profile C Z 80mm 11KW Channel Roll Forming Machine
Galvanized Steel Profile C Z 80mm 11KW Channel Roll Forming Machine
Galvanized Steel Profile C Z 80mm 11KW Channel Roll Forming Machine
Galvanized Steel Profile C Z 80mm 11KW Channel Roll Forming Machine
Galvanized Steel Profile C Z 80mm 11KW Channel Roll Forming Machine
Galvanized Steel Profile C Z 80mm 11KW Channel Roll Forming Machine
Galvanized Steel Profile C Z 80mm 11KW Channel Roll Forming Machine
Galvanized Steel Profile C Z 80mm 11KW Channel Roll Forming Machine
Galvanized Steel Profile C Z 80mm 11KW Channel Roll Forming Machine
Galvanized Steel Profile C Z 80mm 11KW Channel Roll Forming Machine
Specifications
Brand Name :
Sussman
Model Number :
SM-CP
Certification :
SGS.CE.ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
60 days
Packaging Details :
film and steel
Width :
80-300mm changeable width
Roller stations :
18 stations
Power :
11KW
Product name :
Steel Frame Purlin Machine
Diameter of axis :
76mm
Production capacity :
8-12 meters per minute
Voltage :
380V/50HZ 3Phase
Control system :
HMI & PLC control panel
Description

Galvanized Steel Profile C Z Channel Cold Roll Forming Machine Roll Former C Z Purlin Bending Machine

Name C Z U Purlin Roll Forming Machine
1 Suitable raw material PPGI/PPGL/GI/GL Steel Coils
2 Thickness of coil sheet 1.5-3.0mm
3 Feeding Coil width 200-500mm
4 Effective width 100-300mm
5 Under frame 400H-beam
6 Diameter of Soild shaft 76mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway

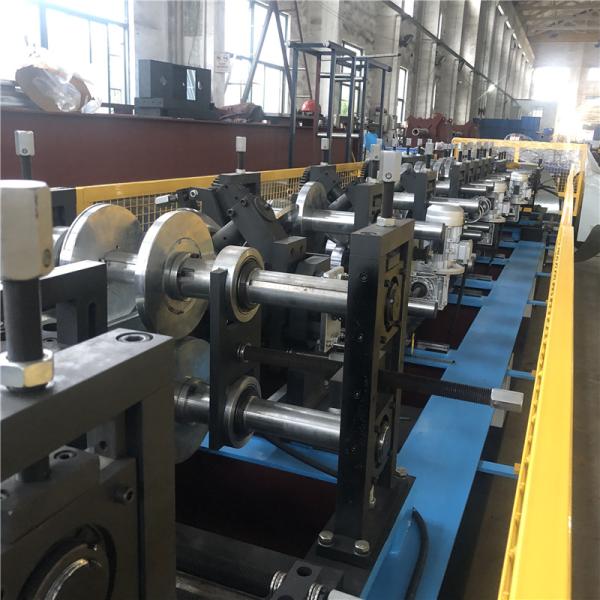

7 Roller

High grade Gcr15, processed by CNC lathe, Quenched and tempered treatment,

hard chrome coated 0.05-0.07mm
8 Thickness of middle plate 18mm
9 Forming stations 13
10 Drive type By chain(2.0 inch)
11 Power of main motor 15kw with Cycloidal reducer, Lichao, Shanghai
12 Power of pump station 5.5kw
13 PLC DELTA, TAIWAN / Mitsubishi, Japan
14 Material of cutting blade Cr12Mov, quenching 58-62℃
15 Frequency converter

It has the advantage of slowing down before cutting,

to ensure thelength accuracy(±1mm, far better than

industrial standard ±3mm).

Equipment components:

Man-made uncoiler, Roll forming machine, computer control system, hydraulic control system, punching system

Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.

Main features of quickly change C to Z purlin roll forming machine

The advantages of C to Z purlin machine AUTOMATIC size-change type are as follows:

1.Produce different purlin size without changing rollers or spacers.

2.No need changing cutter for different size.

3.Easy operation, low maintenance cost

4.Infinite sizing(any size within machine range),help to save material

5.Optional Punch hole at any position of purlin web side and flange side

Each part of C Purlin Machine

1.3T Manual De-coiler
Diameter: 460-520mm expansion.
Capacity: 3 Tons
Max Coil Width: 500mm


2.Leveling device


Put the raw material(steel plate) through the beach to manufacture and process

Diameter is Ø 76mm, chrome and HRC60 heat treatment to secure the smooth surface.
7 rolls leveling, 3 rolls up and 4 rolls down,it can guarantee that the products are neat, parallel and everything is uniformi

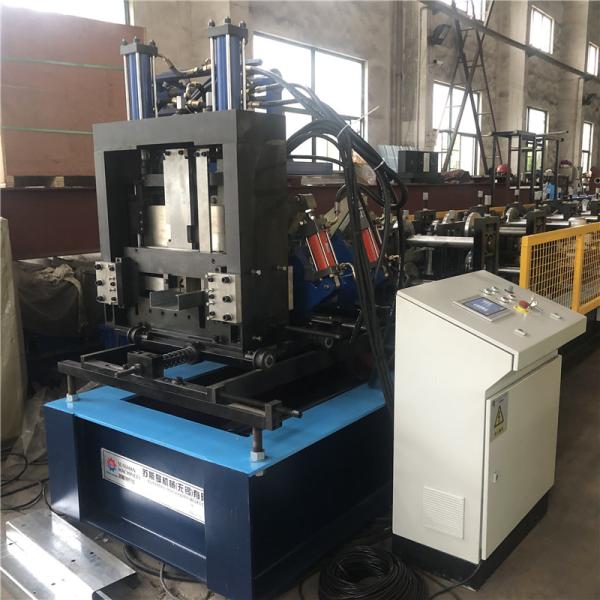

3. Punching and cutting device

It adopts the hydraulic drive and automatic location to decide the
dimension and cut the target products

hydraulic station pressure: 20 MPa
Hydraulic coil:46#
Components: It contains one set of blade, one hydraulic cylinder and one cutter machine

cutting blade material:Cr12 Mov steel with high treatment

4.Control Box

(1) Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requestment)
(2). Control panel: Button-type switch and touch screen
(3) The language in the touch screen: English and Chinese
(4) Length & quantity measurement automatically.
(5) Length & quantity controlled by PLC.
(6) Length inaccuracy can be amended easily.

Galvanized Steel Profile C Z 80mm 11KW Channel Roll Forming Machine

Galvanized Steel Profile C Z 80mm 11KW Channel Roll Forming Machine
