PLC Control CZ Purlin Interchangeable Roll Forming Machine 20 Stations With 12-15m/min Speed

Description

Purlin is widely using in industry building. The machine can forms different size through change some rollers position. And also can punch and cut automatically as setting.

C & Z Purlins are horizontal beams or bars used for structural support in buildings. Sussman Machinery purlin roll forming machine can produce different size purlins. CZ purlin roll forming machine are also called interchangeable purlin roll forming machine. In steel construction, the term purlin typically refers to roof framing members that span parallel to the building eave abd suppor the roof decking or sheeting.

Applications of C&Z purlin include:

1. Industrial construction
2. Hall and warehouse construction
3. Extension construction and renovation
4. Agricultural projects

Technicial Speciafication

Working Flow

Decoiler—→level device—→main forming machine—→straightening—→hydraulic Punching —→hydraulic cutting—→ run out table

Machine List

Main Components of the Machine

1. Hydraulic Decoiler with Breaking device is equipped for coil processing.

2. Leveler

3. Hydraulic punching system

4. Pre Shearing System

5. Rollformer with tooling

6. Run Out Table or automatic stacking device

7. Panasonic (Japan) PLC and MCGS touch screen are used for data processing and setting.

8. Roll forming speed is 8 - 12m / min.

Profiles

C PURLIN SIZES

Width: C80-300

Thickness: 1.5-3.0mm

Height: 40-100mm

Control Box: Panasonic Brand

(1) Power supplier: 415V, 50 Hz, 3Phase (adjusted with the requestment)

(2) Length & quantity measurement automatically;

(3) Length & quantity controlled by PLC,

(4) Length inaccuracy can be amended easily.

(6). Control panel: Button-type switch and touch screen

(7) The language in the touch screen: English and Chinese

(8) Unit of length: millimeter (switched on the control panel)

Out Table

Length : 2m

Quantity: 2 units

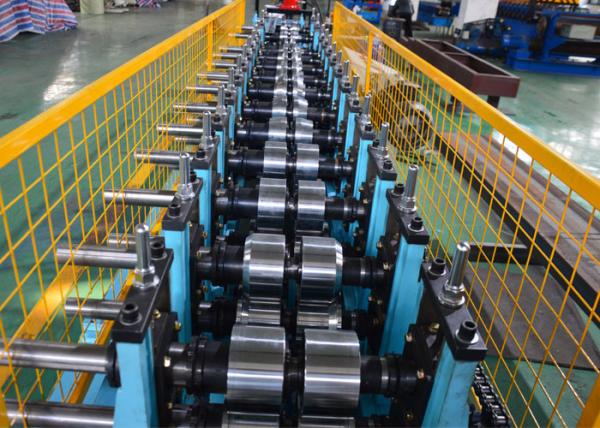

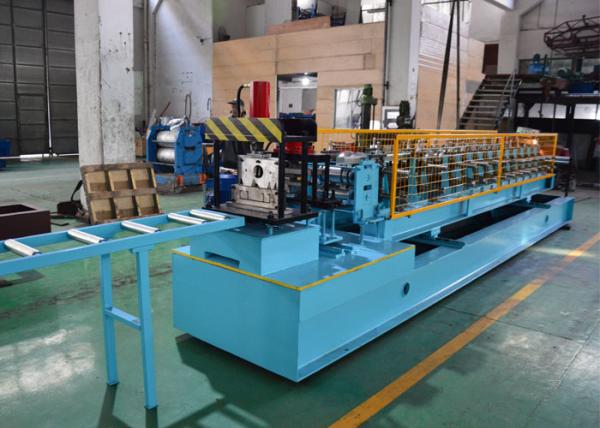

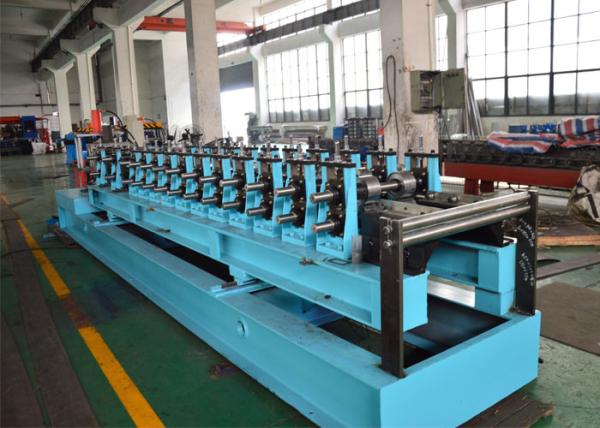

Pictures of the product:
