Automatic Floor Deck Roll Forming Machine , Steel Rolling Machine High Efficiency
Automatic Floor Deck Roll Forming Machine , Steel Rolling Machine High Efficiency
Automatic Floor Deck Roll Forming Machine , Steel Rolling Machine High Efficiency
Automatic Floor Deck Roll Forming Machine , Steel Rolling Machine High Efficiency
Automatic Floor Deck Roll Forming Machine , Steel Rolling Machine High Efficiency
Automatic Floor Deck Roll Forming Machine , Steel Rolling Machine High Efficiency
Specifications
Brand Name :
Sussman
Model Number :
FD-688
Certification :
ISO-9001
Place of Origin :
China
MOQ :
1 set
Price :
USD 25,000 set
Payment Terms :
L/C, T/T, MoneyGram, Western Union, D/P, D/A
Supply Ability :
5 sets per month
Delivery Time :
45 days
Packaging Details :
Naked packing
Effective width :
688mm
Matching material :
GI
Matching thickness :
0.7-1.2mm
Main motor power :
15KW（7.5x2）
Material of the rollers :
Gcr15
Diameter of the shaft :
85mm
Description

Type-688 Floor Deck Automatic Roll Forming Machine with High Efficiency and High Quality

Item NO Description UnitType RF-DF
1 Steel Thickness mm 0.75-1.5mm
2 Forming Speed m/min 0-12
3 Roller stands stand 28
4 Roller Material high-grade 45# steel
5 Shaft diameter 90
6 Main Motor Power Kw 15kw
7 Hydraulic cutting Power Kw 5.5
8 Hydraulic pressure Mpa 12
9 Power Supply 380V, 50HZ,3 phase
10 Tolerance mm 1.5
11 Material of cutting Cr12
12 Control system PLC Panasonic with touch screen

echnological process

Uncoiling—Feeding&Leveling ---Roll forming—Cutting—Products collecting

Automatic Floor Deck Roll Forming Machine , Steel Rolling Machine High Efficiency

The profile

The profile is designed according to the client requirement.

Automatic Floor Deck Roll Forming Machine , Steel Rolling Machine High Efficiency

Automatic Floor Deck Roll Forming Machine , Steel Rolling Machine High Efficiency

Automatic Floor Deck Roll Forming Machine , Steel Rolling Machine High Efficiency

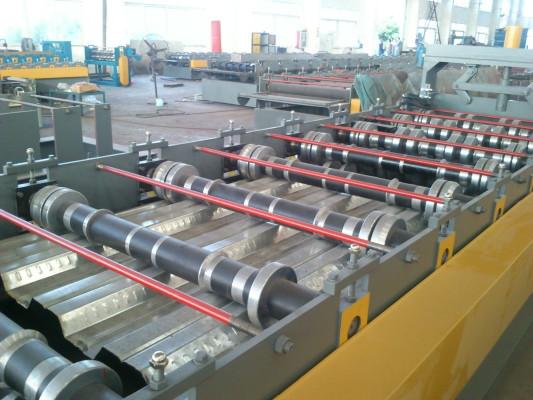

Type-688 Floor Deck Roll Forming Machine
The machine has the advantages of high efficiency, high quality and low energy consumption, and can produce finished products in a short time, which greatly reduces the production cycle and facilitates early profitability.
The machine has been certified by quality system and has won the recognition and support of the new and old customers. At the same time, our company can provide a more perfect service system, ensuring that before sale and after sale, it can bring high-quality experience to customers.

Machine Parts
Name:PLC
Brand: Mitsubishi
Panasonic PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.
Main Features
Name: Pump
Brand:China
It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.
Power of The Pump:3kw
Hydraulic oil :40#

FAQ

1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to CangZhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai HongQiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12 months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.

Best wishies and Looking forward to your consultation
