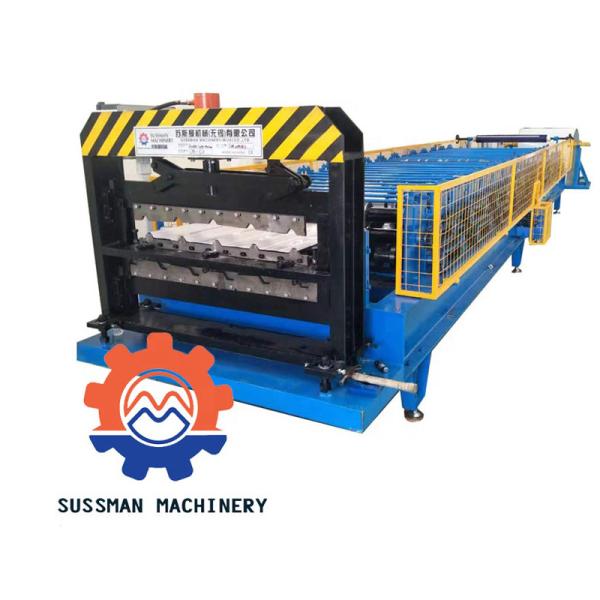

Metal Galvanized Aluminum Roof Panel Roll Forming Machine With Seam Boltless
Metal Galvanized Aluminum Roof Panel Roll Forming Machine With Seam Boltless
Metal Galvanized Aluminum Roof Panel Roll Forming Machine With Seam Boltless
Metal Galvanized Aluminum Roof Panel Roll Forming Machine With Seam Boltless
Metal Galvanized Aluminum Roof Panel Roll Forming Machine With Seam Boltless
Metal Galvanized Aluminum Roof Panel Roll Forming Machine With Seam Boltless
Specifications
Brand Name :
Sussman
Model Number :
RF-PU
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 SET
Price :
USD15000-USD25000 Per set
Payment Terms :
TT, L/C
Supply Ability :
10 sets/month
Delivery Time :
50 days after deposit
Packaging Details :
Film nad steel
Material Thickness :
0.7-1.2mm for Color coated steel; 0.5-0.8mm for aluminum sheet
Forming Speed :
10-12m/min
Roller stands :
15 stands
Roller Material :
45# steel, coated with chrome, fire treated, HRC 58-62
Shaft diameter and material :
70mm, 45# steel, fire treated, HRC 58-62
Main Motor Power :
7.5 kw
Hydraulic cutting Power :
3 kw
Power Supply :
According to client's inquiry
Tolerance :
1mm
Control system :
PLC with touch screen
Drive type :
1 inch chain drive
Description

Metal Galvanized Aluminum Beam Standing Roof Sheet Roll Forming Machine With Seam Boltless

Technical Parameter

Item NO

Description

 UnitType RF-RP
1 Material Thickness mm 0.7-1.2mm for Color coated steel 0.5-0.8mm for aluminum sheet
2 Forming Speed m/min 0-10
3 Roller stands stands 15
4 Roller Material 45# steel, coated with chrome, fire treated, HRC 58-62
5 Shaft diameter and materail Ф70, 45# steel, fire treated, HRC 58-62
5 Main Motor Power Kw 7.5
6 Hydraulic cutting Power Kw 3
7 Hydraulic pressure Mpa 12
8 Power Supply According to client’s requiry
9 Tolerance mm 1.5
10 Material of cutting Cr12
11 Control system PLC with touch screen
12 Main machine weight T 6-7 Ton
13 Outer specification m 7*1.2*1.2
14 Transmission Type 1 inch chain drive


Standing Beam Main Components

1 5 ton passive de-coiler 1 set
2 Main roll forming machine with wheels 1 set
3 PLC Control box 1 unit
4 Hydraulic station 1 unit
5 Out table 2 units


Advantage for Standing Beam

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable

Working Flow

Decoiler----Feeding and Leveling---Roll forming---Fly saw cutting---Run out tables

Metal Galvanized Aluminum Roof Panel Roll Forming Machine With Seam Boltless

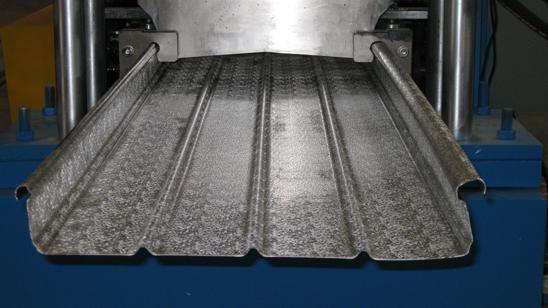

Profiles of Standing Beam

Metal Galvanized Aluminum Roof Panel Roll Forming Machine With Seam Boltless
