Specifications
Brand Name :
Sussman
Model Number :
RF-ST
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
10 sets/month
Delivery Time :
60 days after deposit
Packaging Details :
Film and steel
Material :
Galvanized Steel 0.3-1.2mm
Control system :
PLC with touch screen
Cutting method :
Following cutting
Cutting material :
Cr12 Mov with quenched
Main power :
7.5KW
Hydraulic punching :
pre-punching press
Description

0.3-1.2mm Thickness Size Changeable Metal Ceiling Systems Drywall Stud And Track Roll Forming Machine


1. Technical Parameter

Stud Track Roll Forming Machine

No.

Item

Specification

1

Suitable material

0.3-1.2mm Galvanized Coil G350Mpa-G550Mpa

2

Forming speed(m/min)

About 8-12m/min

3

Forming station

13 rollers

4

Decoiler

Electric decoiler

5

Main machine motor

Famous China brand

6

PLC brand

Delta

7

Driving system

Chain drive

8

Rollers’ materail

45# Steel

9

Station structure

Cast iron structure

10

Punching system

Yes

11

Cutting system

Non stop cutting

12

Power supply requirement

380V 50HZ or customized

13

Machine color

Industrial blue or customized
14 Servo feeder Yes


2. Machine Components

The stud track keel machine uses strip steel as raw material, through continuous cold rolling, to produce complex cross-section profiles, using PLC control, simple operation, integrated machine equipment, saving space

1.Electrical control

A. plc[Delta]

b. Inverter [Delta]

c. Length Encoder [OMRON]

D. Remote control host

2. Hydraulic

A. Hydraulic pump station: 4w

b. The electromagnetic valve

c. hydraulic cylinder

3 tons manual decoiler 1 set
Servo feeder 1 set
Press punching device 1 set
Roll forming machine 1 set
Hydraulic station 1 set
Electric Control box system 1 unit

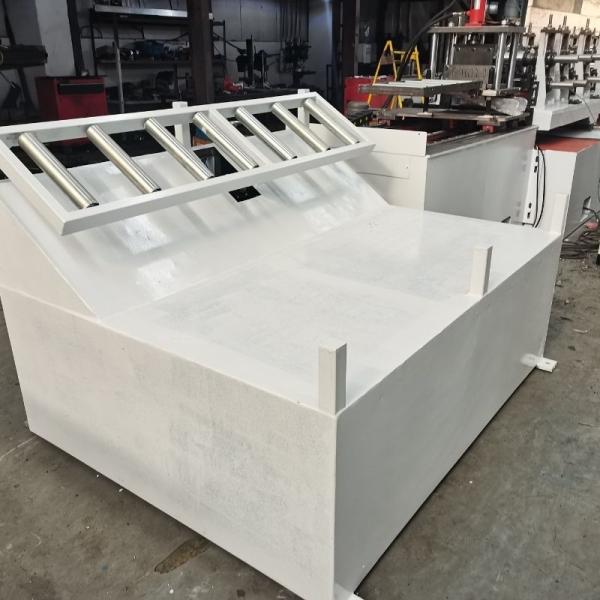

4M Passive out table 1 unit
Safety cover 1 unit
Spare parts 1 package



3. Application

Typically used in corridors, bathrooms, kitchens and fire tunnels a spanning system can overcome a lack of supporting structure above by providing a ceiling joist to which plasterboard or other lining materials can then be fixed.

Drywall Stud And Track Roll Forming Machine 0.3-1.2mm 40-160mm Changeable Metal Ceiling Systems

Drywall Stud And Track Roll Forming Machine 0.3-1.2mm 40-160mm Changeable Metal Ceiling Systems

4. Working flow

Decoiler--servo feeding- press punching for the holes and notch--roll forming-- hydraulic cutting- out put tables

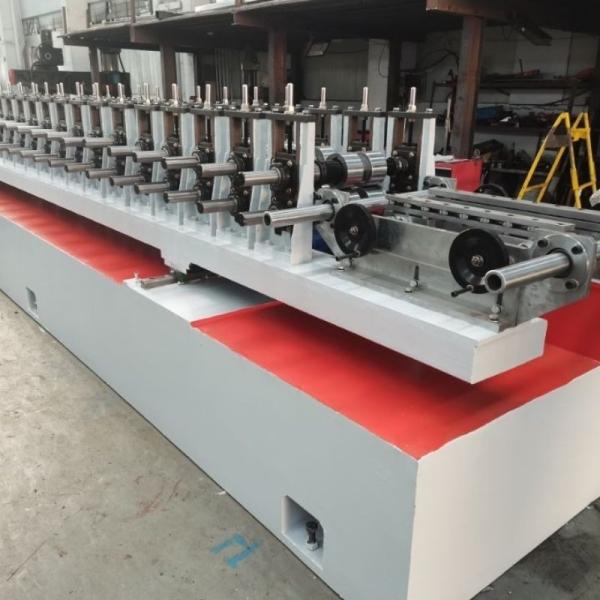

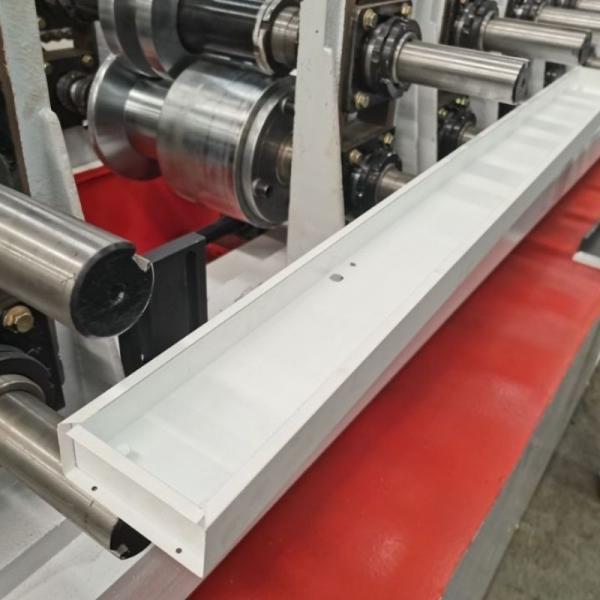

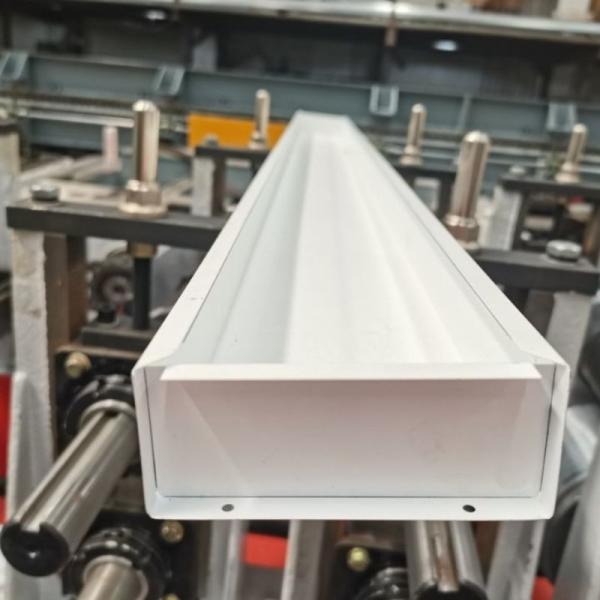

5.Machine picture

Light steel frame machine is to make the wall strcuture or ceiling system, it is used to plaster board, gypsum board and other decorative finishes lightweight board.

Products made by this machine are suitable to use in hotels, theaters, shopping malls, factories, office buildings, old building renovation, interior decoration settings, roof and other places.

Drywall Stud And Track Roll Forming Machine 0.3-1.2mm 40-160mm Changeable Metal Ceiling Systems

Drywall Stud And Track Roll Forming Machine 0.3-1.2mm 40-160mm Changeable Metal Ceiling Systems


Material for this machine is galvanized steel plate, snowflake plate and cold steel plate,we can according to customer design, manufacture different specifications of cold-formed.
