Air Balance Opposed VCD Fire Damper Blade Roll Forming Machine in HVAC System
Air Balance Opposed VCD Fire Damper Blade Roll Forming Machine in HVAC System
Air Balance Opposed VCD Fire Damper Blade Roll Forming Machine in HVAC System
Air Balance Opposed VCD Fire Damper Blade Roll Forming Machine in HVAC System
Air Balance Opposed VCD Fire Damper Blade Roll Forming Machine in HVAC System
Air Balance Opposed VCD Fire Damper Blade Roll Forming Machine in HVAC System
Air Balance Opposed VCD Fire Damper Blade Roll Forming Machine in HVAC System
Air Balance Opposed VCD Fire Damper Blade Roll Forming Machine in HVAC System
Specifications
Brand Name :
SUSSMAN
Model Number :
SS-FD
Certification :
CE
Place of Origin :
WUXI CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10 sets per month
Delivery Time :
65-75 days after deposit
Packaging Details :
standard packing
Type :
Fire Damper Blade Roll Forming Machine
Thickness :
0.6-1.0mm
Rolling Speed :
About 10m/min
Motor Power :
5.5 kw
cutting Power :
4 KW
Way Of Drive :
1.2 inch chain
Description

Air Balance Opposed VCD Fire Damper Blade Roll Forming Machine in HVAC System


Technical Parameter

Items Specifications
Material of coil Material Thickness 0.6-1.0mm
Un Coiler 3 tons manual
Forming system Rolling Speed About 10m/min
Roller Stations About 12 stations feeding
Roller Material

Gcr15 coated with chrome
Maim Motor Power 5.5 kw
Motor cutting Power 4kw

Cutting
system

 Material Of Cutting CR12mov with quench treatment
Hardness HRC58-62
Tolerance +-1.5mm
Electrical control system Electric Source

415 V, 50HZ,3 phase
Also can satisfy Customer’s requirey
Control System PLC (Panasonic) as list in the note
Weight About 4 tons
Way Of Drive 1.2 inch chain


Machine list

Machine list 3 ton passive de-coiler 1 set
Main roll forming machine 1 set
PLC Control box 1 unit
Hydraulic station 1 unit
Out table 1 unit
One 20 feet GP Container

Technological process:
Uncoiling—feedingwithguide———Rollforming——Cutting ——Products collecting

Profile Drawing

Air Balance Opposed VCD Fire Damper Blade Roll Forming Machine in HVAC System

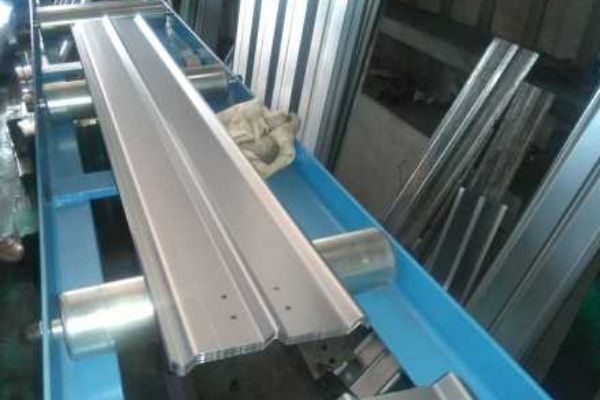

Samples

Air Balance Opposed VCD Fire Damper Blade Roll Forming Machine in HVAC System
Air Balance Opposed VCD Fire Damper Blade Roll Forming Machine in HVAC System

Air Balance Opposed VCD Fire Damper Blade Roll Forming Machine in HVAC System


Application:

Air Balance Opposed VCD Fire Damper Blade Roll Forming Machine in HVAC System

Notes:

1. The delivery term for the above equipment is FOB SHANGHAI

2. The whole producing plant has the CE certificate approved

3. We offer a warranty period of 1year for all of our machines.

4. Our after-sales services will include factory process designing, equipment Installation coaching, test running the machines, and training of your operation personnel.
