0.8mm Thickness Stainless Steel L Type Corner Angle Roll Forming Machine With PLC Control
0.8mm Thickness Stainless Steel L Type Corner Angle Roll Forming Machine With PLC Control
0.8mm Thickness Stainless Steel L Type Corner Angle Roll Forming Machine With PLC Control
0.8mm Thickness Stainless Steel L Type Corner Angle Roll Forming Machine With PLC Control
0.8mm Thickness Stainless Steel L Type Corner Angle Roll Forming Machine With PLC Control
0.8mm Thickness Stainless Steel L Type Corner Angle Roll Forming Machine With PLC Control
0.8mm Thickness Stainless Steel L Type Corner Angle Roll Forming Machine With PLC Control
0.8mm Thickness Stainless Steel L Type Corner Angle Roll Forming Machine With PLC Control
Specifications
Brand Name :
Sussman
Model Number :
RF-SM
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
10 sets/month
Delivery Time :
60 days after deposit
Packaging Details :
Film and steel
Material thickness :
0.3-0.8mm 304 stainless steel
Profile sizes :
35*72mm
Rolling Speed :
About 8-12m/min
Main Motor Power :
7.5KW
Material Of Cutting :
CR12Mov
Length :
4m or 6m
Description

0.8mm Thickness Stainless Steel L Type Corner Angle Roll Forming Machine With PLC Control

1. Technical Parameter

Part details

Item Name

Specification

Material

Raw material

Stainless steel

Thickness

0.3-0.8 mm

Machine

Roller station

17 rollers

Shaft diameter

60 mm

Shaft material

45# steel with 0.05mm chrome

Roller material hardness 30-40 HRC

Cr 12

Machine size

About 7.5×0.6×1.0 m

Machine weight

About 5 tons

Working speed

8-12 m/min

Cutter

Hardness

55- 62HRC

Cutting tolerance

± 1 mm

Material

Cr 12

Operate

Hydraulic cutting

Power

Driving way

Chain

Main power

5.5 kw servo

Pump power

4 kw

Voltage

380v/50HZ,3PHASE

Control system

PLC brand

Delta made in Twaiwan

Screen

Touchable screen

Language

Chinese and English or add language as customer need

Decoiler

Operation

Manual

Weight capicatity

3 tons

Price

Free as gift

Receiving table

Operation

Manual

Length

4 m

2. Working Flow

Feeding with guide——Pre-punching——Roll forming——Cutting—Products collecting

3. Machine Components

The wall angle machine can produc common size include 20*20 mm, 25*25 mm, 30*30 mm, 40*40 mm, up to 100-100mm. Product thickness common between 0.3-1.0mm, also we can do thick material 4mm.

This line includes decoiler, hydraulic punching systems to make different holes, also we can design the machine size according to your profile drawing and requirements.

3 ton passive decoiler

1 set

Hydraulic pre-punching device

1 set

Main roll forming machine

1 set

Hydraulic cutting

1 set

PLC control box

1 unit

Hydraulic station

1 unit

Passive out table

 1 unit

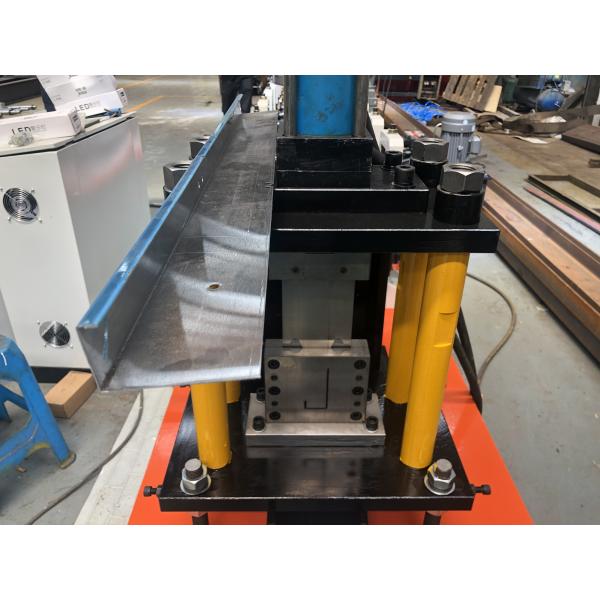

4. Machine Photo

0.8mm Thickness Stainless Steel L Type Corner Angle Roll Forming Machine With PLC Control

0.8mm Thickness Stainless Steel L Type Corner Angle Roll Forming Machine With PLC Control

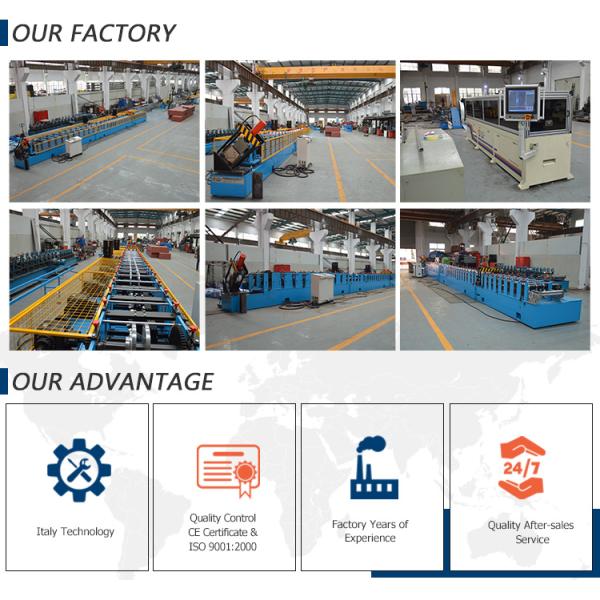

6. Compmany information

0ur factory is more than 5,000m2 and 80 workers,which has 10 machining processing center, assembly area and display area.

Our main production is all kinds of steel profile roll forming machine, specially light steel frame, C Z M Purlin, racking upright, box beam, step beam, cable tray, shutter door, door frame, highway guardrail W beam, strut channel, scaffolding board and roof panel all of different forming machines ect.

The most advantage technology and most professional design software COPRA are introduced to customize international standards of equipment for customers. Equipment produced by our company has the advanced drive system and the whole design. The hydraulic system and motor of the device were integrated within one host, saving equipment space taking, improving convenience and safety in using equipment. All the equipment electrical components were adopted from internationally renowned brand to ensure the good working performance.

0.8mm Thickness Stainless Steel L Type Corner Angle Roll Forming Machine With PLC Control
