0.3-0.8mm Corrugated Roofing Tile Making Machine Galvanized Sheet PPGI Zinc Roof Machine
0.3-0.8mm Corrugated Roofing Tile Making Machine Galvanized Sheet PPGI Zinc Roof Machine
0.3-0.8mm Corrugated Roofing Tile Making Machine Galvanized Sheet PPGI Zinc Roof Machine
0.3-0.8mm Corrugated Roofing Tile Making Machine Galvanized Sheet PPGI Zinc Roof Machine
0.3-0.8mm Corrugated Roofing Tile Making Machine Galvanized Sheet PPGI Zinc Roof Machine
0.3-0.8mm Corrugated Roofing Tile Making Machine Galvanized Sheet PPGI Zinc Roof Machine
0.3-0.8mm Corrugated Roofing Tile Making Machine Galvanized Sheet PPGI Zinc Roof Machine
0.3-0.8mm Corrugated Roofing Tile Making Machine Galvanized Sheet PPGI Zinc Roof Machine
0.3-0.8mm Corrugated Roofing Tile Making Machine Galvanized Sheet PPGI Zinc Roof Machine
0.3-0.8mm Corrugated Roofing Tile Making Machine Galvanized Sheet PPGI Zinc Roof Machine
Specifications
Brand Name :
Sussman
Model Number :
SM-RT
Certification :
CE,SGS,ISO
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 sets per months
Delivery Time :
60 days after deposit
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Name :
Roof panel roll forming machine
Dimension :
About 8000×1600×1200(mm)
Raw material :
0.3-0.8mm PPGI/Galvanized Sheet/ Aluminum
Rolling speed :
12-15m/min(not include cutting time)
Shaft material :
#45 steel with heat treatment
Power(w) :
7.5KW
Voltage :
380v/50 Hz
Use :
Roof/wall
Description

0.3-0.8mm Galvanized Sheet PPGI Corrugated Roofing Tile Making Machine

Technical Parameter

Item NO

Description

Offered specification
1.1 Rolling speed 10-12m/min
1.2 Rolling thickness 0.3-0.8mm
1.3 Raw material Galvanized steel or PPGI or Aluminum
1.4 Main motor 7.5kw
1.5 Hydraulic motor 4kw
1.6 dimension About 8000×1600×1200(mm)
1.7 Roller stations About 24 rollers
1.8 Roller material 45#forge steel, coated with chrome
1.9 Shaft diameter Φ76mm,material is 45# forge steel
1.10 Transmission By chain 1 inch
1.11 Material of chain 45# forged steel with frequency quenching, 12A
1.12 Material of cutting Cr12Mov with quench HRC58-62°
1.13 Tolerance 10m+-1.5mm
1.14 Frame H type steel
1.15 Voltage 380v, 50hz, 3phases or customized


Main Component

S.N

Equipment name

 Quantity
1.

5Tons manual un-coiler

 1 set
2.

Roll forming machine system

 1 set
3.

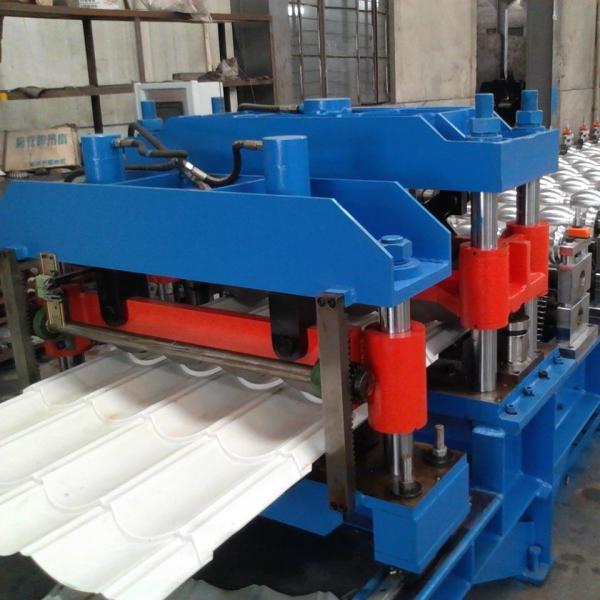

Hydraulic cutting

 1 set
4.

Control system (including control box)

 1 set
5.

Out tables

 2 sets












Working Flow

Decoiler----Feeding with guide---Roll forming---Cutting---Run out tables

Application

Wall panel is widely used in constructions and buildings,it can be used to build roof and wall.

This kind of material can be used in many places such as gyms,warehouses,factories,etc.

0.3-0.8mm Corrugated Roofing Tile Making Machine Galvanized Sheet PPGI Zinc Roof Machine

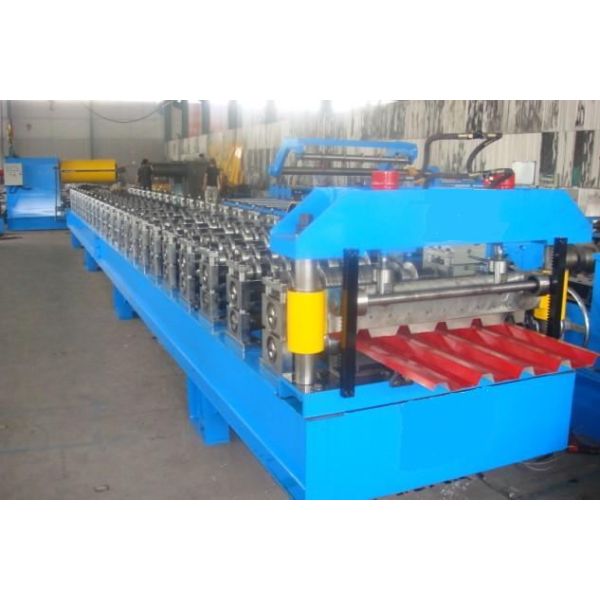

Machine photo

Wall panel machine is used for exterior wall cladding.It is a very moeder design for residential house.This design is used a lot in Australia,New zealand,PNG etc.Considering environmental friendly ,Now people use steel sheet to replace pvc one or wood one.

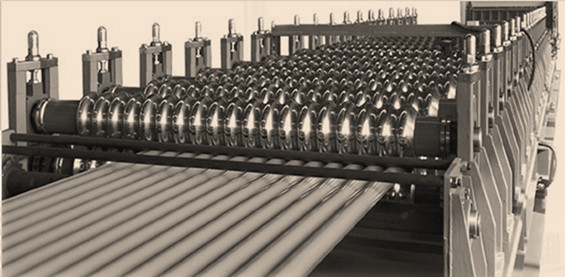

It is composed of manual decoiler,material feeding table,main roll forming,and automatic cutting.It is formed from prepainted galvanuzed coil,color coated gavalume etc.

0.3-0.8mm Corrugated Roofing Tile Making Machine Galvanized Sheet PPGI Zinc Roof Machine

0.3-0.8mm Corrugated Roofing Tile Making Machine Galvanized Sheet PPGI Zinc Roof Machine

0.3-0.8mm Corrugated Roofing Tile Making Machine Galvanized Sheet PPGI Zinc Roof Machine

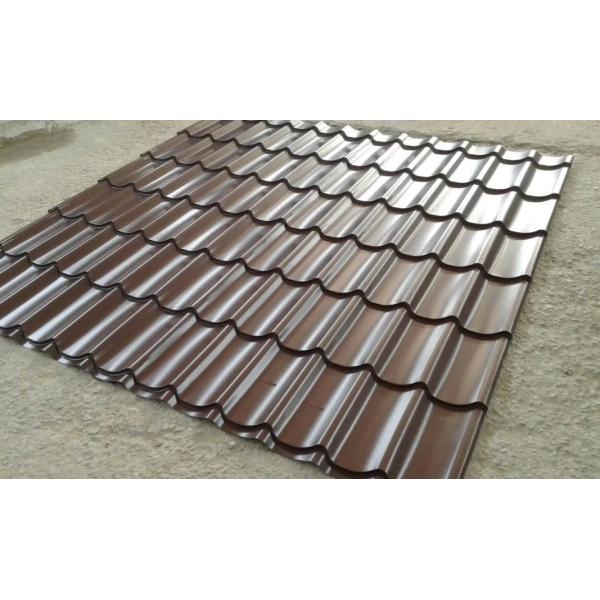

The finished product of wall panel is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc.

It has the advantage of beautiful, classical appearance and grace taste.
