7.5KW Hydraulic Punching Galvanized Metal Sheet Perforation Garage Rolling Shutter Door Machine
7.5KW Hydraulic Punching Galvanized Metal Sheet Perforation Garage Rolling Shutter Door Machine
7.5KW Hydraulic Punching Galvanized Metal Sheet Perforation Garage Rolling Shutter Door Machine
7.5KW Hydraulic Punching Galvanized Metal Sheet Perforation Garage Rolling Shutter Door Machine
7.5KW Hydraulic Punching Galvanized Metal Sheet Perforation Garage Rolling Shutter Door Machine
7.5KW Hydraulic Punching Galvanized Metal Sheet Perforation Garage Rolling Shutter Door Machine
7.5KW Hydraulic Punching Galvanized Metal Sheet Perforation Garage Rolling Shutter Door Machine
7.5KW Hydraulic Punching Galvanized Metal Sheet Perforation Garage Rolling Shutter Door Machine
Specifications
Brand Name :
Sussman
Model Number :
SM-SD-045
Certification :
CE, SGS, ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 15,000 per set
Supply Ability :
5 sets per month
Delivery Time :
30-90 days
Packaging Details :
standard film
working speed :
12-15m/min
Material :
0.7-1.2mm, Galvanized coils
Material of rollers :
GCr15 steel
Forming steps :
about 12 steps
Electronic control :
Plc control Delta
Cutting :
hydraulic cutting; quenching HRC58-62
Chains' material :
45# steel
Drive system :
7.5 KW
Description

7.5 KW Hydraulic Punching Galvanized Metal Sheet Perforation Garage Rolling Shutter Door Machine

Rolling shutter doors are produced by rolling shutter machines and are used for parking lot doors and home doors, store front displays and garages, etc. They are very sturdy and a sage to the property. Therefore, roller shutters provide adequate protection and security against theft and fire. These doors are stronger if sufficient steel thickness is used.

The technique data
1. 1. Materials to form shutter door: 7-1.2mm, Galvanized coils
2. 2. Forming steps: about 12 steps
3. 3. Material of rollers: GCr15 steel, precision-machined, high frequency quenching HRC58-62, diameter of rollers: ＞￠150
4. 4. Material of main shaft : 45# high quality steel (diameter＞￠50)
5. 5. Chains’ material: 45# steel, high frequency quenching, circular pitch:38.1; number of teeth: 13
6. 6. Cutting : hydraulic cutting; quenching HRC58-62
7. 7. Electronic control: PLC control (Delta)
8. 8. Dimension of machine: 6500mmX800mmX800mm, total line about 20 meters per min.
9. Drive system: chain drive, 5.5KW main motor power, working speed:10-12m/minwithout the punching, if with punching, about 1-2 meters per min.
10. Lubrication system: with pipes
Working flow:
Decoiler—→Level device—→Main roll forming machine—→Hydraulic punching—hydraulic cutting→ Run out table
Machine List
Name
Quantity (set)
De-coiler
1set
Hydraulic cutting device
1set
Main roll forming machine with lubrication
1set
Hydraulic cutting device
1set

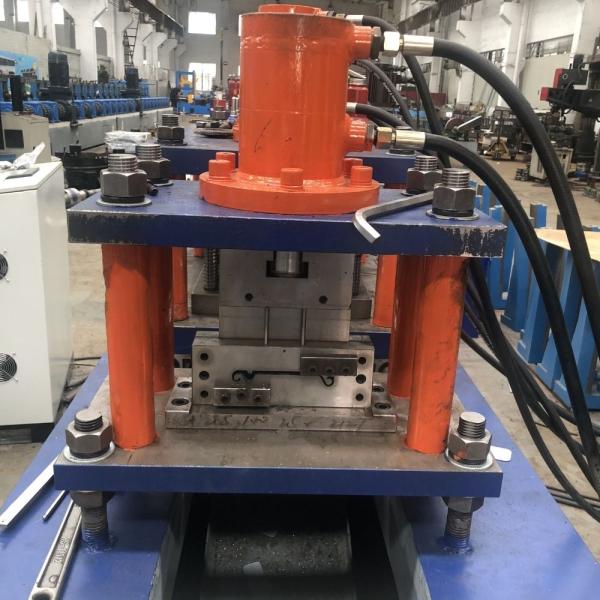

Hydraulic punching for Punching Waist Hole& Riveted(remachado) System
5 sets
Run out table
2 sets
Control box
1set

7.5KW Hydraulic Punching Galvanized Metal Sheet Perforation Garage Rolling Shutter Door Machine

Profile drawing

7.5KW Hydraulic Punching Galvanized Metal Sheet Perforation Garage Rolling Shutter Door Machine

Machine Shows

7.5KW Hydraulic Punching Galvanized Metal Sheet Perforation Garage Rolling Shutter Door Machine

7.5KW Hydraulic Punching Galvanized Metal Sheet Perforation Garage Rolling Shutter Door Machine

7.5KW Hydraulic Punching Galvanized Metal Sheet Perforation Garage Rolling Shutter Door Machine
