40m/Min High Speed Trapezoidal Or Corrugated Roof Roll Forming Machine
40m/Min High Speed Trapezoidal Or Corrugated Roof Roll Forming Machine
40m/Min High Speed Trapezoidal Or Corrugated Roof Roll Forming Machine
40m/Min High Speed Trapezoidal Or Corrugated Roof Roll Forming Machine
40m/Min High Speed Trapezoidal Or Corrugated Roof Roll Forming Machine
40m/Min High Speed Trapezoidal Or Corrugated Roof Roll Forming Machine
40m/Min High Speed Trapezoidal Or Corrugated Roof Roll Forming Machine
40m/Min High Speed Trapezoidal Or Corrugated Roof Roll Forming Machine
40m/Min High Speed Trapezoidal Or Corrugated Roof Roll Forming Machine
40m/Min High Speed Trapezoidal Or Corrugated Roof Roll Forming Machine
Specifications
Brand Name :
Sussman
Model Number :
SM-RP
Certification :
CE ISO SGS
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T L/C
Supply Ability :
10 sets per months
Delivery Time :
65 days after deposit
Packaging Details :
Standard packing
Sheet Thickness :
0.4-0.7mm Color Sheet
Hydraulic power :
5.5Kw
Material Thickness :
0.4-0.7mm color steel or galvanized steel
Roller statione :
16 stations
Main Motor Power :
7.5kw
Way Of Drive :
1.2 inch single chain
Speed :
40M/min
Drive :
Gearbox
Description

40m/Min High Speed Trapezoidal Or Corrugated Roof Roll Forming Machine

Technical parameter:

Rolling Speed: 0-40m/min

Feeding width: 1250mm

Steel sheet Thickness: 0.3-0.8 mm galvanized sheet, color painted coils Grade 37-40

Control System: PLC Siemens

Roller Stations: about 20 stations

Roller Material : 45# forge steel, coated with chrome

Shaft Material and DIA: ￠75mm,material is 45# forge steel, Chrome with quenching

Motor Power: 11kw main motor+3KW servo motor

Hydraulic power: 5.5kw

Hydraulic Pressure: 12Mpa

Tolerance: +1.5mm

Power supplier: 380V, 50HZ,3 phase

Way Of Drive: Gear Box

The size of the forming machine: 10500*1500*1200mm

Machine weight: about 12 tons

Machine list 5 tons hydraulic de-coiler 1 set
Main roll forming machine 1 set
Servo following cutting 1 set
PLC Control box 1 unit
Hydraulic station 1 unit
3M Conveying platform 1 set
12M auto stacker 1 set
Safety cover 1 set
Spare parts 1 set


working flow

40m/Min High Speed Trapezoidal Or Corrugated Roof Roll Forming Machine

Profile Drawing

40m/Min High Speed Trapezoidal Or Corrugated Roof Roll Forming Machine

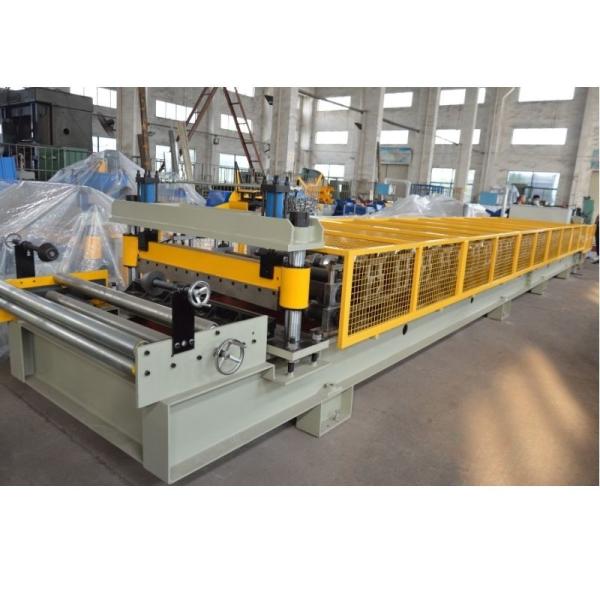

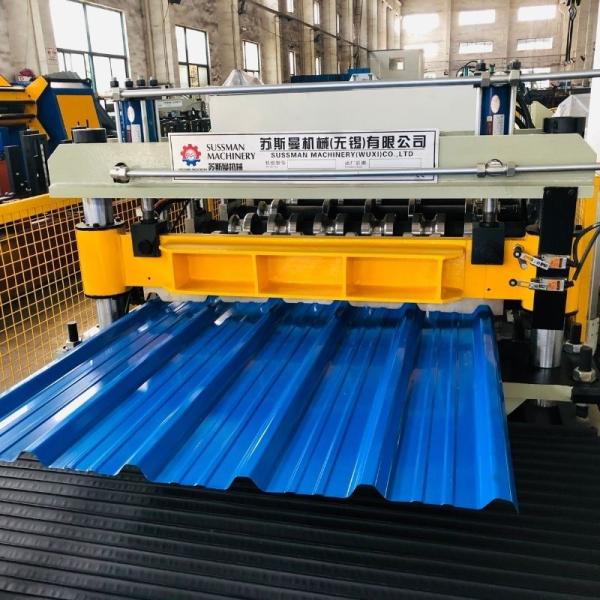

Machine Shows

40m/Min High Speed Trapezoidal Or Corrugated Roof Roll Forming Machine

40m/Min High Speed Trapezoidal Or Corrugated Roof Roll Forming Machine
