Specifications
Brand Name :
Sussman
Model Number :
SM-RB
Certification :
CE ISO 9001
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 set per month
Delivery Time :
60days
Packaging Details :
Standard Packing with steel wire fixed and film coated
Length of the beam :
1200-4000 mm
Turn over system :
By cylinder, gear
PLC :
Delta brand
Clamping :
By pneumatic
Main motor :
2kwX2 stepping motor
Welding guns :
4 sets or 6 sets
Description

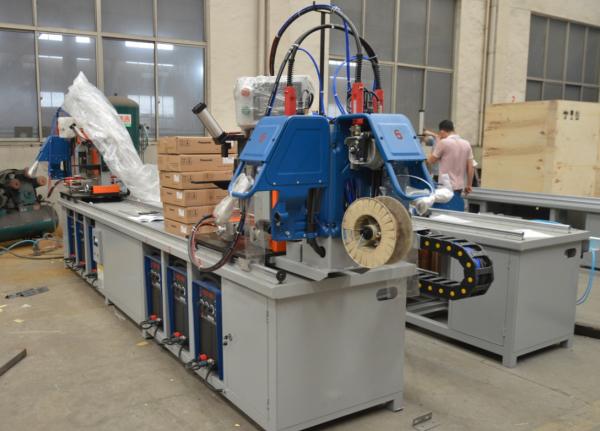

Automatic Shelves Beam Welding Machine Welding 6 Guns Box Beam Welding Equipment

Beam Welding Machine Main Specifications

Item Description
Welding edge 4 sides beam welding machine
Length of the beam 1200-4000mm
Material thickness 0.8-4.0 mm
Diameter of the welding wire 0.8-1.0 mm
Model of the welding unit TC-315F IGBT
Number of welding unit 4 sets welding guns
Number of air cylinder 18 sets
Main motor 2kwX2 stepping motor
Voltage 380V, 50HZ, 3 phase
Clamping By pneumatic
Turn over system By cylinder, gear and rack
Horizontal push to adjust the length By liner guide way and fix by manual
Size of the machine About 5.2mX1.0mX1.9m
Machine weight About 1200kgs
Gas CO2 or 80%Ar+20%CO2
Length Tolerance 0mm to -4mm(Maximum single side -2mm)
Welding speed About 100-180pcs/hour



Rack Beam Profile reference
