3 Tons Decoiler 0.4mm Color Steel Aluminum Long Grid Standing Seam Roofing Machine
3 Tons Decoiler 0.4mm Color Steel Aluminum Long Grid Standing Seam Roofing Machine
3 Tons Decoiler 0.4mm Color Steel Aluminum Long Grid Standing Seam Roofing Machine
3 Tons Decoiler 0.4mm Color Steel Aluminum Long Grid Standing Seam Roofing Machine
3 Tons Decoiler 0.4mm Color Steel Aluminum Long Grid Standing Seam Roofing Machine
3 Tons Decoiler 0.4mm Color Steel Aluminum Long Grid Standing Seam Roofing Machine
3 Tons Decoiler 0.4mm Color Steel Aluminum Long Grid Standing Seam Roofing Machine
3 Tons Decoiler 0.4mm Color Steel Aluminum Long Grid Standing Seam Roofing Machine
Specifications
Brand Name :
Sussman
Model Number :
SM-GT
Certification :
CE,SGS,ISO
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T L/C
Supply Ability :
10 sets per months
Delivery Time :
60 days after deposit
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Material Thickness :
0.4-0.8mm PPGI/Galvanized Sheet
Forming Stations :
25 roller stations
Shaft material :
#45 steel with heat treatment
Power supply :
7.5KW
Cutting blade material :
cr12 with quenched treatment
Weight :
About 8 tons
Description

3 Tons Decoiler 0.4-0.8 mm Color Steel Aluminum Long Grid Wall Panel Roll Forming Machine For Decoration

Technical Parameter

Item NO

Description

Offered specification
1.0 Roll forming machine
1.1 Rolling speed About 0-15m/min
1.2 Rolling thickness 0.4-0.8mm
1.3 Raw material Galvanized steel coils or PPGI or Aluminum
1.4 Main motor 7.5kw
1.5 Hydraulic motor 5.5kw
1.6 dimension 9500×800×1000mm
1.7 Roller stations About 25 stations
1.8 Roller material 45#forge steel, coated with chrome
1.9 Shaft diameter Φ70mm,material is 45# forge steel
1.10 Transmission By chain 1 inch
1.11 Material of chain 45# forged steel with frequency quenching, 12A
1.12 Material of cutting Cr12Mov with quench HRC58-62°
1.13 Tolerance 6m+-0.5mm
1.14 Frame H type steel
1.15 Voltage 380v, 50hz, 3phases


Main Components

S.N

Equipment name

 Quantity
1.

5T manual un-coiler

 1 set
2.

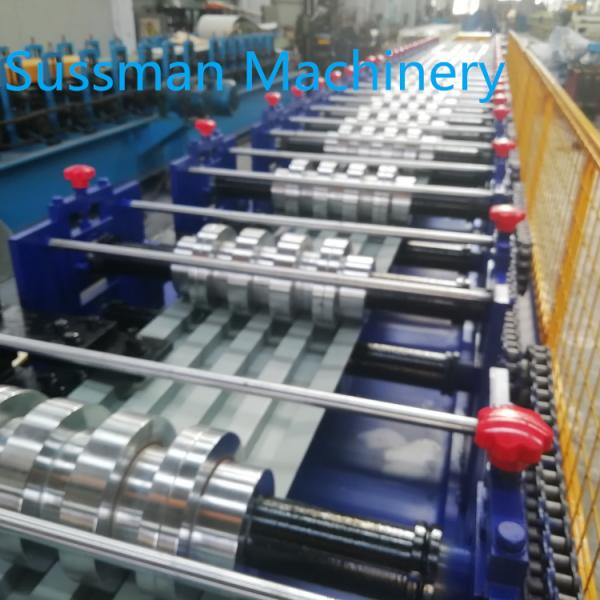

Main roll forming machine system

 1 set
3.

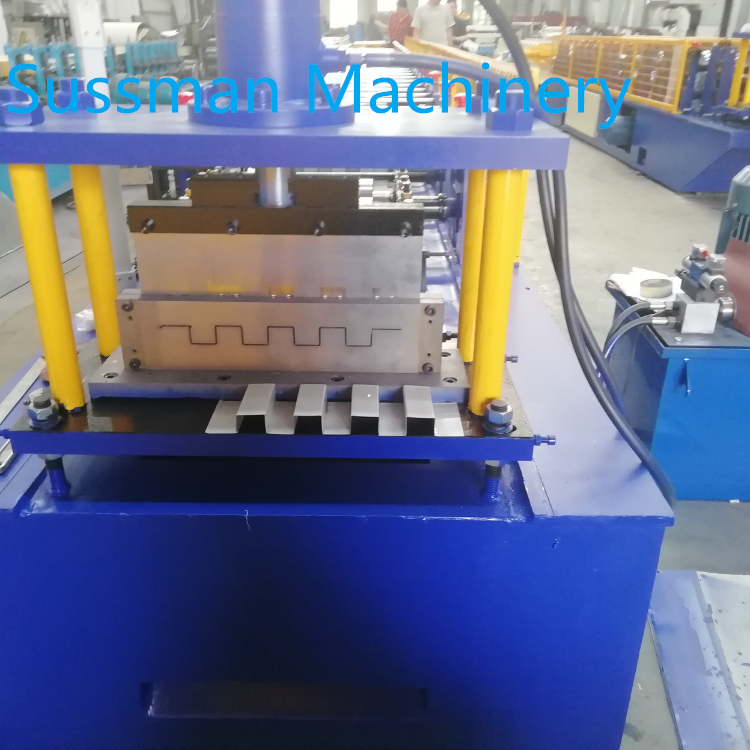

Hydraulic cutting

 1 set
4.

Control system (including control box)

 1 set
5.

2m Out tables

 2 sets












Working Flow

Decoiler----Feeding---Roll forming---Cutting---Run out tables

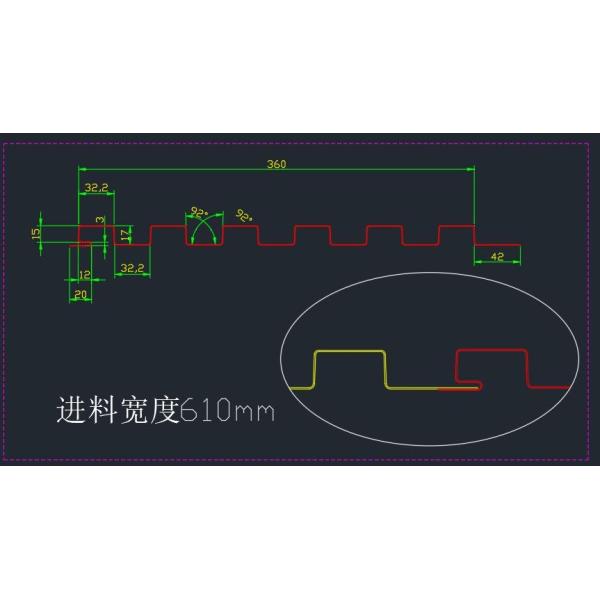

Profile drawing

3 Tons Decoiler 0.4mm Color Steel Aluminum Long Grid Standing Seam Roofing Machine

3 Tons Decoiler 0.4mm Color Steel Aluminum Long Grid Standing Seam Roofing Machine




Application

The finished product of wall panel is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc.

It has the advantage of beautiful, classical appearance and grace taste.

3 Tons Decoiler 0.4mm Color Steel Aluminum Long Grid Standing Seam Roofing Machine

3 Tons Decoiler 0.4mm Color Steel Aluminum Long Grid Standing Seam Roofing Machine
