Peru TR4 And Corrugated Double Layer Roll Forming Machine 10-12 Meters/Min
Peru TR4 And Corrugated Double Layer Roll Forming Machine 10-12 Meters/Min
Peru TR4 And Corrugated Double Layer Roll Forming Machine 10-12 Meters/Min
Peru TR4 And Corrugated Double Layer Roll Forming Machine 10-12 Meters/Min
Peru TR4 And Corrugated Double Layer Roll Forming Machine 10-12 Meters/Min
Peru TR4 And Corrugated Double Layer Roll Forming Machine 10-12 Meters/Min
Peru TR4 And Corrugated Double Layer Roll Forming Machine 10-12 Meters/Min
Peru TR4 And Corrugated Double Layer Roll Forming Machine 10-12 Meters/Min
Specifications
Brand Name :
Sussman
Model Number :
DL-RP-T
Certification :
ISO 9001 SGS
Place of Origin :
China
MOQ :
1
Price :
USD 30000 per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5 sets per month
Delivery Time :
50 days
Packaging Details :
Normal packing
Name :
TR4 Corrugated Double Layer Roll Forming Machine
Thickness :
0.3mm-0.8mm
Working Speed :
10-12 Meters/min
Main Motor :
7.5KW
Voltage :
380V 50Hz 3phases
After-sales service provided :
Engineers available to service machinery overseas
Description

Peru TR4 And Corrugated Double Layer Roll Forming Machine 10-12 Meters/Min

Technique Data

Item NO

Description

Offered specification
1.1 Rolling speed 0-12m/min(not include cutting time)
1.2 Rolling thickness 0.3mm-0.8m
1.3 Raw material Color painted coils, Aluzinc
1.4 Main Motor 7.5KW
1.6 Dimension About 8000×1600×1200(mm)
1.7 Effective width 1000mm
1.8 Feeding Coil width 1200mm
1.9 Roller stations

About 18 stations
1.10 Roller material 45#forge steel, coated with chrome
1.11 Shaft diameter Φ76mm
1.12 Transmission By chain 1.2 inch
1.13 Material of chain 45# forged steel with frequency quenching, 12A
1.14 Material of cutting Cr12Mov with quench HRC58-62°
1.15 Tolerance 10m+-1.5mm
1.16 Hydraulic station 4kw

Working Flow:

Uncoiling—Feedingwithguide—Roll forming—cutting—Products collecting

Peru TR4 And Corrugated Double Layer Roll Forming Machine 10-12 Meters/Min

Profile Drawing:

Peru TR4 And Corrugated Double Layer Roll Forming Machine 10-12 Meters/Min

Peru TR4 And Corrugated Double Layer Roll Forming Machine 10-12 Meters/Min

Finished Products:

Peru TR4 And Corrugated Double Layer Roll Forming Machine 10-12 Meters/Min

Peru TR4 And Corrugated Double Layer Roll Forming Machine 10-12 Meters/Min

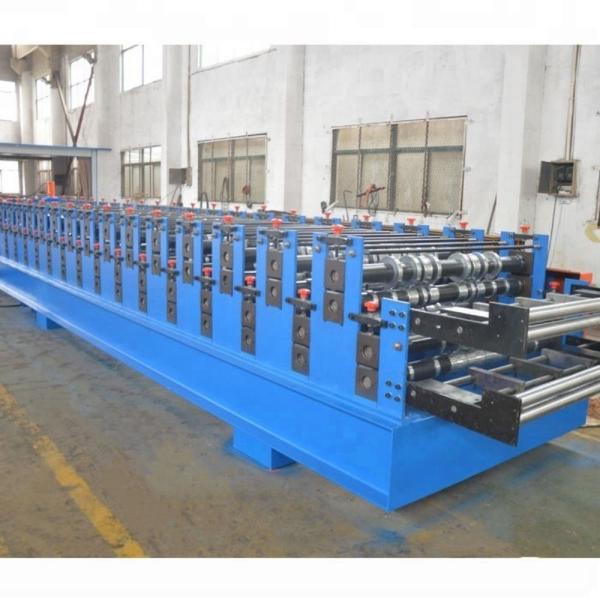

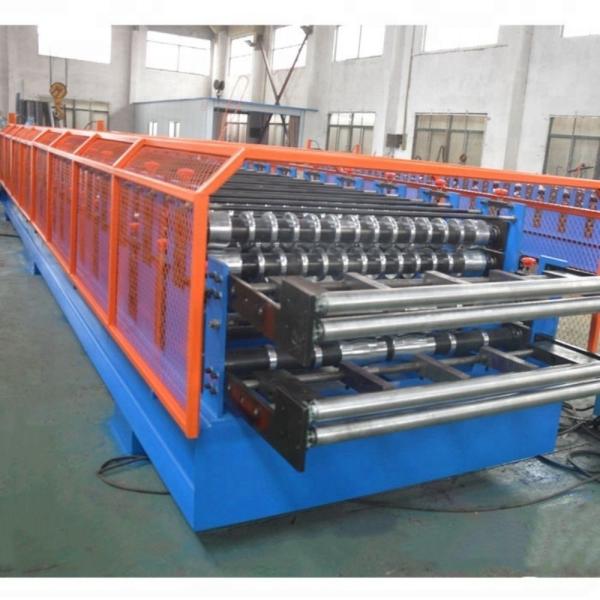

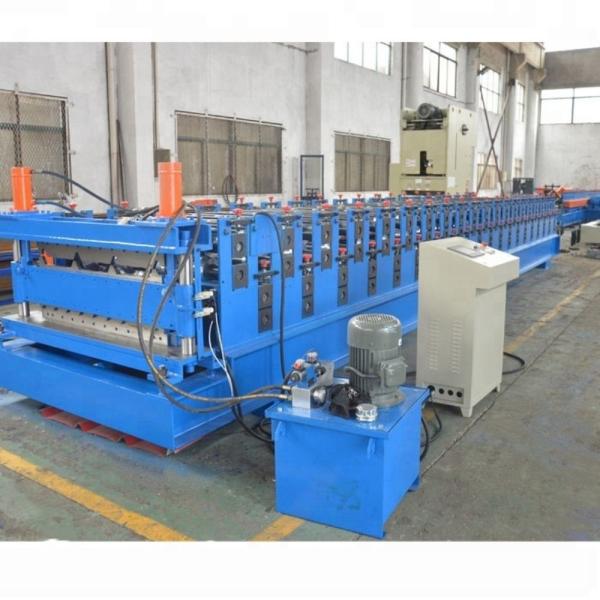

Machine Show:

Peru TR4 And Corrugated Double Layer Roll Forming Machine 10-12 Meters/Min

Our After-Sales Service Commitments

Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipments sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipments, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipments, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts

The detailed measures are as follows:

1.Guidelines for installation and commissioning of equipments:

Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipments, and provide Buyer with answers to their questions and related issues;

2.Provide training for operation and maintenance personnel:

Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;

a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;

b) When Sussman is doing the installation and test running of the equipments for the Buyer, the Buyer can send their personnel to participate.

3.If failure occurs in any of the machines during the “three guarantees” period(one year), three guarantees including the electricity parts, the rolls, the shafts and punching& cutting moulds, then, upon the Buyer’s request, Sussman will eliminate the failure;

4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.

We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email
