Stainless Steel 10*10mm Rack Roll Forming Machine With Servo Following Cutting
Stainless Steel 10*10mm Rack Roll Forming Machine With Servo Following Cutting
Stainless Steel 10*10mm Rack Roll Forming Machine With Servo Following Cutting
Stainless Steel 10*10mm Rack Roll Forming Machine With Servo Following Cutting
Stainless Steel 10*10mm Rack Roll Forming Machine With Servo Following Cutting
Stainless Steel 10*10mm Rack Roll Forming Machine With Servo Following Cutting
Specifications
Brand Name :
Sussman
Model Number :
SM-SD
Certification :
CE,SGS,ISO
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T L/C, Western Union, MoneyGram, D/P
Supply Ability :
10 sets per months
Delivery Time :
60 days after deposit
Packaging Details :
Standard packing
Material Thickness :
0.6 mm stainless steel
Forming Speed :
0-10 m/min
Main Motor Power :
5.5Kw
Forming Stations :
15 stations
Hydraulic power :
4Kw
Drives method :
Gear
Machine weight :
3T
Size :
10*10mm and 14*10mm
Description

Stainless Steel 10*10mm 14*10mm U Truck Roll Forming Machine With Servo Following Cutting

1. Technical Parameter

1
Raw Material
Type
 Stainless steel
Thickness
0.3-0.6mm
2
Decoiler
Operation
Manual/ Hydraulic for option
Weight Capacity
3T
3
Main Body
Roller Station
15 rollers
Diameter of Shaft
60mm
Material of Rollers
 Gcr15
Material of shaft
45# steel with chrome 0.05mm
Transmission
Gear or Chain
4
Cutter
Operate
Automatic Hydraulic / Manual type
Blade material
Cr12MOV
5
Power
Pump motor for cutter
4KW
Main Motor
5.5KW
Voltage
380V 50Hz 3 Phase
6
Control system
Electric Box
PLC control system , Inverter
Language
English / Chinese
7
Speed
0-10M/min

2. Main Components

It is composed of passived-decoiler, feeding system, roll forming machine, hydraulic cutting machine, collection table, electrical control system.

S.N Equipment name
 Quantity
1 3T manual un-coiler
 1 set
2 Feeding and guide device
 1 set
3 Main roll forming machine
 1 set
4 Hydraulic cutting device
 1 set
5 Control system
 1 set
6 Out tables
 2 sets
7 Spare Parts
 1 packages

3.Profiles of products

Stainless Steel 10*10mm Rack Roll Forming Machine With Servo Following Cutting

Stainless Steel 10*10mm Rack Roll Forming Machine With Servo Following Cutting

4. Detailed Machine component description

3T Manual Uncoiler

1 Inner diameter: 460-520mm

2 Steel coil width: 100-200mm

3 Coil placement in the coil holder: hydraulic hoist

4 Working speed: adjustable

Main roll forming machine

In order to keep the product shape and precision, adopts welded

sheet structure, motor reducer drive, chain transmission,roller was

chromed which can keep the molding plate surface smooth

Stainless Steel 10*10mm Rack Roll Forming Machine With Servo Following Cutting

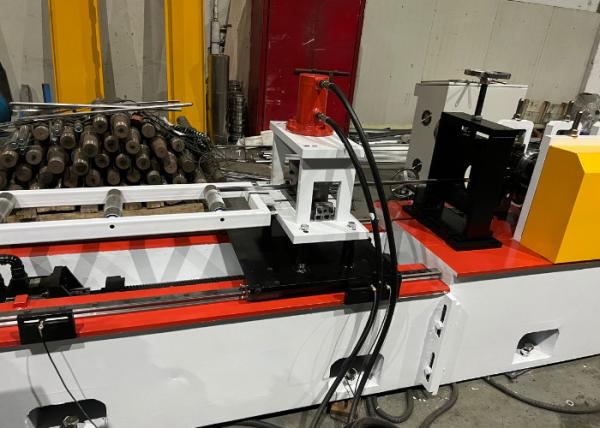

Hydraulic Cutting way

(1) Cutting motion: The main machine stops and then cut automatically. After cutting, the main machine re-starts automatically.

(2) Material of blade: CR12Mov with heat treatment

(3) Length measuring: Automatically

(4) Tolerance of length: + 1.0mm

(5) In order to get the perfect profiles, we recommend the post hydraulic cutting by changing the cutting moulds. It is easy to operate.

Control Box

Adopted PLC , transducer, touch panel to ensure high speed with stability, precision and lifetime.

(1) Power supplier: 380V, 50 Hz, 3 Phase (adjusted with the requestment)

(2) Length & quantity measurement automatically;

(3) Length & quantity controlled by PLC

(4) Length inaccuracy can be amended easily.

(5) Control panel: Button-type switch and touch screen

(6) The language in the touch screen: English and Chinese

(7) Unit of length: millimeter (switched on the control panel)
