Specifications
Brand Name :
Sussman
Model Number :
Tile capping 01
Certification :
ISO 9001 SGS
Place of Origin :
Wuxi,China
MOQ :
1
Price :
USD 39000
Payment Terms :
T/T
Supply Ability :
5 Sets per month
Delivery Time :
90 days
Packaging Details :
Naked packing
Thickness :
0.3mm-0.8mm
Rolling Speed :
5-10 meters/min
Roller Station :
18 Stations
Motor Power :
7.5KW
Description


7.5 KW Motor Power Ridge Capping Roll Forming Machine with Perforation


The Main Description:

Items

Specifications

Material of coilMaterial Thickness0.3—0.8mm
Un Coiler3 tons manual
Forming systemRolling Speed5-10m/min
Roller Stations18 stations
Roller material45# steel, coated with chrome
Maim Motor Power7.5kw

Hydraulic cutting Power

7.5kw

Cutting
system

Material Of CuttingCR12 with quench treatment
HardnessHRC58-62
Tolerance+-1.5mm
Electrical control systemElectric Source

220V, 60HZ,3 phase
Also can satisfy customer’s require

Control SystemPLC with touch screen
Way Of Drive1.2 inch single chain

Packing
information

Color of the machineblue


Machine List:

3 ton passive de-coiler1 set
Hydraulic Punching device1 set
Main roll forming machine1 set
Punching press mould1 set
Control box1 unit
Hydraulic station1 unit
Out table1 unit


Working Flow:

Uncoiling—Feeding—Punching— Roll forming—Cutting—Products collecting


Machine Pictures:

7.5 KW Motor Power Ridge Capping Roll Forming Machine with Perforation
7.5 KW Motor Power Ridge Capping Roll Forming Machine with Perforation

Application:
7.5 KW Motor Power Ridge Capping Roll Forming Machine with Perforation
7.5 KW Motor Power Ridge Capping Roll Forming Machine with Perforation

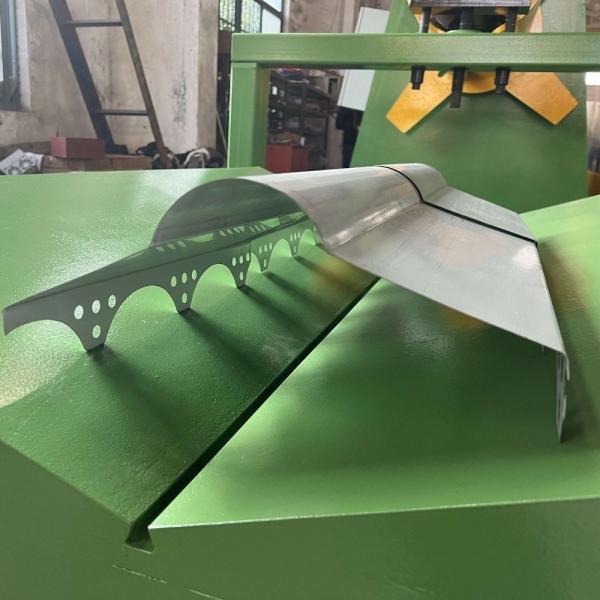

Finished Products:

7.5 KW Motor Power Ridge Capping Roll Forming Machine with Perforation
7.5 KW Motor Power Ridge Capping Roll Forming Machine with Perforation
7.5 KW Motor Power Ridge Capping Roll Forming Machine with Perforation
