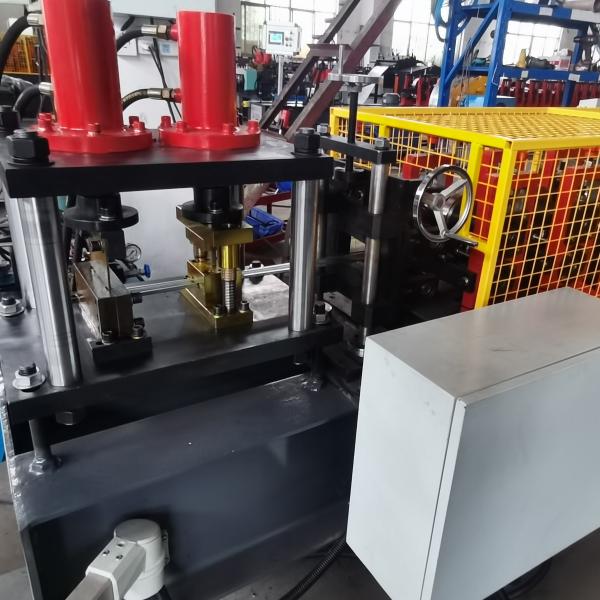

Steel 1.2 - 1.5mm Thickness Electrical Din Rail Top Hat Rail TS35 Roll Forming Machine 5.5KW
Steel 1.2 - 1.5mm Thickness Electrical Din Rail Top Hat Rail TS35 Roll Forming Machine 5.5KW
Steel 1.2 - 1.5mm Thickness Electrical Din Rail Top Hat Rail TS35 Roll Forming Machine 5.5KW
Steel 1.2 - 1.5mm Thickness Electrical Din Rail Top Hat Rail TS35 Roll Forming Machine 5.5KW
Steel 1.2 - 1.5mm Thickness Electrical Din Rail Top Hat Rail TS35 Roll Forming Machine 5.5KW
Steel 1.2 - 1.5mm Thickness Electrical Din Rail Top Hat Rail TS35 Roll Forming Machine 5.5KW
Specifications
Brand Name :
Sussman
Model Number :
SM-RM
Certification :
SGS, ISO9001, CE
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
60 days after deposit
Packaging Details :
Standard packing
Material :
1.2-1.5MM Steel
Forming speed :
8-12m/min
Forming stations :
About 10 stations
Decoiler :
3 Tons manual one
Roller material :
Gcr15 steel with quenching
Product name :
top hat rail making machine
Machine weight :
3 tons
Container :
need 20 feet container
Description

Steel 1.2 - 1.5mm Thickness Electrical Din Rail Top Hat Rail (TS35) Roll Forming Machine 5.5KW

Technical parameter

Item

Technical data

Steel sheet thickness

1.3-1.5mm galvanized steel,PPGI,GI

Hydraulic power

5.5kw

Transmission way

chain

Decoiler

3 Tons passive

Forming Speed

8-12m/min

Roller Groups

about 12 rollers

Roller Material

45# high grade steel with finish machining treatment, by high frequency quenched HRC58-62

Roller Diameter

60mm

Principal Axis

45# high grade steel with quenching treatment

Main Motor Power

4 KW

Dimension

About 4.5*0.8*1.200m

Main Components

Machine name Quantity
3T passive uncoiler 1 set
Main roll forming system 1 set
Hydraulic stop cutting system 1 set
4 meters out tables 1 ste
PLC control box system 1 set
Toll box 1 package
Safety cover 1 unit

Din rail profile

A DIN rail is a standardized metal rail used to mount electrical components such as circuit breakers, relays, and other devices inside electrical panels or enclosures. The name "DIN" stands for Deutsches Institut für Normung, which is the German Institute for Standardization, as the rail's dimensions and specifications were originally standardized by this organization.

DIN rails are typically made of steel or aluminum and come in different profiles, the most common being:

  1. Top hat rail (TS35): The most widely used type, with a 35mm width, often referred to as TS35. This profile has a shape resembling the letter "hat" when viewed from the side.

  2. C-rail: A channel-shaped rail used for heavier-duty applications.

  3. G-rail: A less common variant.

Steel 1.2 - 1.5mm Thickness Electrical Din Rail Top Hat Rail TS35 Roll Forming Machine 5.5KW

Applications

Steel 1.2 - 1.5mm Thickness Electrical Din Rail Top Hat Rail TS35 Roll Forming Machine 5.5KW

Hat Type Din Rail Machine Advantage

1.The roller is solid and electroplated, which will not have rust

2.The material are all national standard.

3.The board is cost iron frame and all milled and polished.

4. Only need one main power wire

5. Two people to operate it

6. Compacted machine to save space

Steel 1.2 - 1.5mm Thickness Electrical Din Rail Top Hat Rail TS35 Roll Forming Machine 5.5KW

Steel 1.2 - 1.5mm Thickness Electrical Din Rail Top Hat Rail TS35 Roll Forming Machine 5.5KW
