Specifications
Brand Name :
Sussman
Model Number :
SM-DR
Certification :
CE
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T L/C
Supply Ability :
10 sets per months
Delivery Time :
75days after deposit
Packaging Details :
Standard packing
Material Thickness :
0.6-1.2mm galvanized steel
Forming Speed :
0-12m/min
Forming Stations :
10 stations
Shaft material :
Gcr15 high grade steel
coil inner diameter :
460-520MM
Machine weight :
About 4 tons
Description

0.6-1.2mm PPGI V Shaped Steel Rack Mesh Deck Roll Forming Machine
U channel machine Technical Parameter

Name

Items

Specifications

Material of coil

Material Thickness

0.6-1.2mm Galvanized steel

Forming system

Rolling Speed

About 0-12m/min

Roller Stations

About 10 stations

Roller Material

Gcr15 Steel with quenching, 60mm shaft

Shaft

60mm

Maim Motor Power

5.5kw

Hydraulic cutting Power

5.5kw

Electrical parts

Schneider

Cutting

system

Material Of Cutting

CR12mov with quench treatment

Hardness

HRC58-62

Tolerance

+-1.5mm

Electrical control system

Electric Source

220V, 60HZ,3 phase

Control System

PLC Delta

Weight

About 4.5 tons

Way Of Drive

2 inches single chain

Size of machine

Length 4500mm* Width 800mm* Height 1000m


U channel machine components

S.N

Equipment name

Quantity

1.

3Tons automatic un-coiler

1 set

2.

Feeding with guide

1 set

3.

Main roll forming machine

1 set

4.

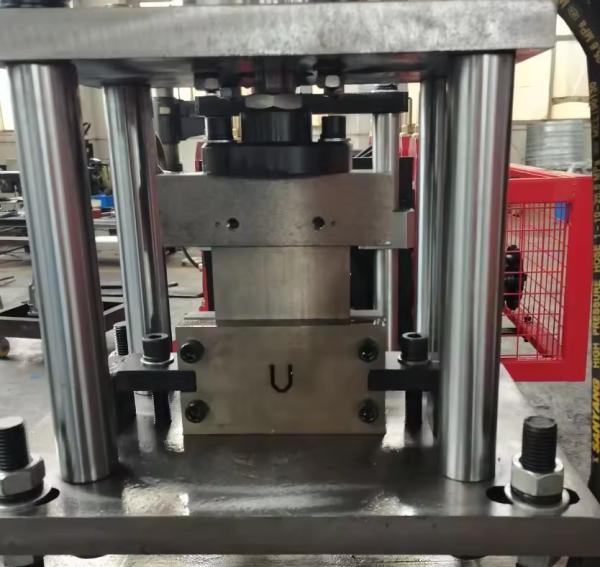

Hydraulic cutting

1 set

5.

Control box system (including control box)

1 set

6.

4 meters out table

 1 set
















Working Flow of U channel machine

This U channel machine includes decoiler, roll forming system, hydraulic cutting system and out put tables.

The finished u channel product used for mesh deck on upright racking system

Decoiler----Feeding with guide--Roll forming--- hydraulic cutting---Run out tables


Profiles of U channel


0.6-1.2mm PPGI V Shaped Steel Rack Mesh Deck Roll Forming Machine

0.6-1.2mm PPGI V Shaped Steel Rack Mesh Deck Roll Forming Machine

0.6-1.2mm PPGI V Shaped Steel Rack Mesh Deck Roll Forming Machine

0.6-1.2mm PPGI V Shaped Steel Rack Mesh Deck Roll Forming Machine

0.6-1.2mm PPGI V Shaped Steel Rack Mesh Deck Roll Forming Machine

0.6-1.2mm PPGI V Shaped Steel Rack Mesh Deck Roll Forming Machine
