1.0-2.0mm Thickness V Profile Steel U Channel Steel Profile Cold Roll Forming Machine
1.0-2.0mm Thickness V Profile Steel U Channel Steel Profile Cold Roll Forming Machine
1.0-2.0mm Thickness V Profile Steel U Channel Steel Profile Cold Roll Forming Machine
1.0-2.0mm Thickness V Profile Steel U Channel Steel Profile Cold Roll Forming Machine
1.0-2.0mm Thickness V Profile Steel U Channel Steel Profile Cold Roll Forming Machine
1.0-2.0mm Thickness V Profile Steel U Channel Steel Profile Cold Roll Forming Machine
1.0-2.0mm Thickness V Profile Steel U Channel Steel Profile Cold Roll Forming Machine
1.0-2.0mm Thickness V Profile Steel U Channel Steel Profile Cold Roll Forming Machine
Specifications
Brand Name :
SUSSMAN
Model Number :
SS-RS
Certification :
CE.SGS.ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD65000-85000 Per Set
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
Shipped in 90 days after payment
Packaging Details :
Standard package with film, plastic and steel wire. (or customized)
Type :
U Channel Roll Forming Machine
Material :
0.7-1.2mm Galvanized steel
Forming Steps :
9 stations
Motor Power :
5.5KW
Application :
Woven Wire Mesh, reforcement steel
Weight :
2.5 tons
Warranty :
one year
Speed :
8-12m/min
Description

1.0-2.0mm Thickness V Profile Steel U Channel Steel Profile Cold Roll Forming Machine

Part Details Item Name Specification
Material Raw Material Galvanized steel
Thickness 0.7-1.2 mm
Machine Roller Station 9
Shaft Material 60 mm
Shaft Material 45# steel with 0.05mm chrome
Roller Material 45# high grade steel
Machine Size About 4.2*0.8*1.0 m
Machine Weight About 2.5 ton
Machine Color As customer request
Working Speed 8-12m/min
Cutter Hardness 5 8-62HRC
Cutting Tolerance ± 1mm
Material CR12
Operate Hydraulic cutting
Power Driving Way Chain 1 inch
Main Power 5.5KW
Pump Power 4KW
Voltage 380v 50hz 3P, or Customize as Customer' request
Control System PLC Brand Delta made in Taiwan
Screen Touchable Screen
Language Chinese, English or Add customer' need
Decoiler Operation Manual
Weight Capacity 3 ton
Receiving Table Operation Manual
Length 2m,2 units

Technological process:
Uncoiling—feedingwithguide—Rollforming——stop cutting—products collecting
Machine List:
3 Tons de-coiler
1 set
Roll forming machine
1 set
PLC Control box
1 set
Hydraulic station
1 unit
Stop cutting device
1 unit
3 meters auto stacker
1 unit

Application:

Metal u channel trim can be used individually, or in nested horizontal and vertical sets to provide endless options for covering the edges of woven wire fabric panels and perforated metal sheeting.

1.0-2.0mm Thickness V Profile Steel U Channel Steel Profile Cold Roll Forming Machine

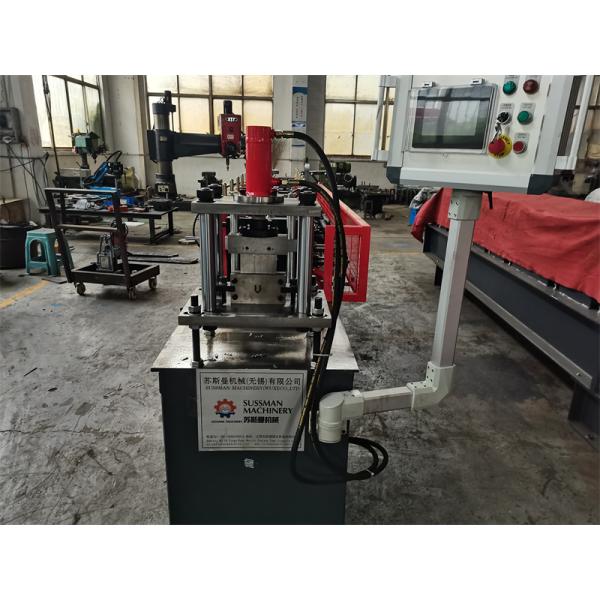

Machine photo

High precision product,PLC control.
Full auto operation.
1. Customized Machines
2. Professional Designed
3. Quality Assurance Team
4. Technical Support
5. Excellent Quality Production Guaranteed

1.0-2.0mm Thickness V Profile Steel U Channel Steel Profile Cold Roll Forming Machine
