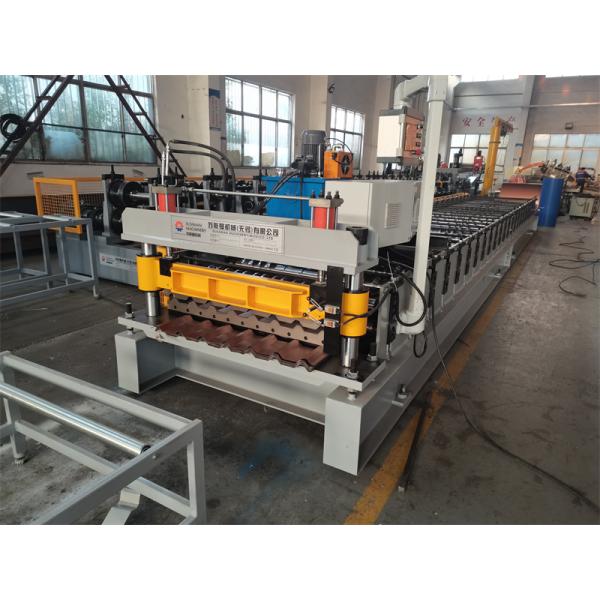

Chain Drive Lamina R101 Profile Trapezoidal Metal Sheet Roofing Roll Forming Machine For Residential Buildings
Chain Drive Lamina R101 Profile Trapezoidal Metal Sheet Roofing Roll Forming Machine For Residential Buildings
Chain Drive Lamina R101 Profile Trapezoidal Metal Sheet Roofing Roll Forming Machine For Residential Buildings
Chain Drive Lamina R101 Profile Trapezoidal Metal Sheet Roofing Roll Forming Machine For Residential Buildings
Chain Drive Lamina R101 Profile Trapezoidal Metal Sheet Roofing Roll Forming Machine For Residential Buildings
Chain Drive Lamina R101 Profile Trapezoidal Metal Sheet Roofing Roll Forming Machine For Residential Buildings
Specifications
Brand Name :
Sussman
Model Number :
SM-RP
Certification :
CE ISO SGS
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T L/C
Supply Ability :
10 sets per months
Delivery Time :
65 days after deposit
Packaging Details :
Standard packing
Type :
Lamina R101 Roll Forming Machine
Main Motor Power :
7.5kw
Way Of Drive :
chain
Working Speed :
10-12 meters /minute
Thickness :
Calibre 26 Galvanized steel, Aluminum
Effective cover width :
101 cm
Description

Calibre 26 Lamina R101 Profile Trapezoidal Metal Sheet Roofing Roll Forming Machine For Residential Buildings

R-101 roll forming machine is fully automatically to produce R-101 trapezoidal metal roofing sheets from steel or aluminum coils.

It automates the process of forming the R-101 profile, ensuring precision, efficiency, and high production output.

Technical parameter:

Rolling Speed: 0-10m/min

Feeding width: 1219mm

Steel sheet Thickness: 0.3-0.8mm galvanized sheet

Control System: PLC Siemens

Roller Stations: about 24 stations

Roller Material : 45# forge steel, coated with chrome

Shaft Material and DIA: ￠75mm,material is 45# forge steel, Chrome with quenching

Motor Power: 7.5kw main motor

Hydraulic power: 4kw

Tolerance: +1.5mm

Power supplier: 220V or 480V

Way Of Drive: chain

Machine List

Machine list 5 tons passive de-coiler 1 set
Feeding with guide
Main roll forming machine 1 set
PLC Control box 1 unit
Hydraulic station 1 unit
Safety cover 1 set
Spare parts 1 set

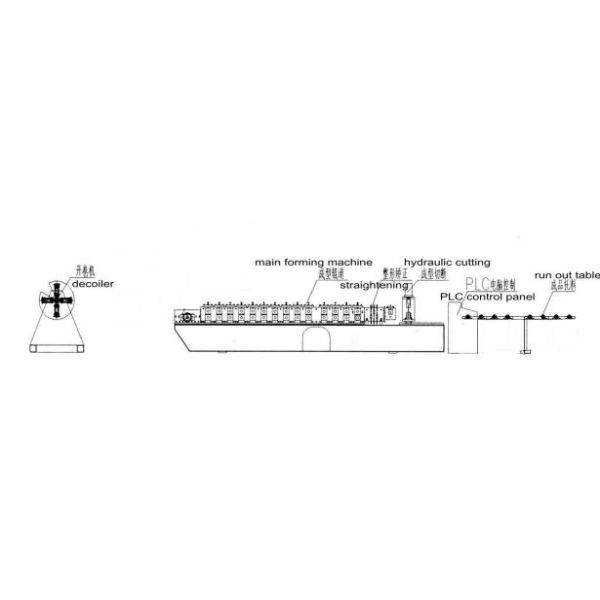

working flow

Chain Drive Lamina R101 Profile Trapezoidal Metal Sheet Roofing Roll Forming Machine For Residential Buildings

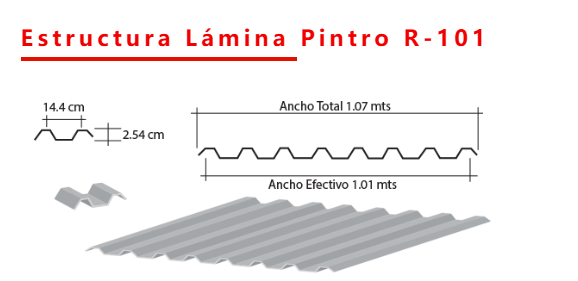

R-101 Roof Sheet Profile

  • Trapezoidal shape with deep ribs for strength and water drainage.
  • Typically made of galvanized steel, aluminum, or pre-painted metal sheets.
  • Effective cover width: ~101 cm (varies by manufacturer).
  • Rib height: usually around 3-5 cm.
  • Provides high load resistance and structural durability.

Chain Drive Lamina R101 Profile Trapezoidal Metal Sheet Roofing Roll Forming Machine For Residential Buildings

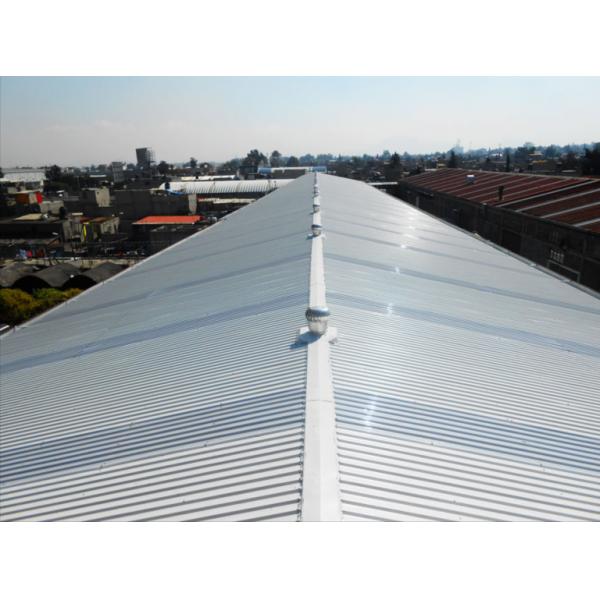

Application:

  • Industrial and commercial roofing.
  • Residential roofing (where a modern metal look is preferred).
  • Warehouse and factory walls.

Chain Drive Lamina R101 Profile Trapezoidal Metal Sheet Roofing Roll Forming Machine For Residential Buildings
