Specifications
Brand Name :
Sussman
Model Number :
RF-R101
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
30 sets/month
Delivery Time :
75 days after deposit
Packaging Details :
Film and steel
Steel thickness :
0.3-0.8mm
Roller stations :
20-22 roller stations
Main shaft diameter :
7.5Kw
Raw material :
ppgi,Color Steel Sheet,Galvanized Sheet
Roller Shaft :
76mm 45# Steel Solid,Precision
Shaft Material :
45# Steel Solid,Precision
Width :
Covering power of 1008 mm. (39,685 in)
Transmission :
By chain 1.2 inch
Description

0.3-0.7mm Color Steel R101 R72 Metal Roofing Sheet Roll Forming Machine



1. Technical parameter

Coil Material

Material thickness

0.3-0.8mm PPGI Color steel, galvanized steel

Material width

1220mm or as profile

ROLL MACHINE

Frame Structure

350H frame

Roller Station

About 20-22 roller stations

Roller Shaft

76mm 45# Steel Solid,Precision

Shaft Material

45# Steel Solid,Precision

Roller Info.

45# steel harden chromed plated

Transmission

Chain 1 inch

Motor Power

7.5KW

Output Speed

About 0-12m/min

CUTTING

Cutting Type

Hydraulic Automatic

Cutting Blade

Cr12Mov,hardness 60-62℃

HYDRAULIC

SYSTEM

Installation

inside,easy for operation

Pump Motor

4KW

COMPUTER
SYSTEM

Electrical Control

PLC Siemens

Length Control

Encoder Omron

Length Tolerance

±1.5mm

Touch Screen

Siemens


2. Machine List

5 T passive de-coiler

1 set

Plastic film

1 set

Manual pre-cutting device

1 set

Main roll forming machine

1 set

Hydraulic cutting machine

1 set

PLC Control box

1 unit

Hydraulic station

1 unit

Passive Out table

2 units

Safety cover

1 unit



3. Profile Drawing of roofing machine

It is a ribbed profile with a trapezoidal configuration manufactured in the plant by means of a stationary rolling machine from a roll of Ternium Zintro, Ternium Zintro Alum or Ternium Pintro steel, designed to be used as an exposed fixing cover.

The R72 corrugated sheet is a steel laminate that has a trapezoidal profile that adapts to an infinity of constructions and can work both on the roof and on walls and fences.

The R101 sheet is a rectangular ribbed profile that offers great structural resistance; Due to its trapezoidal profile, it is used as an exposed fixing cover and facades and skirting. Within our range of corrugated steel sheets, R101 is perhaps the best-selling, since it can be adapted to an endless number of buildings, among the applications in which the R101 corrugated sheet can be used are: Commercial and industrial warehouses,warehouses,Malls,Sports facilities,gyms,barns,factories and more.


Galvanized 0.3-0.7mm R101 R72 Metal Roofing Sheet Roll Forming Machine With 76mm 45 Steel Solid Roller Shaft


4. Applications

Walls, roofs, and skirts of industrial buildings, warehouses and constructions in general.

Covering power of 1008 mm. (39,685 in)

Superelevation: 2.46 cm (0.9685 in)

Materials: Galvanized Steel, Pintro Steel, Aluminum and Stainless.

Lengths: minimum 2.44m and maximum 12m for ease of transport.

Corrugated sheet, rectangular sheet, corrugated sheet, R101 sheet, galvanized sheet, pintro sheet, smooth sheet, zintro sheet, ternium sheet, galvasid sheet, villacero and ternium.

Galvanized 0.3-0.7mm R101 R72 Metal Roofing Sheet Roll Forming Machine With 76mm 45 Steel Solid Roller Shaft

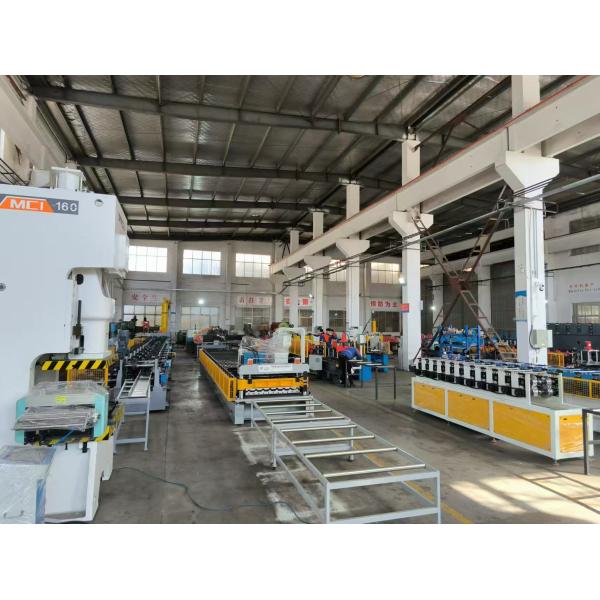

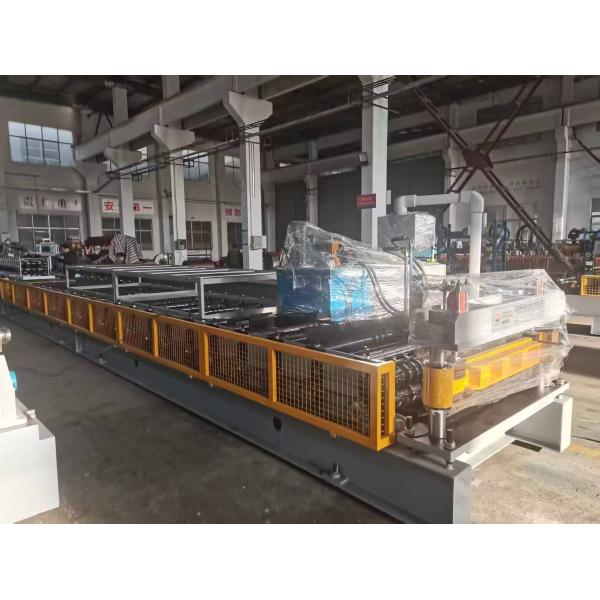

5. Roofing Machine Photo

Galvanized 0.3-0.7mm R101 R72 Metal Roofing Sheet Roll Forming Machine With 76mm 45 Steel Solid Roller Shaft

Galvanized 0.3-0.7mm R101 R72 Metal Roofing Sheet Roll Forming Machine With 76mm 45 Steel Solid Roller Shaft
