Specifications
Brand Name :
Sussman
Model Number :
RF-SS
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 SET
Price :
negotiable
Payment Terms :
TT
Supply Ability :
10 sets/month
Delivery Time :
60 days after deposit
Packaging Details :
Film nad steel
Namme :
Standing seam roll foming machine
Forming station :
about 16 stands
Forming speed :
12m/min
Forming thickness :
0.4-0.8mm
Description

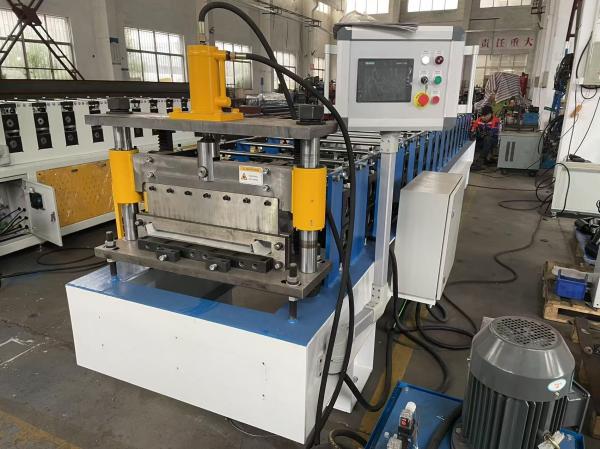

South America Popular Metal Roofing Standing Seam Roll Forming Machine

A metal standing seam is a type of roofing system that consists of continuous panels that run vertically from the ridge of the roof down to the eaves. These panels are joined together with raised seams, which interlock to create a sleek, uniform appearance.

The term "standing seam" refers to the prominent seams that stand up vertically from the flat surface of the panels.

Here are some key features and benefits of metal standing seam roofing:

### Key Features:

1. **Interlocking Seams**: The seams of the panels interlock, often with a hidden fastener system, which helps prevent water penetration and enhances the roof's durability.

2. **Vertical Panels**: Panels run vertically, from the ridge to the eaves, providing a clean, modern look.

3. **Material Options**: Common materials include galvanized steel, aluminum, zinc, and copper, each offering different benefits in terms of durability, appearance, and cost.

4. **Coatings and Finishes**: Panels can be coated with various finishes to enhance their resistance to weathering and corrosion, as well as to provide different color options.

### Benefits:

1. **Durability**: Metal standing seam roofs are highly durable and can last 40 to 70 years or more, depending on the material. They resist cracking, shrinking, and eroding, making them suitable for various climates.

2. **Weather Resistance**: The interlocking seams provide excellent protection against rain, snow, and wind, making these roofs highly weather-resistant.

3. **Energy Efficiency**: Metal roofs can reflect solar radiant heat, reducing cooling costs by up to 25%. Many metal roofing systems also include cool roof coatings that enhance their reflective properties.

4. **Low Maintenance**: These roofs require minimal maintenance compared to other roofing types. Periodic inspections and minor repairs are usually sufficient to keep them in good condition.

5. **Aesthetic Appeal**: Standing seam roofs offer a sleek, contemporary look that can enhance the architectural style of various buildings, from residential homes to commercial structures.

6. **Eco-Friendly**: Metal roofing materials are often made from recycled materials and are fully recyclable at the end of their life cycle, making them an environmentally friendly option.

### Applications:

Metal standing seam roofing is used in a variety of settings, including:

- **Residential Buildings**: Many homeowners choose standing seam roofs for their durability, low maintenance, and modern aesthetic.

- **Commercial Buildings**: These roofs are common in commercial applications due to their long lifespan and ability to withstand harsh weather conditions.

- **Agricultural Buildings**: Metal roofs are ideal for barns and other agricultural structures because they provide excellent protection and require minimal upkeep.

Overall, metal standing seam roofing is a versatile and durable option that offers numerous advantages for both residential and commercial buildings.

Technical Data:

1.Passive uncoiler 5 ton
2.Main motor power:7.5KW
3.Motor power of hydraulic station:5.5KW
4.Forming station: about 28 stands
5.Main machine size:9.5 m×1.2m×1.25m
6.Forming speed: 12m/min
7.Diameter of roller shaft:¢76mm
8.Raw material width:as request
9.Roller surface coating with chrome:single face≥0.05mm
10.Forming thickness:0.4-0.8mm
11.profile according to GB/T12755-91 standards
12.material of cutting blade: Cr12mov
13.frequency: Yaskawa
14. PLC Siemens

Machine List:
No
Name
quantity
1
5 ton passive de-coiler
1 set
2
Main roll forming machine
1 set
3
Control box
1 unit
4
Hydraulic station
1 unit
5
Spare part
1 packages
6
Safety Cover
1 set
