Specifications
Brand Name :
Sussman
Model Number :
RF-PU
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 SET
Price :
negotiable
Payment Terms :
TT
Supply Ability :
10 sets/month
Delivery Time :
50 days after deposit
Packaging Details :
Film nad steel
Type :
Smap Lock Standing Seam Roll Forming Machine
Forming station :
about 20 stands
Forming speed :
10 meters/minute
Forming thickness :
0.3-0.8mm
Description

0.3-0.8mm Thickness Snap Lock Roof Sheet Roll Forming Machine with Perforated Holes

Standing seam roof panels have been used on roofs of traditional and contemporary homes for more than a century and these standing seam metal roofing panels are commonly used on roofs of commercial businesses because of the roofing's outstanding durability.
These standing seam roof panels have area clean and graceful lines that have been an enduring favorite on a wide range of architecture.

Technical Parameter:
Item NO

Description

Offered specification
1.0
Roll forming machine
1.1
Rolling speed
10-12 meters/min(not include cutting time)
1.2
Rolling thickness
0.3mm-0.8mm
1.3
Raw material
Color painted coils, Aluminium, Zinc, Galvanized
1.4
Main Motor
7.5KW
1.5
Dimension
About 1100×1600×1200(mm)
1.7
Roller stations
About 16 stations
1.8
Roller material
45#forge steel, coated with chrome
1.9
Shaft diameter
Φ76mm
1.10
Transmission
By chain 1.2 inch
1.11
Material of chain
45# forged steel with frequency quenching, 12A
1.12
Material of cutting
Cr12Mov with quench HRC58-62°
1.13
Tolerance
10m+-1.5mm
1.14
Hydraulic station
4kw

Machine List:

5 ton passive de-coiler
1 set
Hydraulic Punching
1 set
Main roll forming machine
1 set
Roller Punching
1 set
Hydraulic Cutting
1 set
PLC Control box
1 unit
Hydraulic station
1 unit
4 meters passive table
1 unit
Spare part
1 package

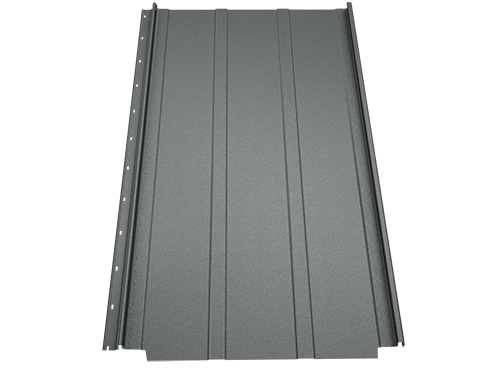

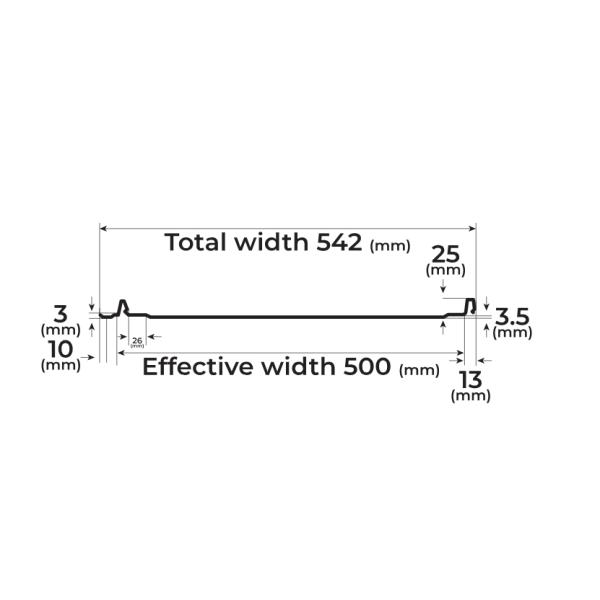

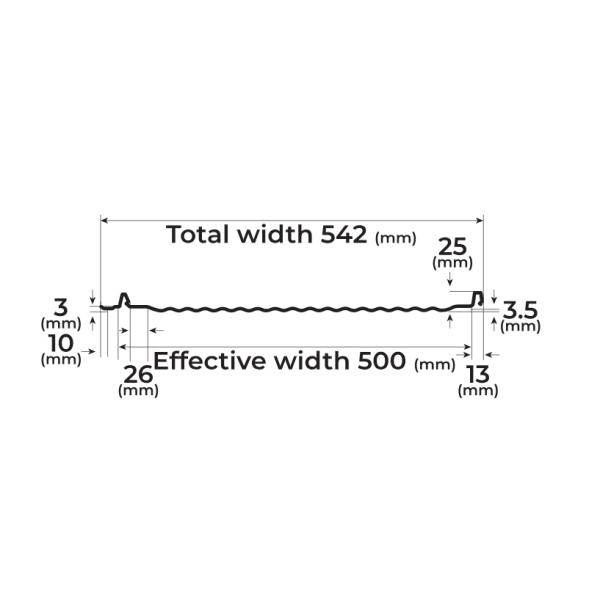

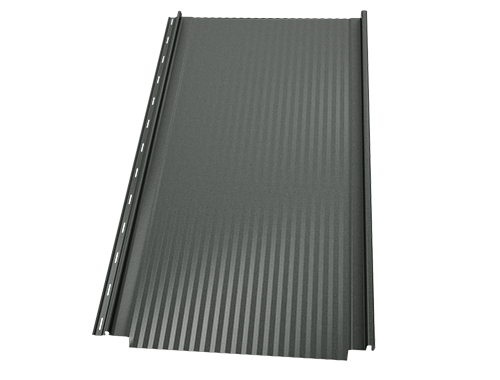

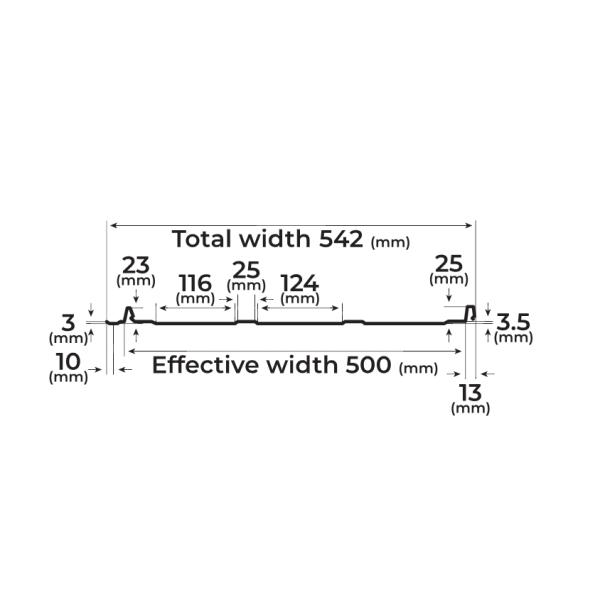

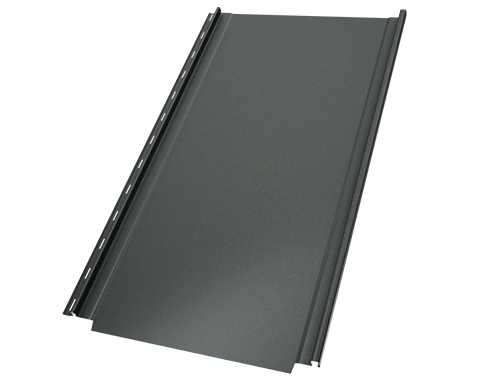

Profile Drawing:

0.3-0.8mm Thickness Snap Lock Roof Sheet Roll Forming Machine with Perforated Holes

0.3-0.8mm Thickness Snap Lock Roof Sheet Roll Forming Machine with Perforated Holes

0.3-0.8mm Thickness Snap Lock Roof Sheet Roll Forming Machine with Perforated Holes

0.3-0.8mm Thickness Snap Lock Roof Sheet Roll Forming Machine with Perforated Holes

0.3-0.8mm Thickness Snap Lock Roof Sheet Roll Forming Machine with Perforated Holes

0.3-0.8mm Thickness Snap Lock Roof Sheet Roll Forming Machine with Perforated Holes

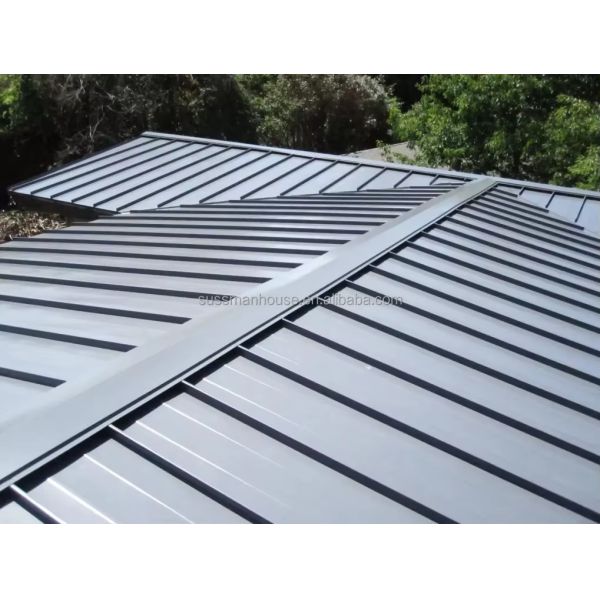

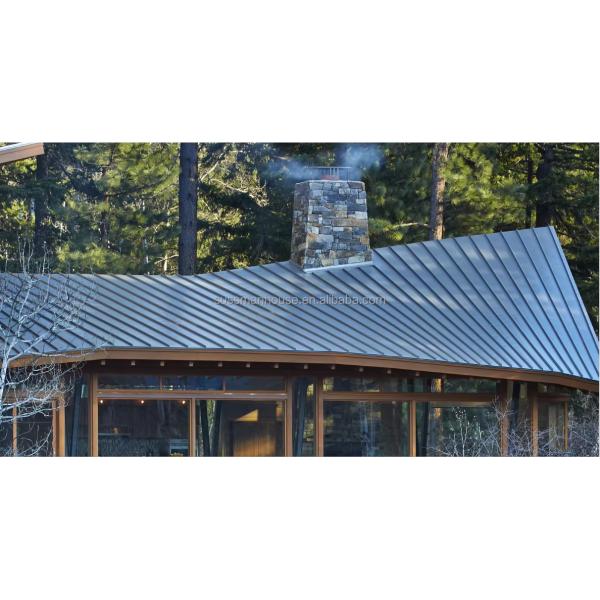

Application:

0.3-0.8mm Thickness Snap Lock Roof Sheet Roll Forming Machine with Perforated Holes

0.3-0.8mm Thickness Snap Lock Roof Sheet Roll Forming Machine with Perforated Holes
