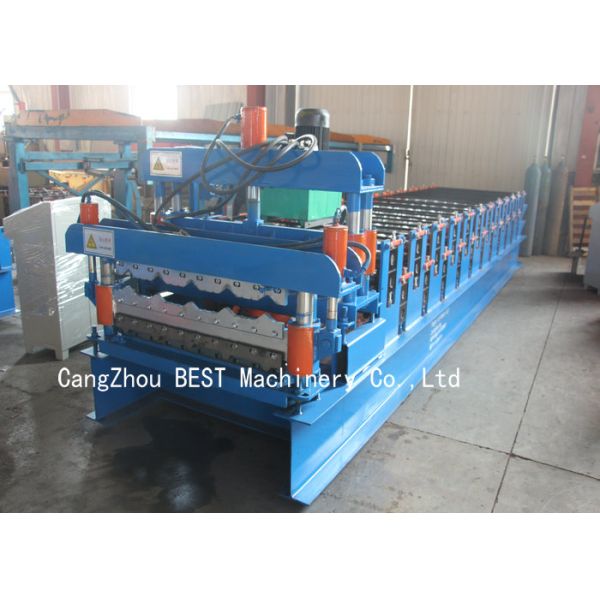

Roof Double Layer Roll Forming Machine Hydraulic Cutting 350H Steel

Work Flow

Decoiler------feeding------roll forming------cut to length-----output table

Machine Component

Decoiler

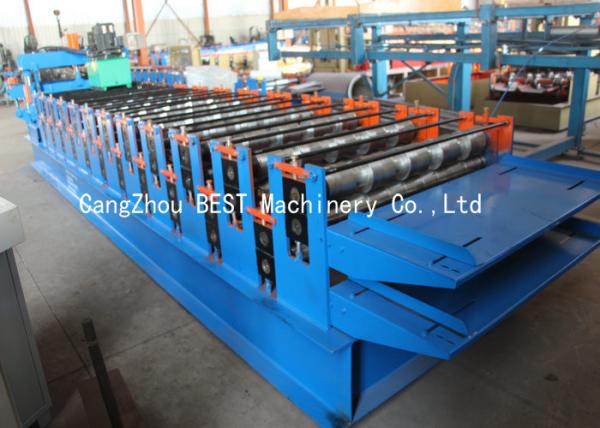

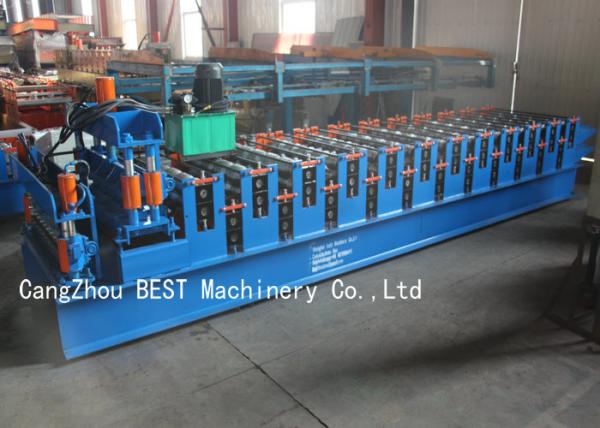

Roll Forming Machine

Material Thickness: 0.3-0.8 mm PPGI and GI

NO.of roller Stations:up 12groups down 12groups

Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°

Frame panel thickness:14mm

Bottom frame: 36# H-section steel
Motor Power: 3kw

Diameter of shaft:70mm

Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

Driven type:0.6 "Chain

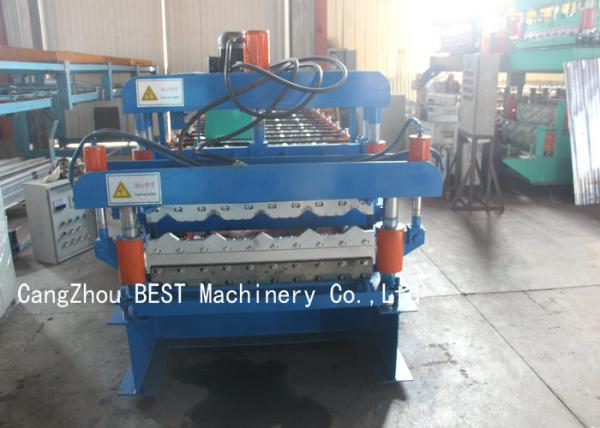

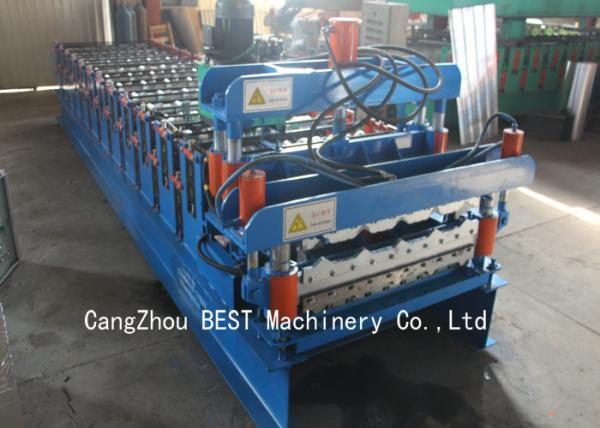

Cutting Device

Control System

Type: PLC Frequency Control System with touch screen
PLC Brand: Delta

Encoder Brand: Omron

Length Error: ±2mm

Language: English and Chinese

Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

Hydraulic Pump

Motor power: 3 kw
Oil type: 46# hydraulic oil
Pump brand: China brand

Output Table

No power type
Length: 2m

Packing Detall

Our Service

Pre-Sales-Service

If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

Without visiting, we will send you user manual and video to teach you to install and operate

After-Sales-Service

Training how to instal the machine, training how to use the machine.

Engineers available to service machinery overseas.

If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
