Automatic Roll Forming Machine C And Z Purlin Steel Channel Quick Change

Working flow
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table
Automatic Roll Forming Machine C And Z Purlin Steel Channel Quick Change

Machine Component

De-coiler 1 set
Leveling device 1 set
Forming machine 1 set
punching device 1 set
Cutting device 1 set
PLC control box 1 set
Hydraulic pump station 1 set
Production support table 1 se



Decoiler

Type Manual type(standard) Hydraulic type(option)
Width 500mm 600mm
Capacity 5000kgs 5000kgs-8000kgs
Inner diameter 450-550mm 450-550mm
Outter dimater 1500mm 1800mm

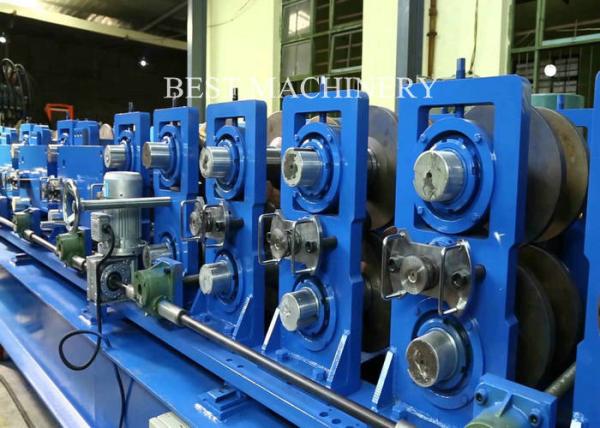

roll forming machine

(1) Material Thickness: 1-3 mm
(2) Rollers: 12Groups
(3) Material for Rollers: Gcr15 steel polished and coated with quenching HRC55-60°

(4) Material for shaft: #45 steel after treatment

(5) Diameter of shaft: 80mm

(6) Frame panel thickness: 20mm

(7) Bottom frame: 36# H-section steel
(8) Motor Power: 11kw
(9) Rolling Speed: 8-10 m / min

(10) Driven type: 1.5＂Chain

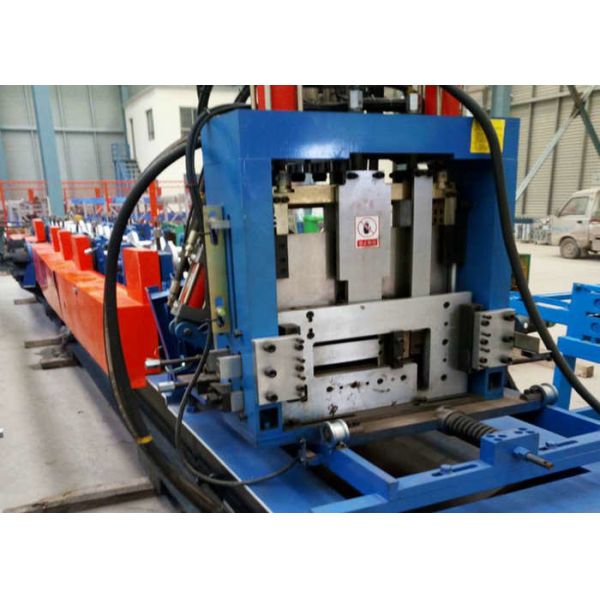

Punching device

Item Parameter detail
Frame processing the whole levelling surface is made by drilling machine
Mould material Cr12mov
Mould processing wire eletrode-cutting for the mould shape, it will save pressure
Hole size According to your request
Hole number According to your request
Pressure 20Mpa

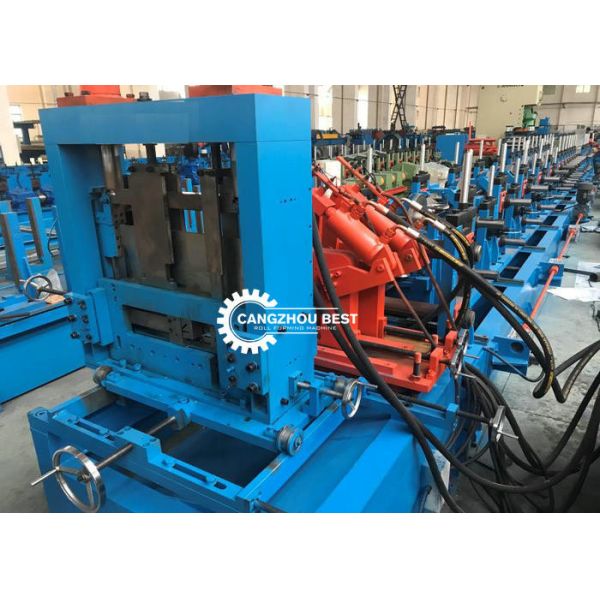

Cutting device

Type

Mould cutting
Automatic Roll Forming Machine C And Z Purlin Steel Channel Quick Change
Blade material Cr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision
Automatic Roll Forming Machine C And Z Purlin Steel Channel Quick Change
Blade processing wire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology
Working Hydraulic type


Stacker

Type

Manual
Automatic Roll Forming Machine C And Z Purlin Steel Channel Quick Change

Auto(option)
Automatic Roll Forming Machine C And Z Purlin Steel Channel Quick Change
Length 2pieces, length is adjustable according to your requirement

PLC

Main item Parameter detail
PLC

Delta(standard) or according to your request
Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase

Hydraulic pump

Main Item Parameter detail
Motor

3kw China brand or according to your request
Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan


Automatic Roll Forming Machine C And Z Purlin Steel Channel Quick ChangeAutomatic Roll Forming Machine C And Z Purlin Steel Channel Quick ChangeAutomatic Roll Forming Machine C And Z Purlin Steel Channel Quick Change

Product tags

c channel roll forming machine

,

cz purlin roll forming machine

,

strut channel roll forming machine
Send your message to this supplier
Send Now

Automatic Roll Forming Machine C And Z Purlin Steel Channel Quick Change

Ask Latest Price
Product Detail
Brand Name :
CHBEST
Model Number :
XY80-200
Certification :
CE/BV/SGS
Place of Origin :
China Hebei
MOQ :
1 set
Supply Ability :
20 sets/month
Contact Supplier
Automatic Roll Forming Machine C And Z Purlin Steel Channel Quick Change
Automatic Roll Forming Machine C And Z Purlin Steel Channel Quick Change
Automatic Roll Forming Machine C And Z Purlin Steel Channel Quick Change
Automatic Roll Forming Machine C And Z Purlin Steel Channel Quick Change

Cangzhou Best Machinery Co., Ltd

Verified Supplier
8 Years
hebei, cangzhou
Since 2015
Business Type :
Manufacturer, Exporter
Main Products :
Roofing Sheet Roll Forming Machine, Double Layer Roll Forming Machine, Roof Tile Roll Forming Machine
Total Annual :
10000000-20000000
Employee Number :
30~50
Certification Level :
Verified Supplier
