Description

Automatic U Channel Roll Forming Machine , Galvanized Steel Roll Forming Machine


Working flow
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table

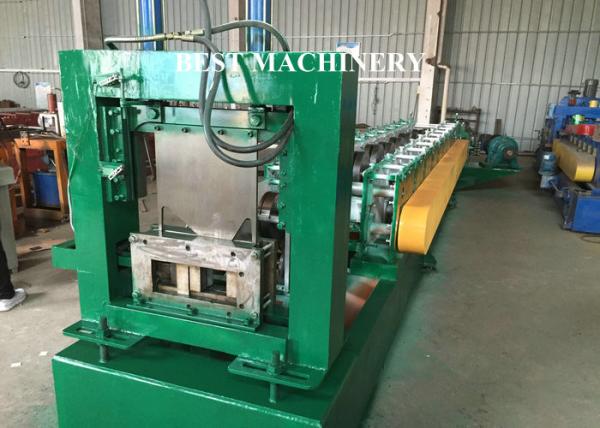

Punching Device U Channel Roll Forming Machine , Galvanized Steel Roll Forming Machine

Machine Component

De-coiler 1 set
Leveling device 1 set
Forming machine 1 set
punching device 1 set
Cutting device 1 set
PLC control box 1 set
Hydraulic pump station 1 set
Production support table 1 se



Decoiler

Type Manual type(standard) Hydraulic type(option)
Photo Punching Device U Channel Roll Forming Machine , Galvanized Steel Roll Forming Machine Punching Device U Channel Roll Forming Machine , Galvanized Steel Roll Forming Machine
Width 500mm 600mm
Capacity 5000kgs 5000kgs-8000kgs
Inner diameter 450-550mm 450-550mm
Outter dimater 1500mm 1800mm

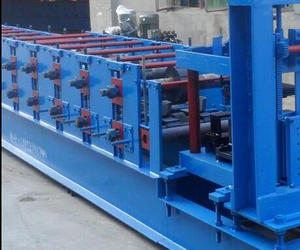

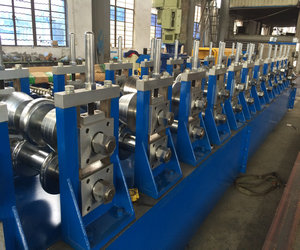

roll forming machine

Item Parameter detail
Processing Material GI and Black Coils
Material thickness 1-3mm(standard), 3-5mm(customized)
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
Plate type Casting Pillar type(option)
Punching Device U Channel Roll Forming Machine , Galvanized Steel Roll Forming Machine Punching Device U Channel Roll Forming Machine , Galvanized Steel Roll Forming Machine
Plate thickness:20mm Pillar thickness:35mm

Forming stations 13-18 stations (according to the material thickness)
Machine rollers

high grade Gcr15 forged steel(bearing material), Hard quenching and hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming
Machine Shaft φ80-90mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision and wire-electrode cutting
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 2 inch chain or gear box(option)
Machine power 7.5kw-22kw(according to the size and thickness)
Machine working speed without punching:8-12m/min or 10-30m/min(option)
Machine testing method After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm


Punching device

Item Parameter detail
Frame processing the whole levelling surface is made by drilling machine
Mould material Cr12mov
Mould processing wire eletrode-cutting for the mould shape, it will save pressure
Hole size According to your request
Hole number According to your request
Pressure 20Mpa


Cutting device


(1) Material for Cut-Off Modular:Cr12 steel
(2) Hardness for Heat Treatment:HRC60 – 65
(3) Cut-Off Type:Hydraulic, Automatic Cut-Off
(4) Cut-Off Modular:1 set
(5) Motor for Hydraulic Stand: 3 kw

Stacker

Type

Manual
Punching Device U Channel Roll Forming Machine , Galvanized Steel Roll Forming Machine

Auto(option)
Punching Device U Channel Roll Forming Machine , Galvanized Steel Roll Forming Machine
Length 2pieces, length is adjustable according to your requirement

PLC

Main item Parameter detail
PLC

Delta(standard) or according to your request
Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase

Hydraulic pump

Main Item Parameter detail
Motor

3kw China brand or according to your request
Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan
