Specifications
Brand Name :
CHBEST
Model Number :
XY50-100
Certification :
CE/BV/SGS
Place of Origin :
China Hebei
MOQ :
1 set
Supply Ability :
10 sets/month
Delivery Time :
40-50 days
Packaging Details :
plastic film for naked machine
Product name :
Roofing Usage Downpipe Channel Roll Forming Machine Seamless Square Shape
Color :
Blue or as your request
Machine speed :
8-12m/min
Machine dimention :
9mx1.4mx1.4m
Control system :
PLC
Warranty :
2 years
Life time :
more than 10 years
Description

Roofing Usage Downpipe Channel Roll Forming Machine Seamless Square Shape


Application
The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.
It will make the project more integrate, and help enhancing the image of all project.
Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.

Working flow

Decoiler----feeding----roll forming----cut to length----output table
Machine components

No.NameQty
1.De-coiler1 Set
2.Roll Forming Machine1 Set
3.Hydraulic Cutting Device1 Set
4.PLC Control Box1 Set
5.Hydraulic Pump1 Set
6.Output table1 Set


Decoiler

TypeManual type(standard)Hydraulic type(option)
Width500mm600mm
CapacityMax 5tonsFrom 5-15 tons
Inner diameterφ450-550mmφ450-550mm
Outer diameterφ1500mmφ1800mm

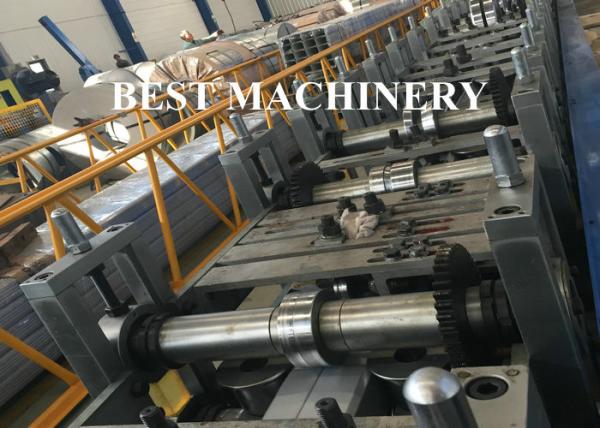

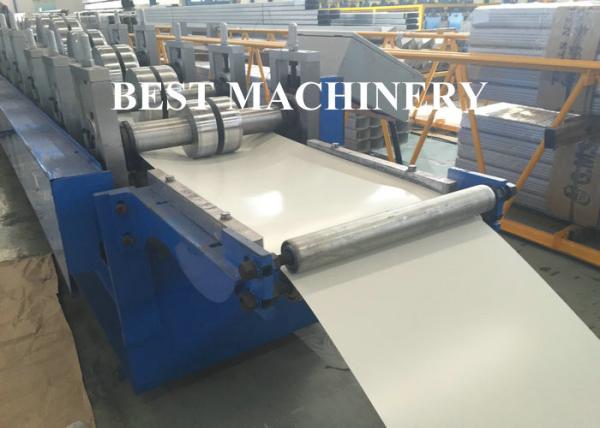

roll forming

1. Suitable to process: Color steel plate
2. Width of the plate: 333mm
3. Rollers: 18 rows
4. Dimensions: 8.2*1.35*1.51m
5. Power: 5.5+3kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.4-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Control system: PLC control

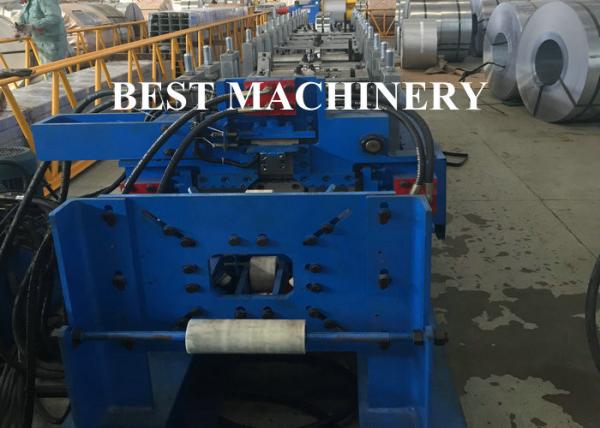

Cutting

Type

Mould type

Blade materialCr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision

Blade processingwire-electrode cutting, but the upper balde can not be straight. this is technology
WorkingHydraulic type


Stacker

Type

Manual

Auto(option)

Length2 pieces6m or 12m


PLC

Main itemParameter detail
PLC

Delta(standard) or according to your request

InverterChina brand(standard) or according to your request
Touch screenMcgs(standard) or according to your request
EncoderChina brand(standard) or according to your request
Voltage/HZ/Phase380v/50-60hz/3phase


Hydraulic pump

Main ItemParameter detail
Motor

3kw China brand or according to your request

PumpChina brand or according to your request
Solenoid valveChina brand or according to your request
Cooling system

Cooling fan


Roofing Downpipe Channel Roll Forming Machine Seamless Square Shape

Roofing Downpipe Channel Roll Forming Machine Seamless Square Shape

Roofing Downpipe Channel Roll Forming Machine Seamless Square Shape

RFQ
1. Q: What is the MOQ?
A: 1 set.

2. Q: What is the Delivery time?
A: Within 35 workdays.

3. Q: What is the Payment terms you can accept?
A: T/T or L/C.30% deposit,and before shipped we hope to receive the balance 70%.Also 100% L/C is accepted.

4. Q: What is the Warranty?
A: Within 2 years warranty.All of the technical personnel are ready to serve you at any time.

5. Q:Can you make the machine according to my design or photo type?
A: Yes.We have an experienced team for working out the most suitable design and production plan for the machine that make the machine according to my design or photo type?
A: Yes.We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

6. Q: How can we be assured that you will deliver us quality machine with spare parts?
A: 1. Customers to send the technical people to our factory for checking the quality.
2. We can send the technicians to the buyer`s factory for the installation of the machine.
3. Good after-sales service, its free of charge during the warranty period.
