Specifications
Brand Name :
CHBEST
Model Number :
XY24-210-1000
Certification :
CE/BV/SGS
Place of Origin :
China Hebei
MOQ :
1 set
Supply Ability :
20 sets/month
Delivery Time :
20-30 days
Packaging Details :
plastic film for naked machine
Product name :
2mm Thickness Metal Corrugated Roof Roll Forming Machine Water Tank Usage Sheet
Color :
Blue or as your request
Driven system :
Chain or gear box
Control system :
PLC
Warranty :
2 years
Life time :
more than 10 years
Description


2mm Thickness Metal Corrugated Roof Roll Forming Machine Water Tank Usage


Working flow
2mm Thickness Metal Corrugated Roof Roll Forming Machine Water Tank Usage
Machine components

No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Hydraulic Cutting Device 1 Set
4. PLC Control Box 1 Set
5. Hydraulic Pump 1 Set
6. Output table 1 Set

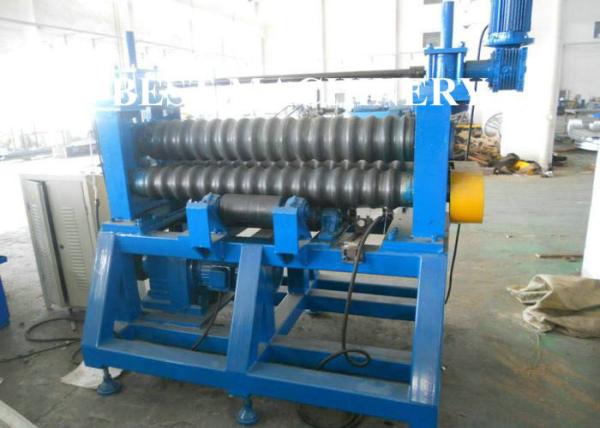

7. Curving machine 1 Set


Parameter

1. DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ508 – Φ610 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 7000 kg


2. ROLL FORMING MACHINE
(1) Material Thickness: 2.0mm
(2) Rollers: 26Groups
(3) Material for Rollers: Gcr15 steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade No.45 steel after treatment
(5) Diameter of shaft: 120mm
(6) Frame panel thickness: 20mm
(7) Bottom frame: 36# H-section steel
(8) Motor Power:30kw
(10) Driven type: 1.5＂Chain double sides


3. CUT-OFF DEVICE
(1) Material for Cut-Off Modular:Cr12 steel after treatment
(2) Hardness for Heat Treatment:HRC55 – 60°
(3) Cut-Off Type:Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand:7.5 kW


4. ELECTRONIC CONTROL SYSTEM
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Japan Panasonic
(3) Encoder Brand: Omron
(4) Length Error: ±2mm

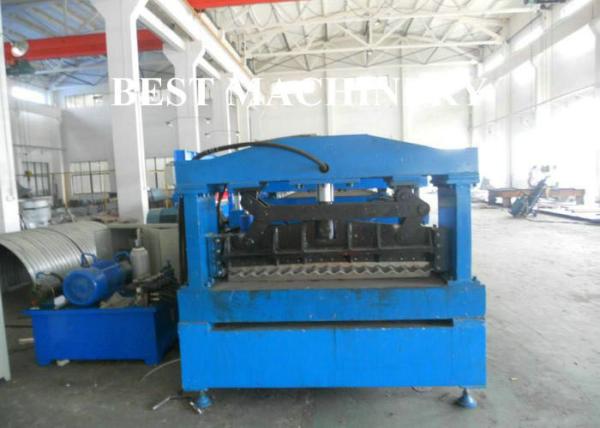

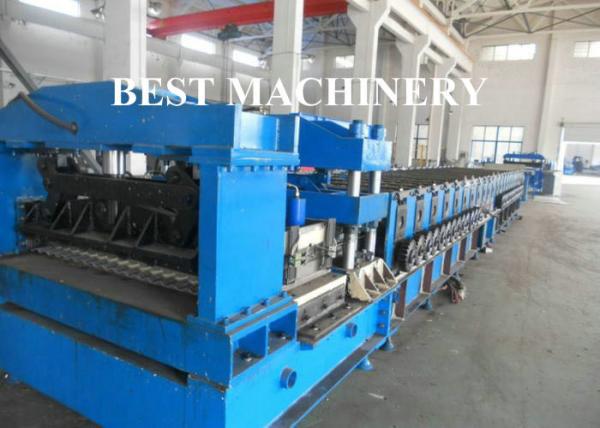

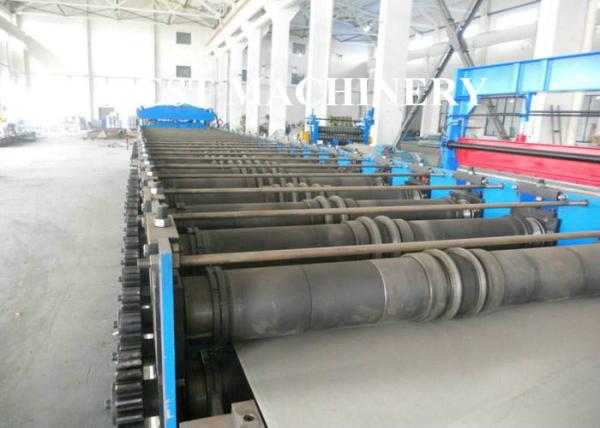

Machine Photo


2mm Thickness Metal Corrugated Roof Roll Forming Machine Water Tank Usage

2mm Thickness Metal Corrugated Roof Roll Forming Machine Water Tank Usage

Packing & Loading Photo


2mm Thickness Metal Corrugated Roof Roll Forming Machine Water Tank Usage

Installation and training:

1. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2. Without visiting,we will send you user manual and viedo to teach you to install and operate.
3.

If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.

Advantages

1. We are factory and located in Shanghai,China,offer best quality machines


2. Customers Design ,Size,Color&Logo are accepted.

3. With20 years professional manufacture experience

4. Prompt Delivery&Competitive Price

5. Main markets:Middle East, Europe, North America, Africa,Southeast Asia.

FAQ

Q: Can you make the machine according to my design or photo type?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine according to your demand or photo type that you are going to book with us.
Q: Are you a factory or trading company?
A: We are a factory located in Cangzhou city, Hebei Province, China. Our city is near Beijing. All clients from abroad and home are warmly welcome to visit our factory!
Q: How do you guarantee the quality of the products?
A: Every section of our production has strict manufacture process, than professional inspectors check every section of the production, next the production will work for testing quality, which must be 100% quality assurance. Unqualified resolute don't a better factory.
