Steel Roofing Sheet Ridge Cap Roll Forming Machine/Roll Top Roof Tile Forming Machine

Specific

Specifications

1. DECOILER
(1) Max. Width: 1500 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs

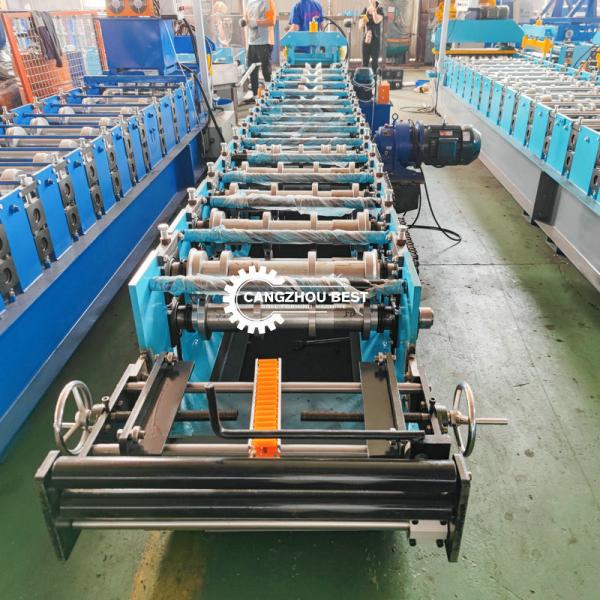

2. ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI

(2) NO. of roller Stations: 9roller stations
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

(5) Diameter of shaft: 70mm

(6) Frame panel thickness: 20mm

(7) Bottom frame: 36# H-section steel
(8) Motor Power: 3kw

(9)Driven type: 0.6＂Chain
(10)Speed:about 3m/min

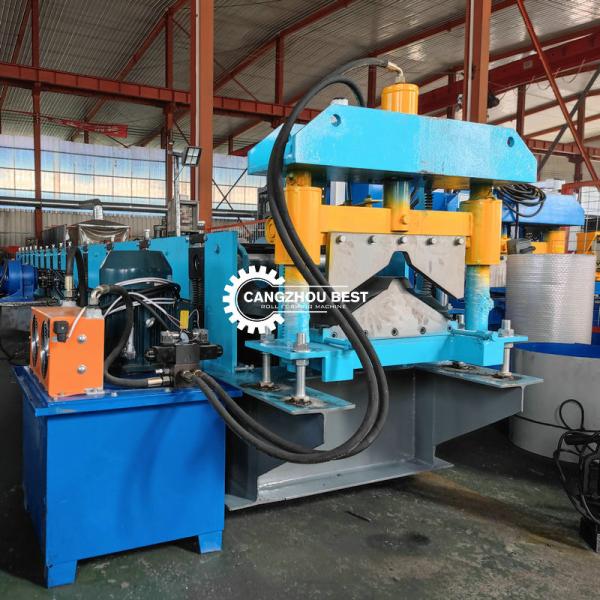

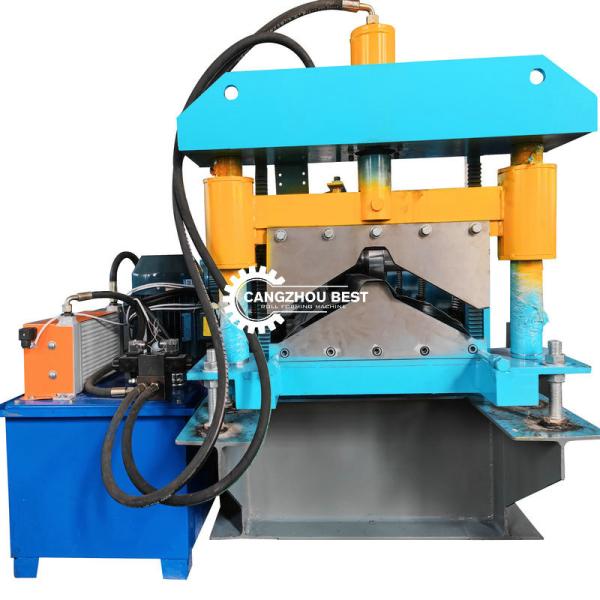

3. PRESSING AND CUT-OFF DEVICE

(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type:Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 5.5kW

(5) Press tool material: Cr 12 steel after heat-treated

4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Encoder Brand: Omron

(4)Length Error: ±2mm

(5)Language: English and Chinese

(6)Voltage: 380v/50HZ, 3Phase

(it depends on customer requirement)

5. HYDRAULIC PUMP STATION

(1) Motor power: 5.5 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand

(4)Cooling fan

6. PRODUCTION SUPPORT TABLE

(1) No power type
(2)Length: 2m

Loading and Packing:

Standard Export Packing.

1.One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.

Our service:

Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.

Delivery: 30 days after receipt of advance payment

Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Roundtrip tickets and suitable accommodation, also buyer should pay salary per day.

During warranty: parts are free but buyer pay for the shipping fee

Our company:

Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.

FAQ:

1. Q: Are you a manufacturer?

A:Yes, we are manufacture.

2. Q: How should I do if I would like to order my machine

A: Send me your design drawing if you have.

Or tell me your design idea. I arrange my engineer to drawing it for your confirmation.

3. Q: What details of the machine you should get from me.

A: I will confirm all details with you, such as the voltage in your city.

4. Q: I am new in this field. How could I understand the machine very well

A: Why not contact me whatsapp: 0086 18045013499. I promise you that you will be professional after you get from me. It is true thing.

5. Q: I receive a lot of quotations, they are big range, How could i choose?

A: I have many easy ways to solve it. Fox example, I can teach you how to find the Traders out. Just contact me. It is free for contacting with me.

6. Q: Can you give me one suggestion for ordering the machine.

A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.

7. Q: I have not whatsapp and skype, how could I contact with you

A: Send me one inquiry in the end of this page. Leave your contact information for me. I will contact you. It is free.

8. Q: What do you think what is the most important for roll forming machine

A: Drawing ! Drawing ! Drawing

9. Q: Can you use other brand of spare parts for me if i want.

A: No problem if you want to pay the money.
