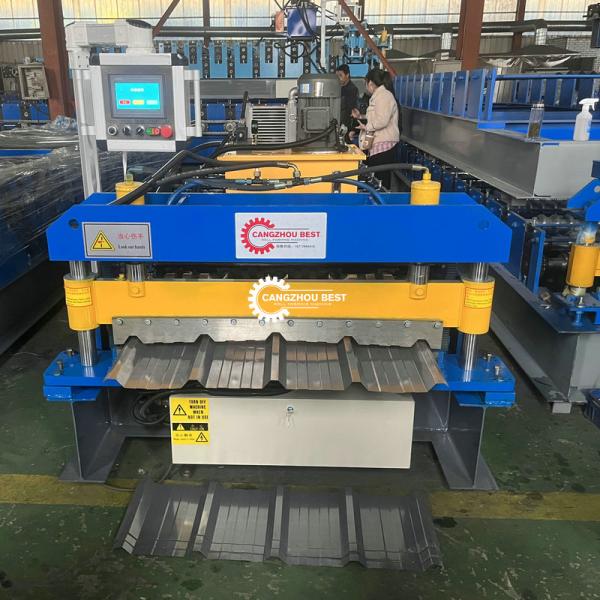

Tr5 PV5 Color Steel Roofing Sheet Roll Forming Machine PLC Cotrolled
Tr5 PV5 Color Steel Roofing Sheet Roll Forming Machine PLC Cotrolled
Tr5 PV5 Color Steel Roofing Sheet Roll Forming Machine PLC Cotrolled
Tr5 PV5 Color Steel Roofing Sheet Roll Forming Machine PLC Cotrolled
Tr5 PV5 Color Steel Roofing Sheet Roll Forming Machine PLC Cotrolled
Tr5 PV5 Color Steel Roofing Sheet Roll Forming Machine PLC Cotrolled
Tr5 PV5 Color Steel Roofing Sheet Roll Forming Machine PLC Cotrolled
Tr5 PV5 Color Steel Roofing Sheet Roll Forming Machine PLC Cotrolled
Specifications
Brand Name :
CHBEST
Model Number :
CHBEST-1020
Certification :
CE/ISO
Place of Origin :
China.Hebei
MOQ :
1set
Price :
USD+8000+SET
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
15sets/month
Delivery Time :
35days
Packaging Details :
Standard
Name :
High Quality Tr5/PV5 Color Steel Roofing Sheet Roll Forming Machine
Material :
PPGI/GI
Color :
As your require
Shaft Material :
45# steel
Conreol System :
PLC
Warranty :
2 year
Description

High Quality Tr5/PV5 Color Steel Roofing Sheet Roll Forming Machine

Parameter

material colored steel sheet, galvanized steel sheet, aluminum sheet
thickness of coil sheet 0.3-0.8 mm
material expand width 1220mm
Efficiency width 1020
Machine details
roller material high grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material high grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 70mm or as your requirement
main frame 350 H steel
forming steps 16groups
productivity 20-25m/min
hydraulic station power 3 KW
hydraulic pressure 10-12MPa
appearance size 8700mm*1500mm*1500mm
hydraulic oil 40# hydraulic oil
Electric tension 380V 50 Hz 3 Phase or as your requirement
Cut Mode Hydraulic forming after cutting off
Cutter materia Cr12 Heat Treatment
Electronic control system PLC, Touch Screen, Encoding counter
Color Blue, green or yellow or as your requirement
Rolling material 45# steel,roller surfaces polishing, hard plating

Components

No. Name Unit Qty
1 Manual decoiler set 1
2 Main forming machine set 1
3 PLC control system Set 1
4 Hydraulic pump station set 1
5 post cut set 1
6 electric motor set 1
7 output table set 1

Main Features

1.This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.

2.Rollforming process:uncoiler, rollforming, forming step effect, cut to length.

3.Fully Automatic Control System with PLC.
4.Easy operation: Key in the length and quantity on the control panel.
5.two years warranty for free, and beyond two years if any part broken, tell us and pay us we delievery any part u need. And support technical skills for machine for whole life.
6.we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
7.One roll forming machine only can produce one profile. and we also can produce double or three layer roll forming machine

Our servie

a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,and also train your workers/technician face to face.

b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

2.After Sevice

3.a.One year guarantee for whole machine.

b.24 hours technical support by email or calling

c.If there is any problem found of the machine, we will repair it for free in one year.
