Wall Roofing Sheet Roll Forming Machine IBR Galvanized Steel 18 Stations
Wall Roofing Sheet Roll Forming Machine IBR Galvanized Steel 18 Stations
Wall Roofing Sheet Roll Forming Machine IBR Galvanized Steel 18 Stations
Wall Roofing Sheet Roll Forming Machine IBR Galvanized Steel 18 Stations
Wall Roofing Sheet Roll Forming Machine IBR Galvanized Steel 18 Stations
Wall Roofing Sheet Roll Forming Machine IBR Galvanized Steel 18 Stations
Wall Roofing Sheet Roll Forming Machine IBR Galvanized Steel 18 Stations
Wall Roofing Sheet Roll Forming Machine IBR Galvanized Steel 18 Stations
Specifications
Brand Name :
CHBEST
Model Number :
XY20-200-1000
Certification :
CE/BV/SGS
Place of Origin :
China Hebei
MOQ :
1 set
Supply Ability :
20 sets/month
Delivery Time :
20-30 days
Packaging Details :
plastic film for naked machine
Product name :
Roof / Wall Sheet IBR Galvanized Steel Making Roll Forming Machine 18 Stations
Color :
Blue or as your request
Roller material :
45#steel
Shaft material :
45#steel
Machine power :
3kw
Driven system :
Chain or gear box
Control system :
PLC
Cutting type :
Hydraulic
Warranty :
2 years
Life time :
more than 10 years
Description

Wall Roofing Sheet Roll Forming Machine IBR Galvanized Steel 18 Stations


Machine components

No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Hydraulic Cutting Device 1 Set
4. PLC Control Box 1 Set
5. Hydraulic Pump 1 Set
6. Output table 1 Set



Decoiler

Type Manual type(standard) Hydraulic type(option)
Width 1250mm 1500mm
Capacity Max 5tons From 5-15 tons
Inner diameter φ508-610mm φ508-610mm
Outer diameter φ1500mm φ1800mm

roll forming

Item Parameter detail
Processing Material GI and PPGI
Material thickness 0.25-0.8mm
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
plate type Pillar type(option)
Plate thickness:20mm Pillar thickness:30mm
Painting:normal painting painting:Chroming

Forming stations 13-22 stations(according to the profiles)
Machine rollers

high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming
Machine Shaft φ70-80mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 1 inch chain or gear box(option)
Machine power 3kw-11kw(according to the profiles)
Machine working speed 8-12m/min or 10-30m/min(option)
Machine adjust type After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

Cutting

Type

bearing sliding type
Blade material Cr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision
Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type

Stacker

Type

Manual


Auto(option)
Length 1.5m-2m 6m or 12m

PLC

Main item Parameter detail
PLC

Delta(standard) or according to your request
Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase

Hydraulic pump

Main Item Parameter detail
Motor

3kw China brand or according to your request
Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan

About us:

1. We have professional team to make different kinds of roll forming machines for our customers,

from designing, processing,assembling, debugging, delivery.

2. we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket,visa,accormadation, food and transpotaion in your country.

3. You can send your men to our factory. we will teach them how to operate the machine without training charges.

4. Actually theres another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manaul first ,and get familiar with the machine. Then we can get a video call,and teach you on-line how to operate the machine.

5. Apart from above training course,we also provide 1 year warranty for all the easily broken part of the machine for free and whole-life technical service support.

If there is any problems happened to the machine, we will provide solution at once.

Hope we could establish win-win business relations in the soon future!

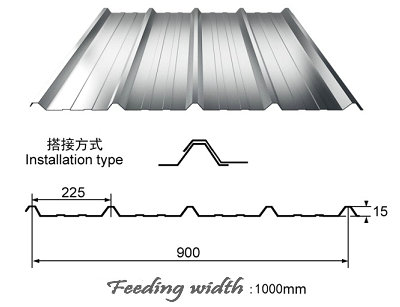

Finished Product drawing:
