Specifications
Brand Name :
BEST
Model Number :
BE-1000
Certification :
CE/ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD6000-10000
Payment Terms :
L/C, T/T
Supply Ability :
20 sets/months
Delivery Time :
30 work days
Packaging Details :
Standard export packing : 1. 1*40 GP container ; main machine naked and fastened with iron wire in the container. 2.rollers were painted with oil and packed with plastic film. 3.electrics devices be packed with wooden box.for Standard export packing.
Name :
1220mm Coil Width Tr4 Roof Sheet Steel Profile Making Roll Forming Machine
Color :
As Your Require
Material :
PPGI GI
Shaft :
70mm
Voltage :
380V/50HZ/3PHASE
Warranty :
2 Year
Description

1220mm Coil Width Tr4 Roof Sheet Steel Profile Making Roll Forming Machine

Technical Parameters:

ØMain power: 7.5KWØRoll stations: 20 stations
single row 1.0inch chain drive
ØDiameter of shaft: ¢75mm
ØCutting system: hydraulic stop-to-cut
Øcutting Length tolerance: 3±1.5mm
ØWorking speed: 12--25m/min(not including the cutting time)
ØThickness: 0.3mm--0.8mm,G550Mpa tensile galvanized or prepainted steel sheet.
ØCoil input width size: 1220mm
ØMaterial of roller: 45# ,HRC48--52,chromed
ØMaterial of blade mould: Cr12, quenched 58-62
ØSize of machine: approx9.0m*1.6m*1.4m
ØMachine structure: Torri stands structure
ØHydraulic power: 5.5kw
ØHydraulic pressure : 16Mpa

Detail

Decoiler

Roof sheet make machine load parts, decoiler loading frame we can offer different type can choose. standard type are manual,also can choose electric loading frame or hydraulic loading frame.

This loading frame decoiler also can use in other type machine, customer can buy it alone.

Machine frame

Roof sheet make machine adopts welded steel frame structure, it make sure roof sheet machine can operation more stable

AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing,
hard plating, heat treatment and chrome coating.

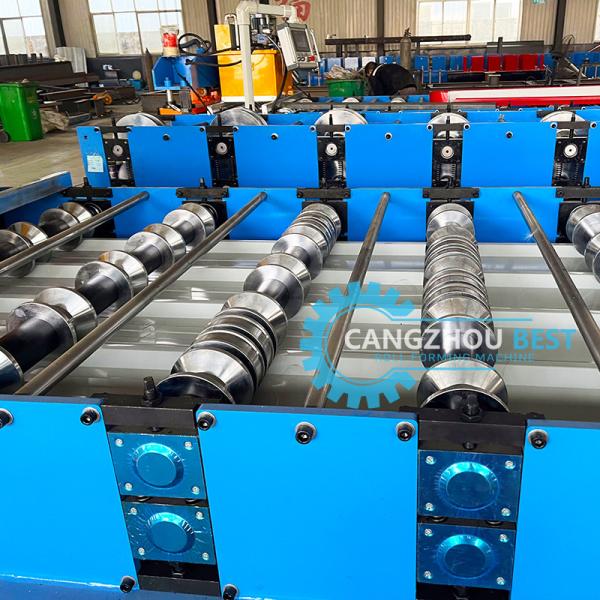

Forming roller

Roof sheet make machine forming roll quality will decide roof sheet shapes, we can according to your local roof shape customized different type rollers

Roller chrome coated thickness: 0.05 mm

Roller material: Forging Steel 45# heat treatment.

Name:Hydraulic station power

Hydraulic station power: 4Kw

Brand:Delta, Matsushita, Li Chao, Simence (or according to customer requirements)

Name:Cutting head

Features: The cutting head uses an electro-hydraulic cutting system and automatic positioning function to determine the size and
cut the target product.

Blade material: Cr12, forged by heat treatment.

Control part

Roof sheet make machine control parts have different types, standard type are button control, through press buttons to realize different function.

PLC touch screen type can setting data on the screen, its price is little higher, but is more intelligent and automatic

Installation and Training:

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD200, visa cost and necessary things.
