Specifications
Brand Name :
CHBEST
Model Number :
YX-840 850
Certification :
CE, BV,SGS
Place of Origin :
Hebei, China
MOQ :
1 set
Price :
USD8000-USD22000/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20sets/month
Delivery Time :
5-60days
Packaging Details :
20GP/40GP container
Name :
YX-840 850 Double Layer Roof Sheet Color Steel Roll Forming Making Machine
Color :
As your request
Power :
3kw+3kw
Material :
PPGI,G,AL
Control System :
PLC control
Cutting Type :
Hydraulic cutting
Bottom Fame :
350H steel
Customized :
Yes
Warranty :
2 years
Description

YX-840 850 Double Layer Roof Sheet Color Steel Roll Forming Making Machine

Technical Parameters:

No Item Parameter Remark
1

Suitable

Material

 Type Color coating steel
Width(mm) according According to customer's requirement
Thickness(mm) 0.37-0.47 According to customer's requirement
Yield Strength(Mpa) 230-300 According to customer's requirement
2 Forming Speed(m/min) 30 Not including cutting time
3 Roller Material No.45 steel with hard chromized
4 Cutting Model Hydraulic Cutting According to customer's requirement
5 Power source Type 380V/3PH/50HZ According to customer's requirement

Machine Components:

No Name Quantity Remarks
1 Decoiler 1set Up to customer
2 Main machine Pre-cutting device 1set Up to customer
Feeding device 1set
Roll forming system 1set
Post cutting device 1set
Hydraulic system 1set
3 Electric control system 1set
4 Supporter/Automatic Stacker 1set Up to customer

Machine details:

Decoiler

◊ Max Capacity: 5000kgs

◊ Inner diameter of coil: 400-600mm
Roll Forming
◊ Max Feeding width:1000 mm
◊ Product width: 1000
◊ Thickness of sheet: 0.2-1.0mm
◊ Motor Power: 5.5 kw forming system
◊ Roller material: 45 #steel
◊ Diameter of shaft: 70mm
Cutting
◊ Cutting way: pause to cut.
◊ Oil pump station 1set.
◊ Hydraulic power: 3 kw hydraulic system.
◊ Blade Material: CR12 with heat treatment HRC60-62.
Electrical System
◊ Control system: HMI & PLC control panel.
◊ Power: 440V 50Hz (as per local requirement)
Run-out Table
◊ Frame: 8# steel groove welded
◊ Roller type.
◊ Quantity: 1 pc

Our advange:

Our machine Influence of the machine

Main forming

machine body

High strength H350 or H400 steel.

machine through milling machine after

welding

Sturdy and durable,

ensure the plate standard

Material of the

roller

 High grade No.45 forged steel

Ensure the forming effect of

the panel and the use age will

be longer,the surface of the panel

Material of the

cutting

 GCr12 steel with quenched treatment

Cutting is out of shape not easily

and use age will be longer,the panel

size precision

Material of the

active shaft

High grade solid No.45 carbon steel,

Shaft diameter is 70mm.

Improve the integrated mechanic

feature of the shaft and keep product

standard
Control system

PLC control system,some elements are

imported from Japan and Germany

Machine become more accurate and

more stable

Our service:

Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.

Delivery: 30 days after receipt of advance payment

Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Round trip tickets and suitable accommodation, also buyer should pay salary everyday.

Warranty: 12 months limited warranty

During warranty: parts are free but buyer pay for the shipping fee.

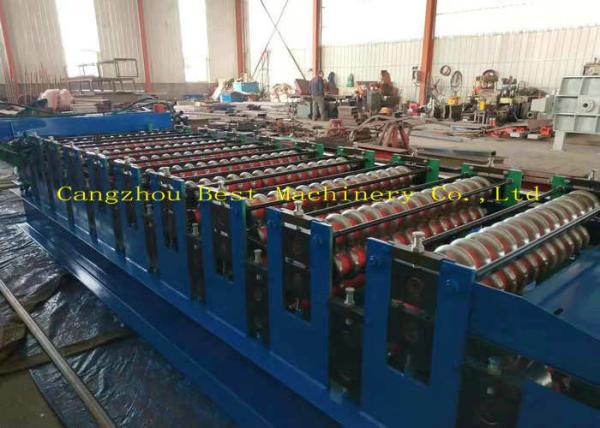

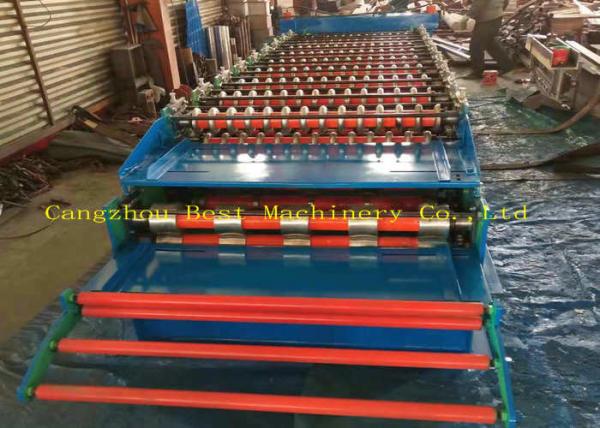

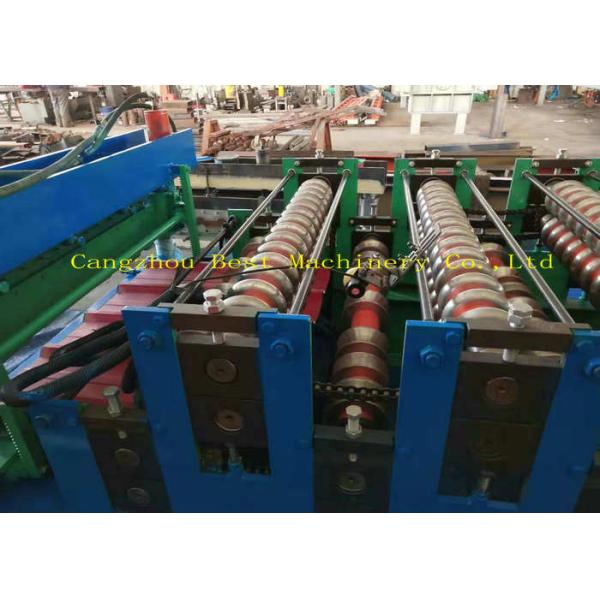

Machine Photos:

YX-840 850 Double Layer Roofing Sheet Roll Forming Machine PLC Control CE SGS Listed

YX-840 850 Double Layer Roofing Sheet Roll Forming Machine PLC Control CE SGS Listed
