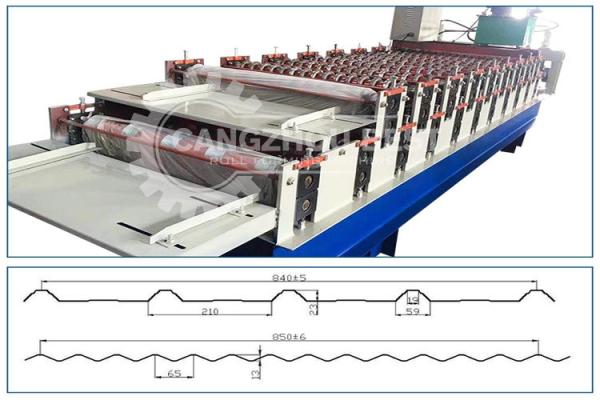

High Speed Galvanised Roofing Sheet Roll Forming Machine With Hydraulic Cutting
High Speed Galvanised Roofing Sheet Roll Forming Machine With Hydraulic Cutting
High Speed Galvanised Roofing Sheet Roll Forming Machine With Hydraulic Cutting
High Speed Galvanised Roofing Sheet Roll Forming Machine With Hydraulic Cutting
High Speed Galvanised Roofing Sheet Roll Forming Machine With Hydraulic Cutting
High Speed Galvanised Roofing Sheet Roll Forming Machine With Hydraulic Cutting
High Speed Galvanised Roofing Sheet Roll Forming Machine With Hydraulic Cutting
High Speed Galvanised Roofing Sheet Roll Forming Machine With Hydraulic Cutting
Specifications
Brand Name :
BEST
Model Number :
BE-1000
Certification :
CE/ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD6000-1000-
Payment Terms :
L/C, T/T
Supply Ability :
20 sets/month
Delivery Time :
30 work days
Packaging Details :
Standard export packing : 1. 1*40 GP container ; main machine naked and fastened with iron wire in the container. 2.rollers were painted with oil and packed with plastic film. 3.electrics devices be packed with wooden box.for Standard export packing.
Product Name :
High Speed Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting Singal layer roll forming machine
Color :
Blue Or As Your Request
Machine Speed :
8-12m/min
Hydraulic Power :
3KW
Driven System :
Chain Or Gear Box
Control System :
PLC
Cutting Type :
Hydraulic
Warranty :
2 Years
Life Time :
More Than 10 Years
Description

High Speed Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting Singal layer roll forming machine

machine components

Name NO. Unit

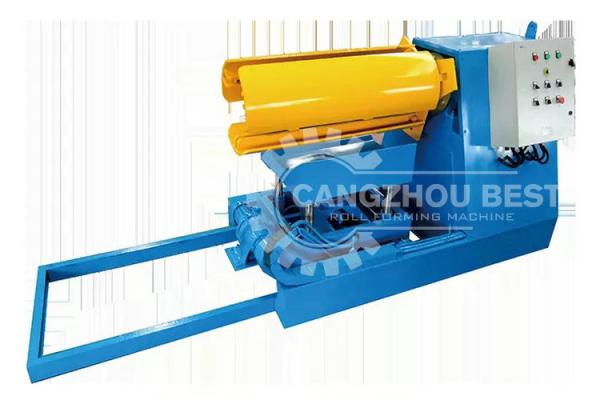

1.De-coiler 1 set
2.Forming machine 1 set
3.Cutting device 1 set
4.PLC control box 1 set
5.Hydraulic pump station 1 set
6.Production support table 1 set

Quick Details

Warranty: 1 YEAR

Type: Tile-forming machine

Production capacity: 2m/min

Certification: CE/ISO9001

Applicable industriy: Building material shops,manufacting plant,construction

Condition: New

Tile type: Colored glaze steel

Use: Roof

Place of origin: Hebei,China

Brand name: FORWORD

Voltage : 380V 50HZ 1350MM

Dimension(L*W*H): 6000*1300*1350MM

Weight: 6.8t

After-Sales Service: Online support,free spare parts,fired installation,commis

key Selling Points: Long Service Life

Raw Material: GI or PPGI

Production Name: Europen glazed roof tile cold roll forming machine

Roller stations: 15 stations

Under frame: H-bean

Roller material: 45#steel with hard chromed 0.05mm

Shaft material: 45#steel with procession

Shaft diameter: 70MM solid

Cutting blade material: Cr12Mov

Control system: Taiwan or japan famous brand

Product description
suitable material PPGI/Aluminium sheet/galvanized sheet/various sheet plates
thickness of coil

0.3-0.8mm
coil width 1000-1200-1250mm
material of main frame 400H steel
roller high grade 45# steel,quenched and tempered treatment,hard chrome plated 0.05--0.07mm
thickness of middle plate 16mm,45#steel plate
forming roller station 15 rows
dirven type by chain(1.0inch),link bearing model 6210
power of main motor 5.5kw,servo motor
sidewall connection bar 25mm,zinc plated
forming speed about 12-18m/min
hydraulic pump station 5.5kw,40#hedraulic oil
plc delta
material of razor blades cr12,quenching 58-62℃
frequency converter it has the advantage of slowing down before cutting.to ensure the length accuracy ±1mm,fai better than industrial standard ±3mm
switch CHNT
Frequency changer SAJ

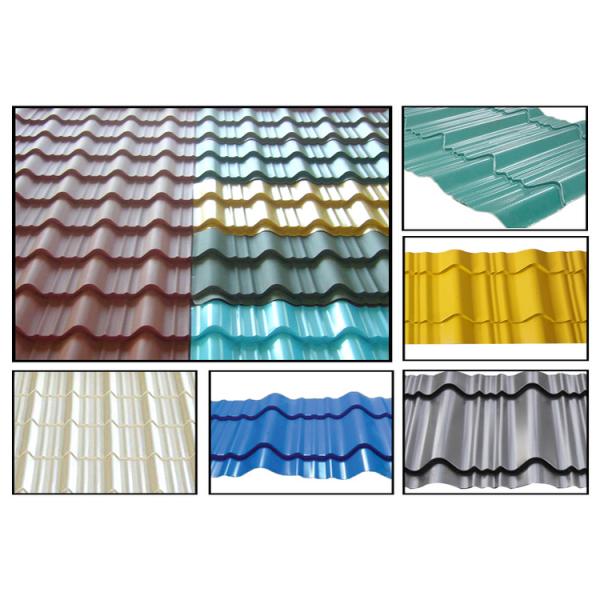

Different Type and Different Color

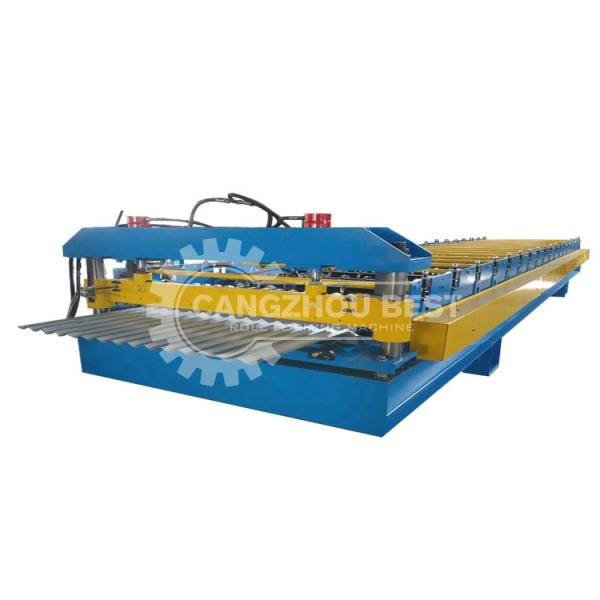

High Speed Galvanised Roofing Sheet Roll Forming Machine With Hydraulic Cutting

OUR PRODUCTS

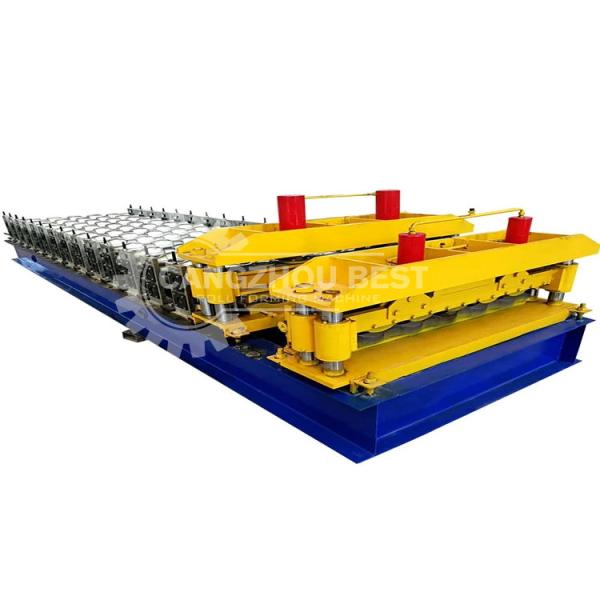

High Speed Galvanised Roofing Sheet Roll Forming Machine With Hydraulic Cutting
