Double Layer Metal Roofing Corrugated Sheet Roll Forming Machine For Building
Double Layer Metal Roofing Corrugated Sheet Roll Forming Machine For Building
Double Layer Metal Roofing Corrugated Sheet Roll Forming Machine For Building
Double Layer Metal Roofing Corrugated Sheet Roll Forming Machine For Building
Specifications
Brand Name :
CHBEST
Model Number :
YX-840/850
Certification :
CE,BV,SGS
Place of Origin :
China
MOQ :
1set
Price :
USD8500-25500/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20sets/month
Delivery Time :
5-60days
Packaging Details :
40GP/20GP container
Name :
Double Layer Metal Roofing Corrugated Sheet Roll Forming Machine For Building
Production Capacity :
8-12m/min
Usage :
Roof
Material Thickness :
0.3-0.8mm
Key Selling Points :
Easy to Operate
Material of Shafts :
45# steel
Raw material :
GI,PPGI.AL
Warranty :
18 month
Cutting type :
Hydraulic
Voltage :
380V 50HZ 3 Phase
Description

Double Layer Metal Roofing Corrugated Sheet Roll Forming Machine For Building

Machine Description:

The tile forming machine is a machine consisting of discharging, forming and post-forming cutting. Its color plate has a flat appearance, uniform paint, high strength and durability. It is widely used in industrial and civil buildings, such as factories, warehouses, stadiums, Exhibition halls, theaters and other rooms and walls.

Technical Parameter:

The total length of the equipment L6200mm *W1300mm* H1200mm
Equipment weight 3.5tons
The motor power Motor 4Kw pump station 4Kw working voltage 380V or customized
Production speed 10--18 m/min
The transmission way 1 inch chain drive
rack Large frame: 350H section steel
shaft 840:11 row axis 900:11 row axis diameter 70 axis
The thickness of the plate 14 mm
Set of Galvanized pipe finishing, electrostatic spraying
Wheel material 45# steel hard chrome plating
The molding part Divided into precision wheel rotation forming, forming effect is good, reduce the friction between wheels and raw materials, debugging convenient, fast.
Numerical control system Easy control king, letter letter press button screen, counter,
shear Iron plate welding frame, hydraulic cylinder automatic shear, hydraulic cylinder automatic pressure
In the thickness of the plate 0.3 mm - 0.8 mm
Into the plate width 1000 mm
accessories Operation manual one feeding rack two sets
Warranty period 12 months

Main Features:

1. Resistant to frost, heat,hail and gales; 100% waterproof, due to the lateral run-off channel on each sheet for several models.

2. High-solid forming stand guarantees the goods and uniform high quality of final productd

3. Precise forming, The operation automatically minimizes the tolerance of cutting length

4. A stylish and attractive design, giving the apperance of a traditional roof tile.

5.The raw material can be in different color, with elegant and noble looking.

Our Service:

1. Technology:We have centers and innovative designing teams for different kinds of production lines.

2. After Sale Service:Warranty period 1 year , after this period , we are willing to give help if customer needs accessory . The real cooperation will not end at the delivery . we believe that satisfied after sale service means a lot.

3. Inspected by the Sellers:After completing the manufacturing and assembling of the equipments, we will test the machines and commissioning in the workshop.

4. Inspected by the Buyers:After confirmation of a sound work of the line, we will invite our customer to send their representatives to inspect the production lines in our factories.

About us:

Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.

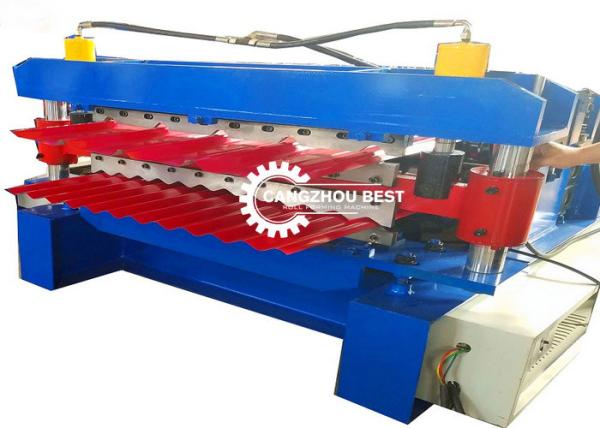

Machine Photos:

Double Layer Metal Roofing Corrugated Sheet Roll Forming Machine For Building
