Galvanized Steel Round Shape&Square Tube Down Pipe Roll Forming Machine
Galvanized Steel Round Shape&Square Tube Down Pipe Roll Forming Machine
Galvanized Steel Round Shape&Square Tube Down Pipe Roll Forming Machine
Galvanized Steel Round Shape&Square Tube Down Pipe Roll Forming Machine
Galvanized Steel Round Shape&Square Tube Down Pipe Roll Forming Machine
Galvanized Steel Round Shape&Square Tube Down Pipe Roll Forming Machine
Galvanized Steel Round Shape&Square Tube Down Pipe Roll Forming Machine
Galvanized Steel Round Shape&Square Tube Down Pipe Roll Forming Machine
Specifications
Brand Name :
BEST
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD18000-26000
Payment Terms :
L/C, T/T
Supply Ability :
20 sets/month
Delivery Time :
30 work days
Using :
Downpipe
Application :
Sheet, Pipe
Raw Material :
GI,PPGI,cooperaluminium
Screw Design :
Double-Screw
Machine Type :
Square Downspout Roll Forming Machine
Operation :
Touch Screen And Button
Description

Custom Water Rain Down Pipe Roll Forming Machine Chain Drive CE Certificated

Custom Water Rain Down Pipe Roll Forming Machine Chain Drive CE Certificated

Technical Parameters (depending on specific requirements of users)

Suitable steel plate

 Type Color steel plate
thickness 0.3-0.8mm
Feeding width As users needs
Effective width As users needs
Production speed 8-12m/min
Roller stand 12 rows
Diameter 52mm
Main power 4kw
Pump power 3kw
Side panel of machine 14mm
Roller material Carbon Steel 45#
Blade material Cr12, quenched
Control system Delta PLC control
Voltage 380V 50Hz 3phases(changeable as needs)
Main structure of the machine 300mm H-Beam

Component

NO. Item Unit Qty
1 Manual decoiler set 1
2 Main roll forming machine set 1
3 PLC control box set 1
4 Supporter table set

1

Specification of Components

No Technical Specification & Remark
1 Hydraulic Uncoiler

  • Capability: 3 Ton
  • Mode of expand &fight: inner expand &fight by Hydraulic
  • Way of feeding: electrical
  • main power; 4kw
2 Main Roll Forming Machine
  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢65mm material: SAE1045 with tempering
3

Machine structure:
  • Main frame by 350H beam welding
  • Machine structure: wall board panel
4 Hydraulic cutting system
  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,5.5KW
5 Hydraulic System

  • Hydraulic power: 5.5kw
  • Working pressure: 12-16Mpa adjustable
6 Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • PLC: Panasonic
7 Out table
  • Size: 2m
  • One out table with three support roller
  • Quantity: 2 units
8 Bending machine

  • Max bend angle: 90°
  • Function: bend and fasten at the same time
  • power; 2.2kw

Machine components

No. Name Qty
1 Passive uncoiler 1
2 Guiding unit 1
3 Roll forming machine 1
4 Cutting unit 1
5 Hydraulic station 1
6 PLC control cabinet 1
7 Supporter table 1
8 Security cover 1
9 Elbow machine 1


Specification of Components

No Technical Specification & Remark
1 Manual Uncoiler
Galvanized Steel Round Shape&Square Tube Down Pipe Roll Forming Machine

  • Capability: 3 Ton
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual
2 Main Roll Forming Machine
Galvanized Steel Round Shape&Square Tube Down Pipe Roll Forming Machine
  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢65mm material: SAE1045 with tempering
  • Main frame by 350H beam welding
  • Machine structure: wall board panel
3 Hydraulic cutting system
Galvanized Steel Round Shape&Square Tube Down Pipe Roll Forming Machine
  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,5.5KW
4 Bending machine
Galvanized Steel Round Shape&Square Tube Down Pipe Roll Forming Machine

  • Max bend angle: 90°
  • Function: bend and fasten at the same time
  • power; 2.2kw

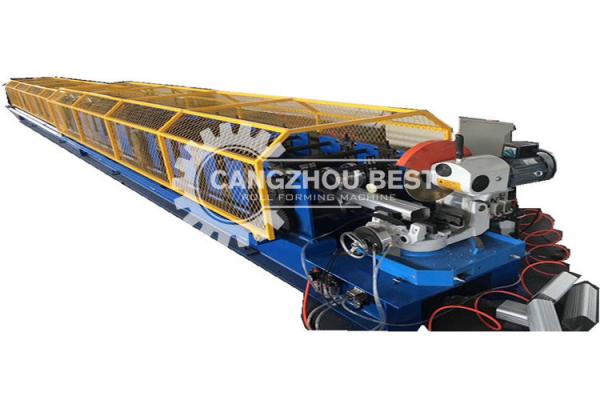

MACHINE PICTURE
