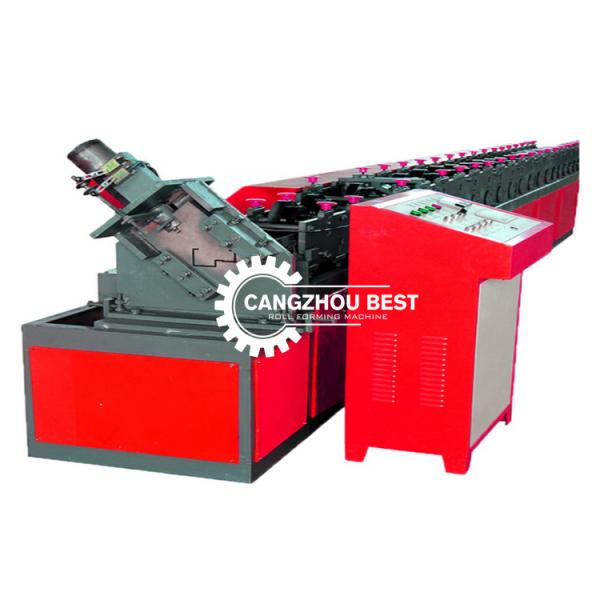

Slide Channel Truck And Metal 0.5mm Stud Roll Forming Machine
Slide Channel Truck And Metal 0.5mm Stud Roll Forming Machine
Slide Channel Truck And Metal 0.5mm Stud Roll Forming Machine
Slide Channel Truck And Metal 0.5mm Stud Roll Forming Machine
Slide Channel Truck And Metal 0.5mm Stud Roll Forming Machine
Slide Channel Truck And Metal 0.5mm Stud Roll Forming Machine
Specifications
Brand Name :
BEST
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD$20000---30000
Payment Terms :
L/C, T/T
Supply Ability :
20 sets/month
Delivery Time :
30 work days
Production Capacity :
10-15m/min
Rolling thinckness :
0.5-1.2mm
Condition :
New
Use :
Roof
Voltage :
380V 50Hz 3phases
Warranty :
1 Year
Description

Techincal description:
1).Automatic inner tight decoiler

a.coil inner diameter 450mm-550mm

b. maximum width of coiling600mm

c. maximum weight of loading 2500kg

2). Main forming machine

a. number of forming steps 11rows

b. material of shaft 45# steel . Outer diameter 60mm

c.main motor power: 5.5kw

d. The speed of forming: 0-50m/min

3).Hydraulic cutter

a. material of blade:Cr12 mould steel with quenched treatment 60-62

b. cutting system :adopt advanced hydraulic drive, after forming automatic cut, no distort, no wasting , high safe factor.(tracking cutting)

4).The electrical control system

a. The Brand of display: DELTA

b.The main computer (PLC): DELTA DVP14

5).Hydraulic system

a. Adopting advanced hydraulic system of Tai Wan

b. Power:3kw

6).The equipments coating , package

a.the coating adopt international general shade-guide

b.The package :simple waterproof package.

Main Components:

Item Name Qty
1 5T Manual Decoiler 1
2 Feeding platform with hand cutting system 1
3 Main forming system 1
4 Hydraulic cutting system 1
5 Hydraulic pump station 1
6 Electrical motor 1
7 PLC control system 1
8 Touch screen operation 1
9 Finished products receive table 1
10 Safety shield(optional) 1
11 Hydraulic decoiler(optional) 1
12 Automatic stacker(optional) 1

Main Technical Specifications:

Name Automatic Steel Door Frame Roll Forming Making Machine
Suitable raw material PPGI/PPGL/GI/GL Steel Coils
Thickness of coil sheet 0.5-1.2mm
Feeding Coil width 280mm
Effective width 150mm
Under frame 400H-beam
Diameter of Soild shaft 70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway
Roller

High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment,

hard chrome coated 0.05-0.07mm
Thickness of middle plate 18mm
Forming stations 22
Drive type By chain(1.0 inch) link bearing model 6210
Power of main motor 5.5kw with Cycloidal reducer, Lichao, Shanghai
Power of pump station 4kw, Lichao, Shanghai
Forming speed About 15-20m/min
Hydraulic cutting Controlled by PLC
PLC DELTA, TAIWAN / Mitsubishi, Japan
Material of cutting blade Cr12Mov, quenching 58-62℃
Frequency converter

It has the advantage of slowing down before cutting, to ensure the

length accuracy(±1mm, far better than industrial

standard ±3mm).
Switch CHNT
