Specifications
Brand Name :
CHBEST
Model Number :
YX312
Certification :
CE/BV/SGS
Place of Origin :
HEBEI CHINA
MOQ :
1set
Supply Ability :
15sets/month
Delivery Time :
35days
Packaging Details :
standard
Name :
Classic Galvanized Aluminum Steel Metal Roof Ridge Cap Tile Roll Forming Machine
Material thickness :
0.3-0.8mm
Speed :
8-12m/min
Transmission :
chain
Color :
as request
Cutting type :
hydraulic
Material grade :
Q345 Q235 G550
Description

Classic Galvanized Aluminum Steel Metal Roof Ridge Cap Tile Roll Forming Machine

Machine Specification

NO.

Item

Specification

1

Processing material

2

Processing thickness

0.2-0.8mm

3.

Coil width

500mm

4.

cover width

312mm

5.

Material of main frame

300H steel

6.

Diameter of Soild shaft

70mm, high grade 45# steel

7.

Roller

Quenched and tempered treatment,

hard chrome coated 0.05-0.07mm

8.

Thickness of middle plate

20mm

9.

Forming station

14 station

10.

Transmission

By chain(1.0 inch) link bearing model 6210

11

Power of main motor

5.5kw with Cycloidal reducer

12

Power of pump station

4kw

13

Forming speed

about 8-10m/min

14

Hydraulic cutting

Controlled by PLC

15

PLC

DELTA(TAIWAN)/Mitsubishi

16

Material of razor blades

Cr 12, quenching 58-62℃

17

Frequency converter

It has the advantage of slowing down before cutting, to ensure the

length accuracy(±1mm, far better than industrial standard ±3mm).

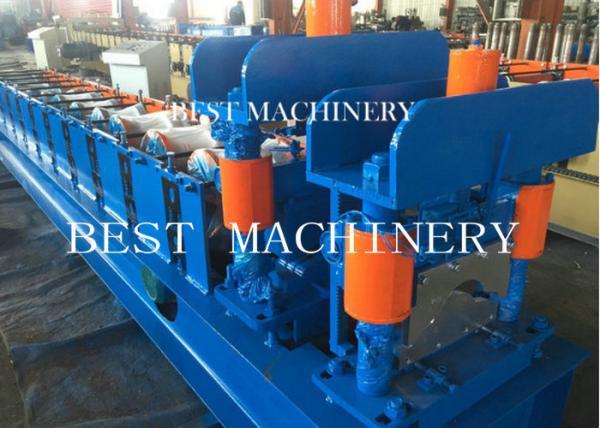

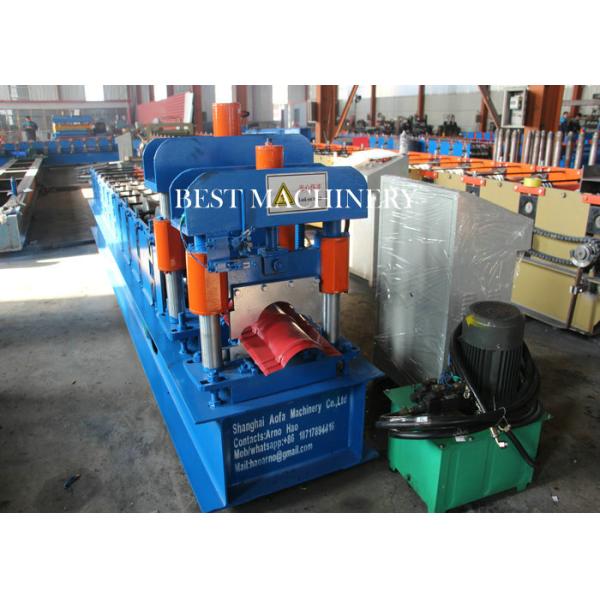

Machine Photo

Classic Galvanized Aluminum Steel Metal Roof Ridge Cap Tile Roll Forming Machine 14 station

Company

Established in 2009, Cangzhou BEST Machinery Co., Ltd. is a professional

manufacturer and exporter that is concerned with the design, development and production of all kinds of roll forming machine. We are located in Shanghai, China, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

Classic Galvanized Aluminum Steel Metal Roof Ridge Cap Tile Roll Forming Machine 14 station

Wrokshop

Classic Galvanized Aluminum Steel Metal Roof Ridge Cap Tile Roll Forming Machine 14 station

Machine Packaged

1.one 40ft container for loading one set machine with manual decoiler;
2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
Installation & Traning

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
