Ridge Metal Roof Roll Forming Machine PLC Control Hydraulic Fully Automatic
Ridge Metal Roof Roll Forming Machine PLC Control Hydraulic Fully Automatic
Ridge Metal Roof Roll Forming Machine PLC Control Hydraulic Fully Automatic
Ridge Metal Roof Roll Forming Machine PLC Control Hydraulic Fully Automatic
Ridge Metal Roof Roll Forming Machine PLC Control Hydraulic Fully Automatic
Ridge Metal Roof Roll Forming Machine PLC Control Hydraulic Fully Automatic
Ridge Metal Roof Roll Forming Machine PLC Control Hydraulic Fully Automatic
Ridge Metal Roof Roll Forming Machine PLC Control Hydraulic Fully Automatic
Specifications
Brand Name :
CHBEST
Model Number :
CHBEST-600
Certification :
CE/ISO
Place of Origin :
China, Hebei
MOQ :
1set
Delivery Time :
35days
Packaging Details :
Standard
Name :
Roof Ridge Cap Cold Roll Forming Machine 350H Steel With PLC Control
Color :
As your require
Warranty :
2 year
Power :
3kw
Shaft Material :
45# steel
Voltage :
380
Description

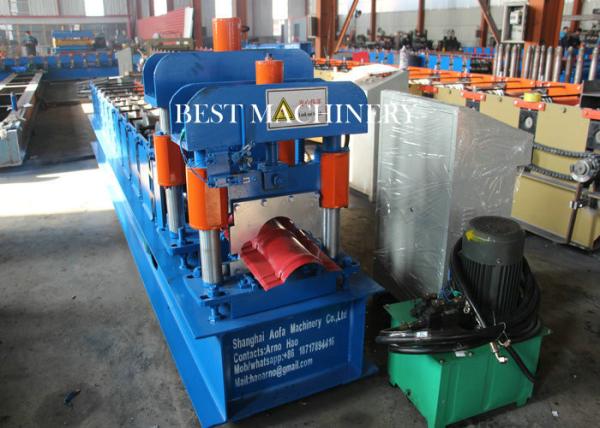

Roof Ridge Cap Cold Roll Forming Machine 350H Steel With PLC Control

Roll Forming Machine

Rolled Material: PPGI and GI
Material Thickness: 0.4-0.5mm

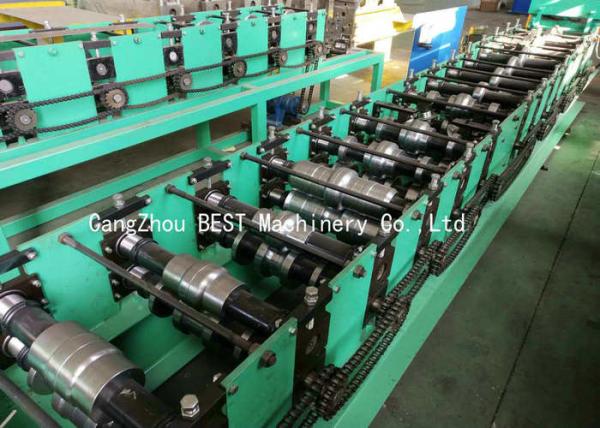

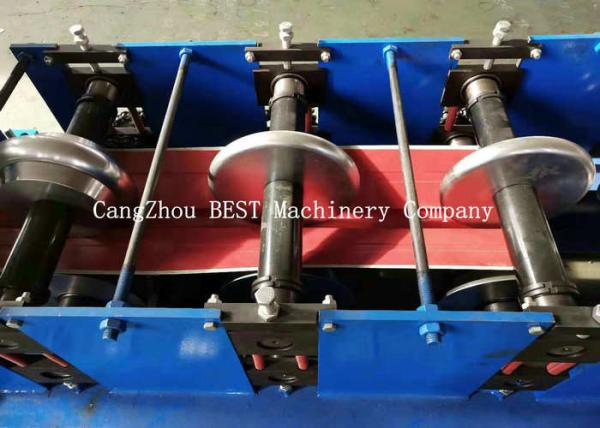

Rollers: 12steps

Material for Rollers: 45# steel polished and coated with chrome HRC55-60℃

Frame panel thickness: 14mm

Bottom frame: 35# H-section steel
Motor Power: 3 kw
Rolling Speed: 8-10 m / min

Driven type: 1.0＂Chain

Diameter of shaft: 70mm

Material for shaft: High grade No.45 steel after treatment Hardness for Heat Treatment: HRC55 – 60℃

Control System

Type: PLC Frequency Control System with touch screen
PLC Brand: Deta
Encoder Brand: Omron

Length Error: ±2mm

Language: English and Chinese

Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

Packing Detall

1

1*40 GP container ; main machine naked and fastened with iron wire in the container.
2 Rollers were painted with oil and packed with plastic film.
3

Electrics devices be packed with wooden box.for Standard export packing.
4

All Components Fixed by steel wire with Container.

Other Product

Roof sheet machine, c z purlin machine,roller shutter door machine, double layer machine, roof tile machine, ceiling drywall machine, cable tray machine,ridge cap machine, water tube machine, water gutter machine, decking sheet machine, sandwich panel machine, highway guardrail machine and so on.
