IBR Metal Glazed Roof Tile Roll Making Forming Machine With High Quality

1. Working Flow:

Decoiler--feeding materil--roll formng--pressing and cutting--output table

2. Parameters:

3. Technology Index

Cutting distance≥150mm

Temperature of the working environment of the production line: 0—40 Celsius

Humidity of the working environment of the production line: 5-85 (No dew)

Working Voltage: Three Phase Voltages 380V (AC)

Working Environment: No corrosive gases, less dust.

Error of Cutting Distance of Glazed Tile: ±1-2mm

The main description

Roll Forming Machine: CLASIC

Control System: PLC

Un-coiler:

UnCoiler : 5 ton manual

Decoiling Holder: 2200mm×1620mm×1700mm

inside diameter of the uncoiler: 510-610mm

Roll forming machine:

Color Steel Sheet Thickness: Color Sheet 0.3~0.8mm

Color Steel Sheet width: 1220mm

Roller Stations: about 16 stations

Way Of Drive: 1.2 inch single chain

The speed of the roll forming machine: 5-6m/min

Roller Material: 45# forge steel, coated with chrome

Shaft Material and DIA: 76mm, material is 45# forge steel

Maim Motor Power: 7.5kw

Error of Cutting Distance of Glazed Tile: ±1-2mm

Roll Forming Machine: 8700mm×1622mm×1400mm

Roll Forming Machine: 8000kg

Press parts

Type Hydraulic

Hydraulic Station Power: 5.5kw

Size of the press parts: 2000*1800*1500mm

Cutting parts

Type Hydraulic

Max. cutting thickness: 1mm

Hydraulic Station Power: 5.5kw

Automatic Hydraulic Cutting Machine: 400mm×1500mm×1100mm

Material Of Cutting: Cr12Mov quenching 58-62℃

Automatic Hydraulic Cutting Machine: 400kg

Passive Out table

Size of the out table: 2000*1350*1000mm, two pieces

4. Our service:

Terms of payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.

Delivery: 10 days after receipt of advance payment.

Service: we sent technician to your country to fix the machine.

The buyer should bear all the cost including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary 200 USD/day.

Warranty: 12 months limited warranty

During warranty: parts are free but buyer pay the shipping fee.

5. Summary

1). To design and make the best roll forming machine, we took EUROPEAN quality standard;

2). Choose the best material and components, and adopting our 17+ years experience;

3). We achieves that the machine capacity is double of the competitors;

4). The machine working speed can be 60m/min;

5). Very easy to install and operate the roll forming machine.

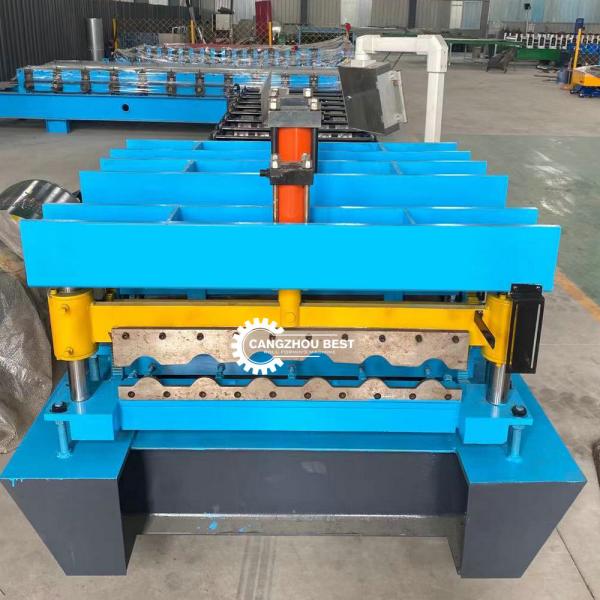

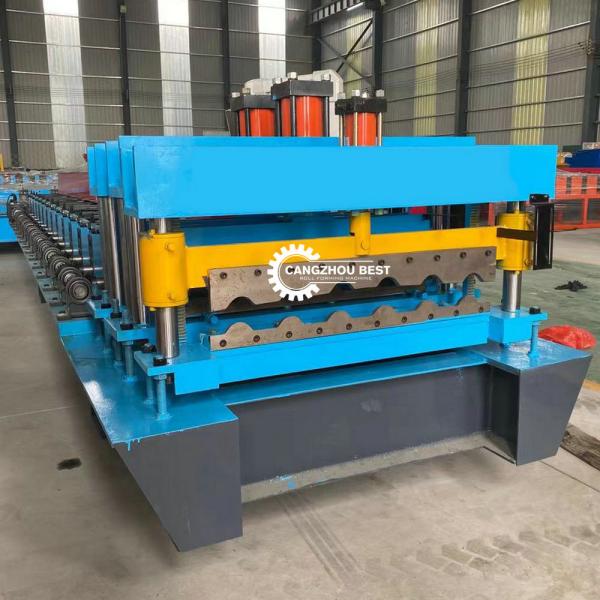

6. Machine photos:
