Aluminium Corrugated Metal Glazed Tile Roll Forming Machine
Aluminium Corrugated Metal Glazed Tile Roll Forming Machine
Aluminium Corrugated Metal Glazed Tile Roll Forming Machine
Aluminium Corrugated Metal Glazed Tile Roll Forming Machine
Aluminium Corrugated Metal Glazed Tile Roll Forming Machine
Aluminium Corrugated Metal Glazed Tile Roll Forming Machine
Aluminium Corrugated Metal Glazed Tile Roll Forming Machine
Aluminium Corrugated Metal Glazed Tile Roll Forming Machine
Specifications
Brand Name :
CHBEST
Model Number :
YX-800/1000
Certification :
CE,BV,SGS
Place of Origin :
Hebei,China
MOQ :
1set
Price :
USD8500-25500/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20sets/month
Delivery Time :
5-60days
Packaging Details :
20GP/40GP container
Name :
High Quality Aluminium Corrugated Metal Glazed Tile Roofing Forming Making Machine
Usage :
Buidling
Marketing Type :
New Product 2020
Voltage :
380v
Speed :
8-12m/min
Key Selling Points :
Long Service Life
Way of Drive :
1.0 inch single chain
Tile Type :
Steel
Control system :
PLC control
Description

High Quality Aluminium Corrugated Metal Glazed Tile Roofing Forming Making Machine

1. Working Flow:

Decoiler--feeding materil--roll formng--pressing and cutting--output table

2. Component:

COMPONENT FOR Roof Sheet Glazed Tiles Roll Forming Machine
Name
Quantity
Units
Decoiler
1
Set
Main Machine
Feeding device
1
Set
Roll forming system
1
Set
Cut Equipment
1
Set
Hydraulic system
1
Set
Electric control system
1
Set
Supporter/Automatic Stacker
1
Set

3. Technique parameters

1.Suitable material Color steel sheet , galvanized steel sheet,aluminum sheet
2.Installation Dimension (L*W*H): 6.5m*1.5m*1.4m(depend on design)
3.Main motor power 3KW ~4KW with Cycloidal reducer
4.Hydraulic station power 3KW ~4KW
5. Hydraulic oil pump CB-E 310
6.Thickness of material 0.2mm~0.8mm
7.Diameter of principal axis Φ70-90mm
8.Material expand width 1000,1200,1250mm
9.Electric tension 380V 3phase 50HZ or as the customer's requirements
10.Material of roller High grade 45# forged steel plated with hard chrome plating
11.Controlling system PLC
12.Processing speed 3-6m/min
13.Processing precision within 1.00mm (depend on design)
14.Material of cutting blade Cr12 mould steel with quenched treatment
15.Kind of drive 0.6 inch chain link bearing model 6210
16.Roller station 8-20 Rollers
17.Roller material high grade 45#steel; Cr12 quenching
18. Leak frame load-bearing 4.6T

4. Our service:

1. we can produce the special machine,send your drawing to us,we can design for you.

2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.

3. we provide a one-year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.

The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.

4. engineers available to service machinery overseas.

5. if you come to visit our factory,we can book the room for you, car pick up to send.

Thanks for visiting our products, if you have interest, pls leave your message, or you can contact us, special design is available!

The real data, the most professional foreign trade team, your best trustable partner.

5. Why choose us?
1.We can make and design all kinds of roll forming machine according to customer’s requests.
2.This is a very perfect and durable equipment. We have more than 20 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.

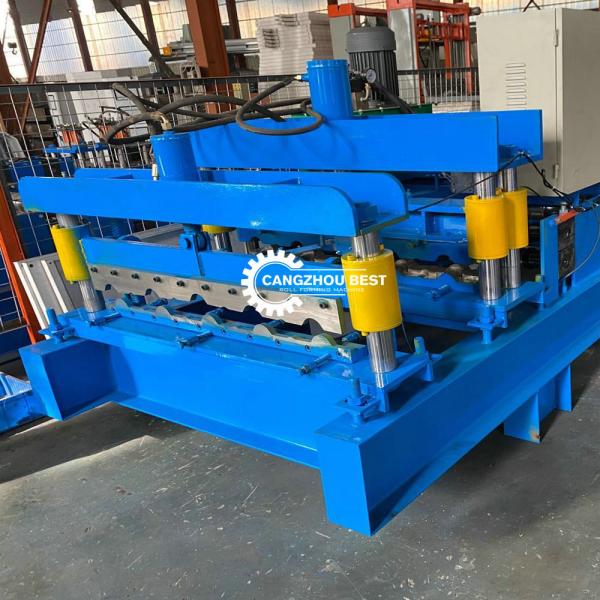

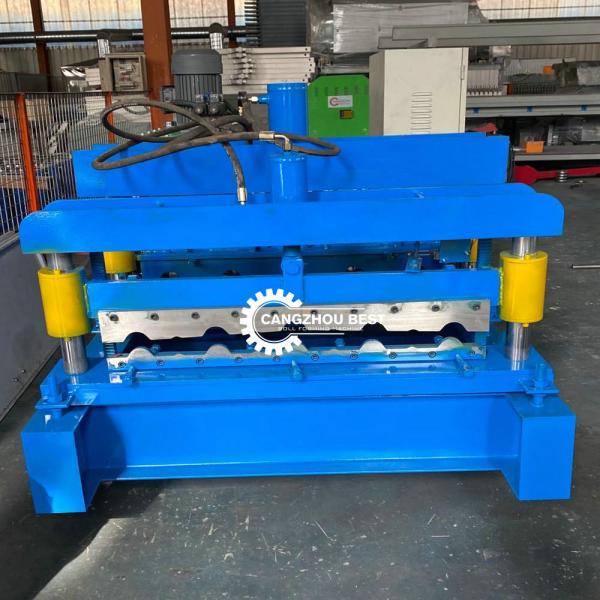

6. Machine photos:

Aluminium Corrugated Metal Glazed Tile Roll Forming Machine
