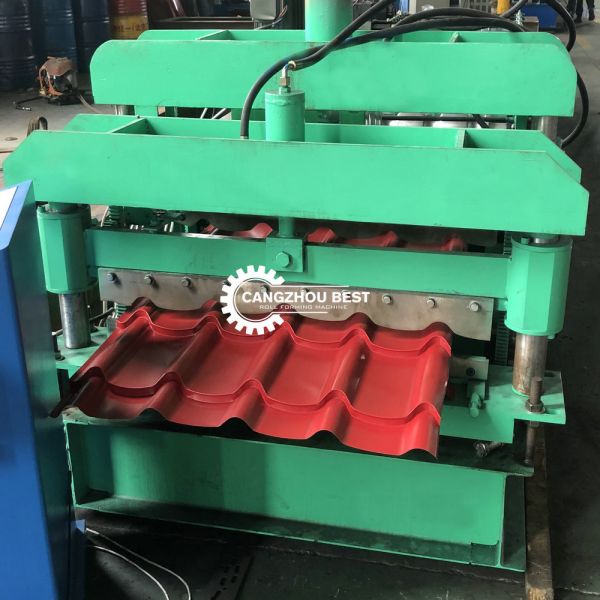

Steel Metal Glazed 6m/min Roof Tile Roll Forming Machine For House
Steel Metal Glazed 6m/min Roof Tile Roll Forming Machine For House
Steel Metal Glazed 6m/min Roof Tile Roll Forming Machine For House
Steel Metal Glazed 6m/min Roof Tile Roll Forming Machine For House
Steel Metal Glazed 6m/min Roof Tile Roll Forming Machine For House
Steel Metal Glazed 6m/min Roof Tile Roll Forming Machine For House
Specifications
Brand Name :
CHBEST
Model Number :
XY28-207-1035
Certification :
CE,BV,ISO9001;2008
Place of Origin :
Hebei, China
MOQ :
1 set
Supply Ability :
20 sets/month
Delivery Time :
20-30 days
Packaging Details :
plastic film for naked machine
Product name :
Steel Glazed Roofing Sheet Building Materials Tile Making Machine
Condition :
New
Machine speed :
4-6m/min
Decoielr :
Manual or Automatic
Driven system :
Chain or gear box
Control system :
PLC
Payment :
TT/LC
Tile Type :
Color Steel
Description

Steel Glazed Roofing Sheet Building Materials Tile Making Machine For House

1. Main features of Glazed Tile roll forming machine

The advantages of Glazed Tile machine are as follows:

1. Low cost, light weight but high strength, short building period, and re-cycle use

2. Save material , no waste.

3. Easy operation, low maintenance cost

4. Infinite sizing(any size within machine range),help to save material

5. Optional Punch hole at any position of purlin web side and flange side

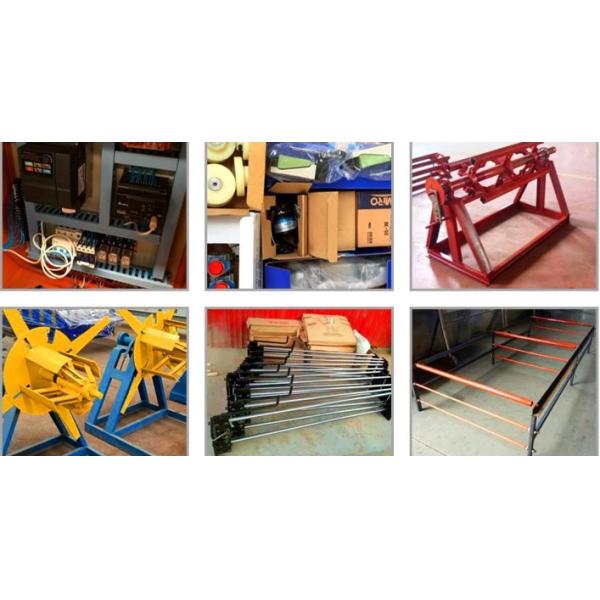

2. Machine components

No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Pressing Device 1 Set
4. Hydraulic Cutting Device 1 Set
5. PLC Control Box 1 Set
6. Hydraulic Pump 1 Set
7. Stacker 1 Set

3. Specifications:

1
Suitable to process
Color alu-zinc steel coil
2
Roller
14Rows
3
Dimensions
7.2*1.5*1.6m
4
Motor Power
5.5Kw
5
Pump Station Motor
4Kw.Lichao Brand
6
Thickness of the plate
0.3-0.8mm
7
Productivity
3-5m/min
8
Material of the cutting blade
Cr12,Quenched treatment 58℃-60℃
9
Diameter of the roller
Φ70mm
10
Weight
About 4200kgs
11
Main structure of the machine
350H beams
12
Processing precision
Within 1.0mm
13
Side panel of machine
16mm
14
Chain Wheel and Cycle Chain
1 Inch
15
Voltage
380V 50Hz 3phases or as customer's need
16
Control system
PLC control (Delta)
17
Frequency system
Delta
18
Drive mode
Motor driver
19
Touch screen
Delta
20
Rolling materials
45# forging steel with chromium plate
21
Length Tolerance
±2mm

4. What makes BEST glazed tile making machine is different with other?

1. Each hydraulic part, we will use two hydraulic jack to make sure the shearing more poweful.

2. We use the pillar post as the shearing pole, it can add oil more easily.

3. All the rollers we will use the hard chroming, to make sure not damage the surface of the coil.

4. At the leveling part, we will add the filming system for the tile making machine.

5. And for the leveling part, we will manual cutter, hydraulic cutter or the others.

5. Terms:

Delivery 30days after receive deposite
Package export standard package for container
Payment TT (30% by TT in advance,70% by TT after you inspect machine we need)
Delivery date within 30 working days after receiving deposit
Products Warranty

18months,and we will provide the technical support for whole life of the equipment.

6. Our service:

1. Once we receive your drawing, we will give you some feedback according to our expereince.If there is some mistake in the drawing, we can point it out at the first time.

2. In the production, you can watch the whole prduction by camer if you like.

3. we give 18 month totally free after sale service and whole life tech support.

Photos

If you need roll forming machine, just send me a inquiry, we have many type machines, we can produce according to your requirement.

Steel Metal Glazed 6m/min Roof Tile Roll Forming Machine For House

Steel Metal Glazed 6m/min Roof Tile Roll Forming Machine For House
